ITW Dynatec BF Mod-Plus Optima Hot Melt Adhesive Applicator

Product catalog summary

Introduction
The document provides an overview of the Dynatec BF MOD-PLUS OPTIMA Applicator, highlighting its innovative features and specifications for adhesive application solutions.

Key Features

Innovative Self-Cleaning Nozzle: This feature eliminates adhesive stringing and reduces production downtime.
Internal Heated Filter: Allows filter changes without the need to remove hoses, enhancing convenience and efficiency.
Durazite™ Seals: These seals offer an extremely long operating life, contributing to the durability of the applicator.
High-Speed Adhesive Valve: Ensures precise adhesive placement for optimal application results.
Air Open / Air Closed Design: Provides uniform adhesive patterns, improving application consistency.

Specifications

Maximum On/Off Cycle Speed: 5,000 cycles per minute.
Pneumatic Pressure: Minimum 74 psi (5 bar), maximum 125 psi (9 bar).
Adhesive Pressure: Minimum 600 psi (41 bar), maximum 1,000 psi (68 bar), with at least 27 bar (400 psi) required for valve operation.
Maximum Operating Temperature: 200˚C / 390˚F.
Note: Specifications are based on 1,000 cps adhesive.

Contact Information

Americas: ITW Dynatec, Hendersonville, TN, USA. Phone: 615-824-3634, 1-800-860-6150. Fax: 615-264-5248.
Asia and Pacific: ITW Dynatec K.K., Tokyo, Japan. Phone: 81-3-3450-5901. Fax: 81-3-3450-8405.
Europe, Africa, and Middle East: ITW Dynatec GmbH, Mettmann, Germany. Phone: 49-210-4915-0. Fax: 49-2104-915-111. Email: [email protected].

Catalog excerpts

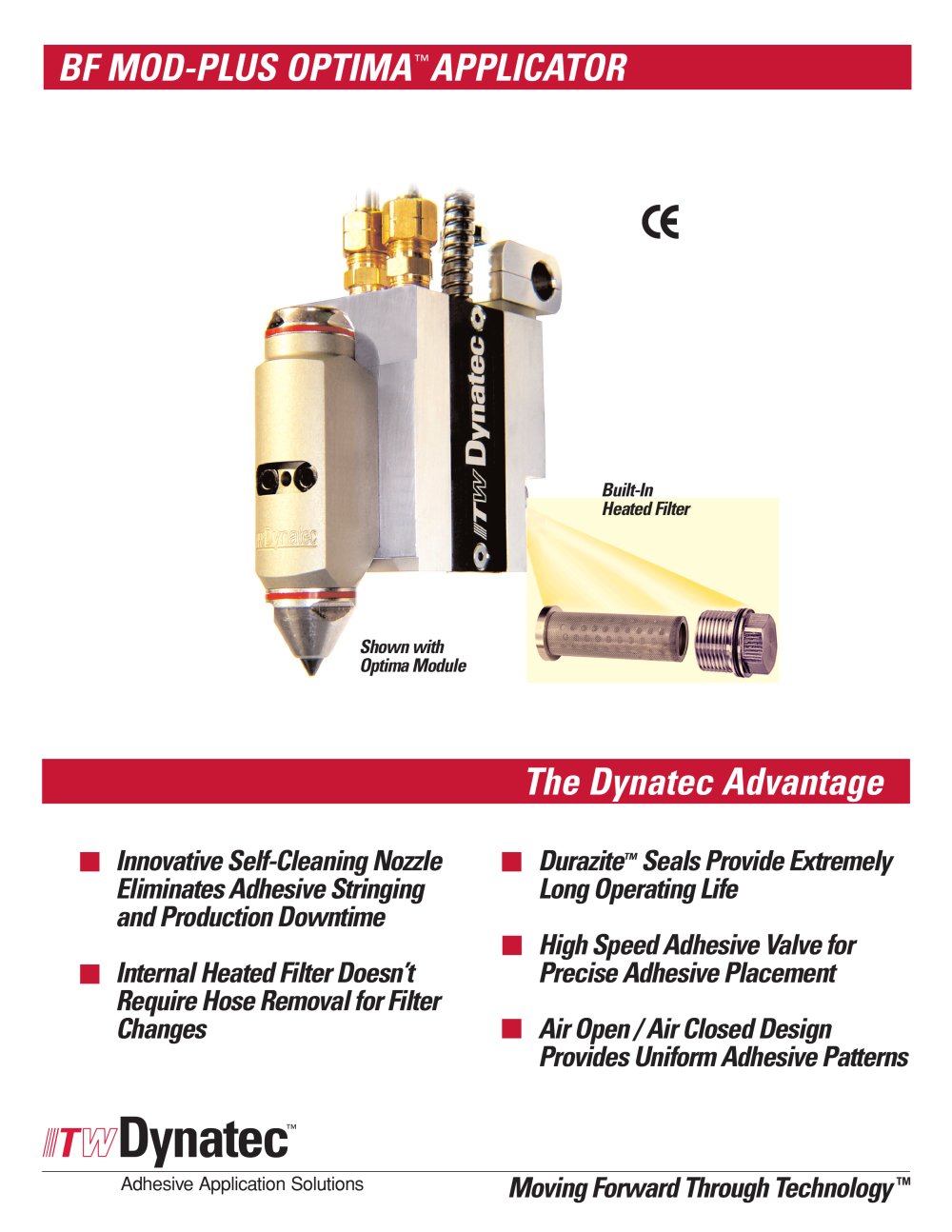

ITW Dynatec BF Mod-Plus Optima Hot Melt Adhesive Applicator-1

Built-In Heated Filter Shown withOptima Module Innovative Self-Cleaning NozzleEliminates Adhesive Stringing and Production DowntimeInternal Heated Filter DoesnْtRequire Hose Removal for Filter ChangesDurazite ■■■■ > Seals Provide ExtremelyLong Operating LifeHigh Speed Adhesive Valve forPrecise Adhesive PlacementAir Open / Air Closed DesignProvides Uniform Adhesive Patterns ٢֠ > Adhesive Application Solutions Moving Forward Through Technology > TM size="-3">

Open the catalog to page 1

ITW Dynatec BF Mod-Plus Optima Hot Melt Adhesive Applicator-2

ITW Dynatec31 Volunteer DriveHendersonville, TN 37075 Telephone 615ٕ8243634 1Օ800860Օ6150Fax 615264Օ5248 ITW Dynatec K.K.Daiwashinagawa Bldg.,7-15, Konan, 3-Chome Minato-Ku, Tokyo 108-0075 Japan Telephone 813Օ34505901Fax 81Օ33450Օ8405 ITW Dynatec GmbHIndustriestrasse 28D-40822 Mettmann, Germany Telephone 49210Օ49150 Fax 49Օ2104915Օ[email protected] > ISO 9001REGISTERED FIRM size="-1">
