ITW Dynatec BF Mod-Plus Marathon Hot Melt Adhesive Applicator

Product catalog summary

The Dynatec Advantage
Dynatec offers advanced adhesive application solutions with the BF MOD-PLUS MARATHON APPLICATOR, featuring the Marathon Module for enhanced performance.

Key Features

High Speed Adhesive Valve: Ensures precise adhesive placement.
Internal Heated Filter: Virtually eliminates plugged nozzles and allows filter changes without hose removal.
Durazite™ Seals: Provide an extremely long operating life, with a duty cycle exceeding current technology by five times.
Air Open/Air Closed Design: Offers uniform adhesive patterns.

Specifications

Adhesive Viscosity: 100 cps minimum / 20,000 cps maximum.
Maximum On/Off Cycle Speed: 5,000 cycles per minute.
Maximum Operating Temperature: 200˚C / 390˚F.
Pneumatic Pressure: 74 psi (5 bar) minimum / 125 psi (9 bar) maximum.
Adhesive Pressure: 100 psi (7 bar) minimum / 1,000 psi (68 bar) maximum.

Note: Specifications are based on 1,000 cps adhesive.

Contact Information

Americas: ITW Dynatec, 31 Volunteer Drive, Hendersonville, TN 37075, USA. Phone: 615-824-3634, 1-800-860-6150. Fax: 615-264-5248.
Asia and Pacific: ITW Dynatec K.K., Daiwashinagawa Bldg., 7-15, Konan, 3-Chome, Minato-Ku, Tokyo 108-0075, Japan. Phone: 81-3-3450-5901. Fax: 81-3-3450-8405.
Europe, Africa, and Middle East: ITW Dynatec GmbH, Industriestrasse 28, D-40822 Mettmann, Germany. Phone: 49-210-4915-0. Fax: 49-210-491-5111. Email: [email protected].

Certifications

ISO 9001 Registered Firm

Catalog excerpts

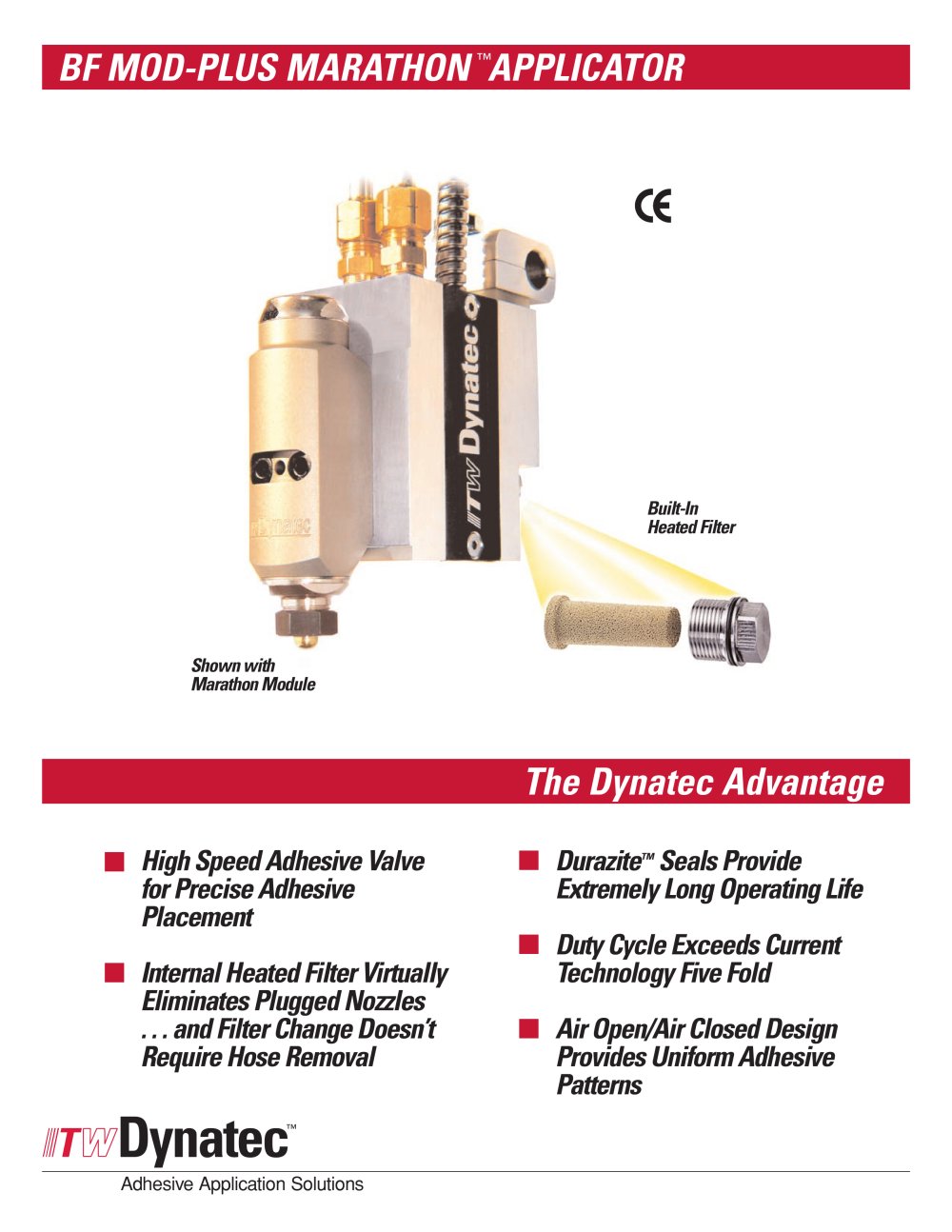

ITW Dynatec BF Mod-Plus Marathon Hot Melt Adhesive Applicator-1

Built-In Heated Filter Shown withMarathon Module High Speed Adhesive Valvefor Precise Adhesive PlacementInternal Heated Filter VirtuallyEliminates Plugged Nozzles . . . and Filter Change Doesnْt Require Hose RemovalDurazite ■■■■ > Seals ProvideExtremely Long Operating LifeDuty Cycle Exceeds CurrentTechnology Five FoldAir Open/Air Closed DesignProvides Uniform Adhesive Patterns ٢֠ > Adhesive Application Solutions size="-1">

Open the catalog to page 1

ITW Dynatec BF Mod-Plus Marathon Hot Melt Adhesive Applicator-2

Shownwith MarathonModule Maximum operating temperature200ًC / 390ڋFPneumatic pressure 74 psi (5 bar)min / 125 psi (9 bar) maxAdhesive pressure 100 psi (7 bar)min / 1,000 psi (68 bar) max ڢ֠■■ Adhesive viscosity 100 cps min /20,000 cps maxMaximum on/off cycle speed 5,000cycles per minute ■ ■ > Note: Specifications are based on 1,000 cps adhesive. itwdynatec.com Adhesive Application Solutions AMERICAS ASIA and PACIFIC EUROPE, AFRICA andMIDDLE EAST ITW Dynatec31 Volunteer DriveHendersonville, TN 37075 Telephone 615ٕ8243634 1Օ800860Օ6150Fax 615264Օ5248 ITW Dynatec K.K.Daiwashinagawa Bldg.,7-15, Konan,...

Open the catalog to page 2
