DY 2008 PATTERN CONTROLLER

DY 2008 PATTERN CONTROLLER

Product catalog summary

Overview: The document provides detailed specifications and features of the Dynatec DY 2008 Pattern Controller, a device used in adhesive application solutions. It highlights the controller's capabilities, modes, and technical specifications.

Key Features:

Supports 4 to 128 channels with 16 patterns per channel.
Includes trigger inputs for each channel and 4 pressure outputs.
Offers 4 scalable machine speed inputs and over-excitation options of 55VDC or 170VDC.
Equipped with a user-friendly menu structure and memory for 60 programs.
Modes include Standard, Continuous, and Random Length, configurable for lines or dots.
Features dedicated shutter control and automatic random length program.
Supports up to 12-point pressure output curves and optional RS 232/RS 485 or Profibus interfaces.
Operates at machine speeds up to 1200m/min (4000fpm) at 0.5mm (.02”).

Specifications:

Electric Input: Voltage options of 115/200/230VAC, 50/60Hz, with a maximum power of 180W for 8 channels.
Outputs: 24VDC voltage per channel, with over-excitation options and power of 20W.
Modes: Various modes per channel including Standard, Dot, Random Length, and Continuous with trigger and speed options.
Pattern Configuration: Head position and pattern length adjustable from 0 to 8000mm, with stitch glue or gap settings.
Memory: Stores up to 60 glue pattern programs in permanent memory.
Stop Function: Configurable glue start and stop speeds, with external input options.
Triggers: Configurable triggers per channel, with master trigger options.
Speed Detection: 4 encoder inputs, scalable, with a maximum speed of 1200m/min.
Pressure Control: 4 pressure outputs, selectable voltage or current options, with pressure curves and purge settings.
Shutter Control: Dedicated output and trigger options, with dwell time settings.
Data Interface: Optional RS 232/RS 485 and Profibus interfaces.
Alarm Outputs: Dry contact outputs for alarm and stop functions.
Size & Weight: Dimensions of 326 x 308 x 150mm and weight of 10.3 Kg for the 8-channel model.

Contact Information:

Americas: ITW Dynatec, Hendersonville, TN, USA.
Europe, Africa, and Middle East: ITW Dynatec GmbH, Mettmann, Germany.
Asia and Pacific: ITW Dynatec K.K., Tokyo, Japan.

Catalog excerpts

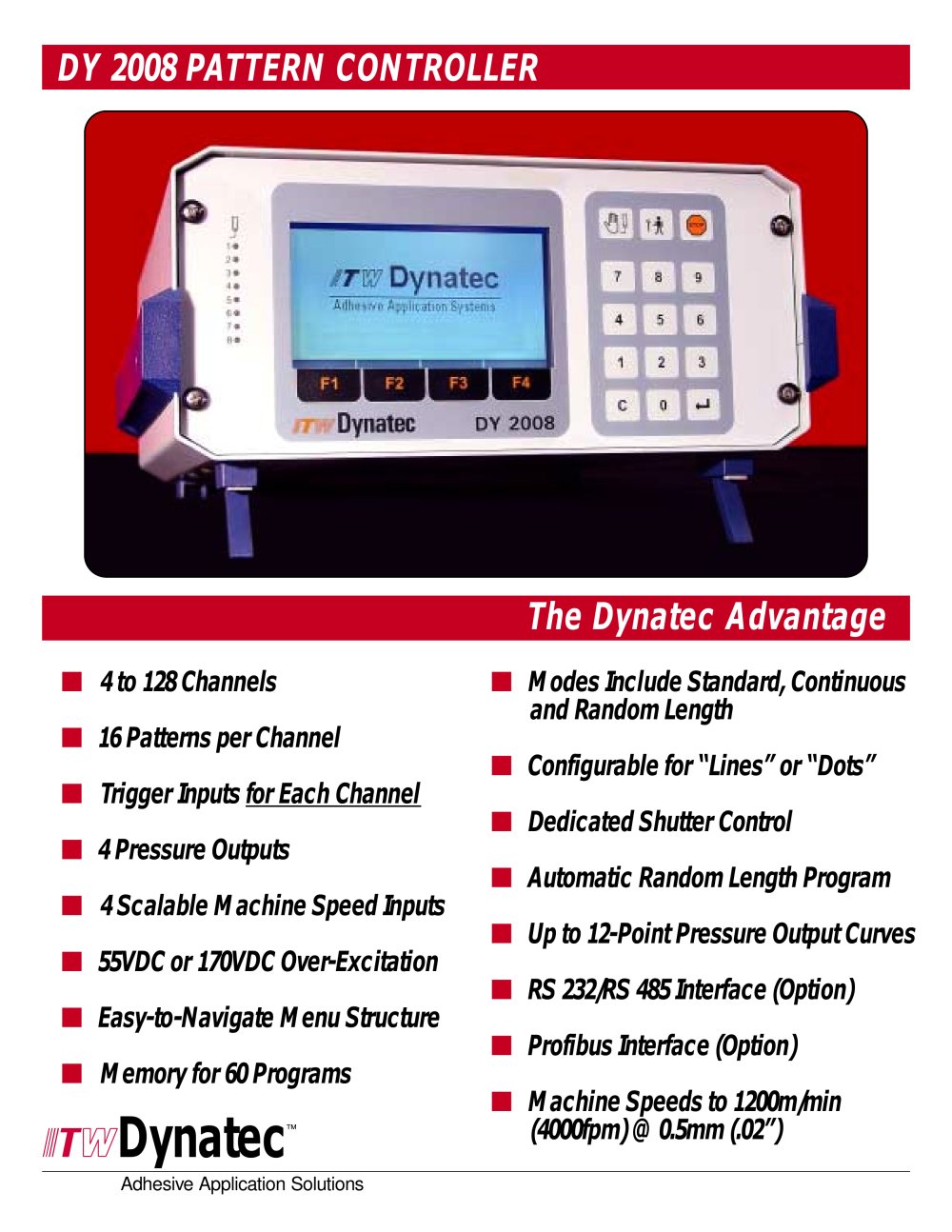

4 to 128 Channels Modes Include Standard, Continuousand Random Length 16 Patterns per Channel Configurable for LinesӔ or DotsӔ Trigger Inputs for Each Channel Dedicated Shutter Control 4 Pressure Outputs Automatic Random Length Program 4 Scalable Machine Speed Inputs Up to 12-Point Pressure Output Curves 55VDC or 170VDC Over-Excitation RS 232/RS 485 Interface (Option) Easy-to-Navigate Menu Structure Profibus Interface (Option) Memory for 60 Programs Machine Speeds to 1200m/min(4000fpm) @ 0.5mm (.02) > ԙ Adhesive Application Solutions size="-1">
