ITW Dynatec
Adhesive Feeder

Adhesive Feeder

Product catalog summary

Overview

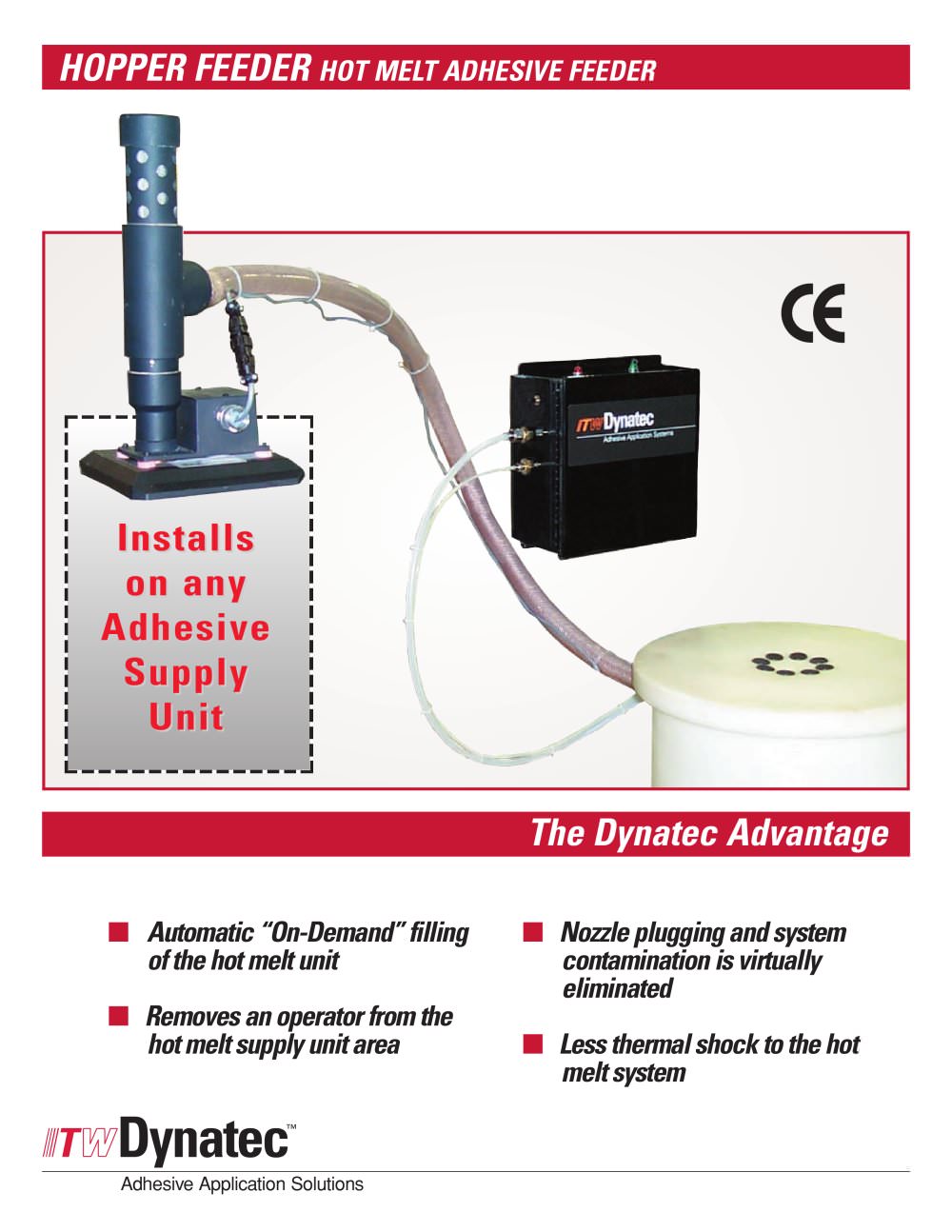

The document outlines the features and advantages of the Dynatec Adhesive Application Solutions, specifically focusing on the automatic "On-Demand" filling system for hot melt adhesive units. This system is designed to enhance efficiency and reduce manual intervention in adhesive supply processes.

Key Features

Automatic filling of hot melt units, reducing the need for operator presence.
Minimizes nozzle plugging and system contamination.
Reduces thermal shock to the hot melt system.

Advantages of the Hot Melt Adhesive Feeder

Utilizes a positive pressure system to maintain a contamination-free adhesive system without the need for filter replacements.
Capable of feeding adhesive to hot melt units up to 100 feet horizontally and 22 feet vertically.
Allows easy visual inspection of the adhesive unit without disassembly.

Operation Description

A low-level indicator in the adhesive supply unit triggers a valve in the control box, signaling the need for adhesive.
The system uses compressed air to create positive pressure, lifting and transporting adhesive to the hot melt unit.
Once the unit is full, a signal is sent to stop the adhesive transfer.
Electrical controls are located remotely, and an adjustable alarm alerts personnel to any feeding issues.

Contact Information
Contact details for ITW Dynatec offices in the Americas, Europe, Africa, the Middle East, Asia, and the Pacific are provided for further inquiries.
