Zoccoli per Relè 8 /11-pin > Type ZRV

Product catalog summary

Product Overview
Zoccoli per Relè Type ZRV are screw terminal sockets designed for use with 8/11-pin plug-in relays, specifically models C42 & C43. These sockets can be mounted directly on a panel or via a DIN-46377 Omega rail. They feature large self-rising screws suitable for multi-lead wiring and can accommodate ring-type high-quality terminations, meeting sophisticated safety and quality standards such as those required in military, railway, and security applications. A metal retaining clip is available upon request.

Specifications

Rating: 10A - 250V AC
Insulating resistance: > 1,000 Mohm
Dielectric strength: 2 KV AC
Temperature range: -40 to +70°C
Max torque: 0.8 Nm
Max wiring section: 2x4 sq.mm (2x12 AWG)
Dimensions: 83x36.5x22h mm
Connections material: Nickel plated brass
Body plastic: Self-extinguishing PPEm
Self-extinguishing classification (UL 94): V1
Enclosure classification (EN 60529): IP 20

Product Variants

ZROV - 8-pin
ZRUV - 11-pin

Approvals and Environmental Compatibility
The product complies with European Directive 2002/95/CE, ensuring environmental compatibility.

Contact Information
ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - Italy
Tel: (+39) 02 6140851
Fax: (+39) 02 6140339
Email: [email protected]
Website: www.rele.it

Catalog excerpts

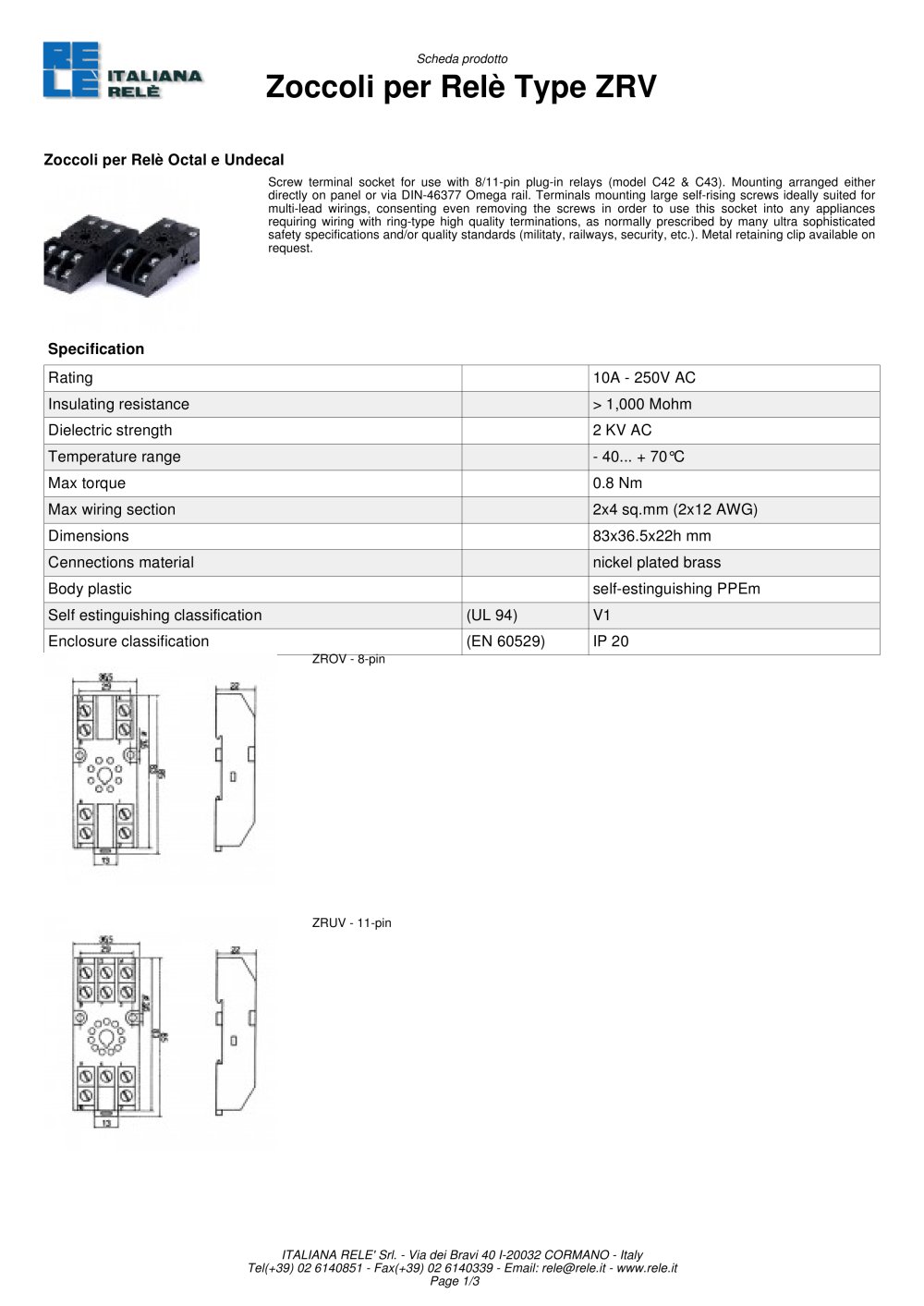

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:14.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:4.00pt "Trebuchet MS", sans-serif; } .font5 { font:9.00pt "Verdana", sans-serif; } .font6 { font:10.00pt "Verdana", sans-serif; } .font7 { font:11.00pt "Verdana", sans-serif; } .font8 { font:15.00pt "Verdana", sans-serif; } .font9 { font:55.00pt "Verdana", sans-serif; } ScfxrtYWDdDfl ■ 1 I ttt vw I ■ ■ ' -1 Rating |10A-250VAC Insulating rթsistance > 1,000 Mohm DJelectric strength 2KVAC Temprature range -40..- + 70°C Max torque 10.8 Nm Max winng section 2x4 sq mm {2x\2 AWG) Dimensions 83x36,5x22h mm Cennections material nickel plated brass Body plastic self-eslinguishing PPEm Self estinguishing classification (UL94) V1 Enclosure classification (EN 60529) IP20 ZRUV-11-cm .- \ t闯AUANA RELE* Sri - Wa rfGf Gravi 40120032 GORMANO ttaty r&(+39) 026f406» - hax(*39) 026140339 Lmarf r©te@retetf wwwMbJ Page 1/3

Open the catalog to page 1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Verdana", sans-serif; } .font1 { font:15.00pt "Verdana", sans-serif; } .font2 { font:26.00pt "Verdana", sans-serif; } Sclteda ptodotto Zoccoli per Rel Type ZRV Approvals tAUANA RELE* Sri - Wa d& Gravi 40120032 GORMANO - Itaty i&(+39) 02 6f 40SM - hax(*39) 02 6140339 Lmarf r©te@retetf www MbJ Page 2/3

Open the catalog to page 2

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Verdana", sans-serif; } .font1 { font:11.00pt "Verdana", sans-serif; } .font2 { font:15.00pt "Verdana", sans-serif; } .font3 { font:26.00pt "Verdana", sans-serif; } Scheda prodotto SUT* Zoccoli per Rel Type ZRV Lnviiof tr Hritai compulibdi詮y (Europen D*ed)ve TOOmst) t錯AUANA RELE* Sri - Wa dm Gravi 40120032 GORMANO - /tory r&(+39) 0261408b1 - hax(*39) 026140339 Lmarf r©te@retetf wwwMbJ Page 33

Open the catalog to page 3
