Zoccoli per Relè 8 /11-pin > Type AZCS

Product catalog summary

Product Overview
Zoccoli per Relè Type AZCS are sockets designed for use with 8/11-pin plug-in relays, specifically models C42 & C43. These sockets are ideal for PCB applications that require easy plug-in serviceability and maintenance.

Specifications

Rating: 10A - 250V AC
Insulating Resistance: Greater than 1,000 Mohm
Dielectric Strength: 2 KV AC
Temperature Range: -40 to +70°C
Connections Material: Tin plated brass
Body Plastic: Self-extinguishing PPEm
Self-extinguishing Classification: UL 94 V1

Models

AZOCS - 8-pin
AZUCS - 11-pin
On request: AZOCS/L - 8-pin (larger diameter), AZUCS/L - 11-pin (larger diameter)

Approvals and Compliance
The product complies with the European Directive 2002/95/CE for environmental compatibility.

Contact Information
ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - Italy
Tel: (+39) 02 6140851 - Fax: (+39) 02 6140339 - Email: [email protected] - Website: www.rele.it

Catalog excerpts

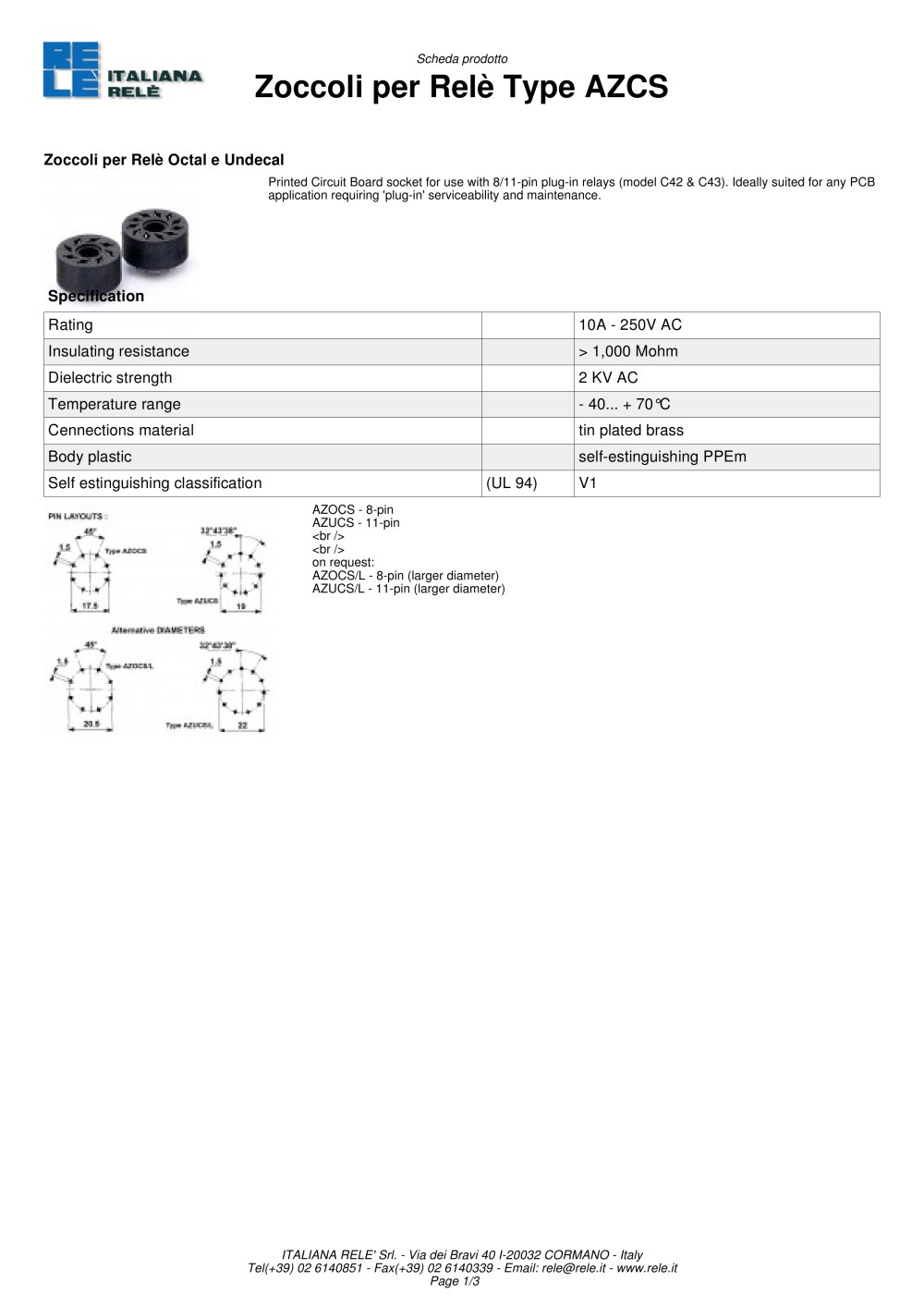

Zoccoli per Relè 8 /11-pin > Type AZCS-1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:73.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:11.00pt "Georgia", serif; } .font4 { font:6.00pt "Verdana", sans-serif; } .font5 { font:9.00pt "Verdana", sans-serif; } .font6 { font:10.00pt "Verdana", sans-serif; } .font7 { font:11.00pt "Verdana", sans-serif; } .font8 { font:15.00pt "Verdana", sans-serif; } - . . . , .;. mW ■ Rating 10A - 250V AC Insulating rsistance > 1,000 Mohm Dielectric strength 2KVAC Temprature range -40...+70'C Cennections material tin plated brass Body plastic self-estinguishing PPEm Self estinguishing classification (UL94) V1 *r4j AZOCS 8 pin fcZUCSH^pin <brf> <tir/> onreques驯 VOCS/L &pin (larger dramctcr) *ZUCSj1_ 11-pin (larocr diamctcf) /V-r 9 I * tAUANA RELE* Sri - Wa rfGf Gravi 40 / 20032 GORMANO ttaty r&(+39) 026f406» - hax(*39) 026140339 Lmarf r©te@retetf mwMbJ Page 1/3

Open the catalog to page 1

Zoccoli per Relè 8 /11-pin > Type AZCS-2

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Verdana", sans-serif; } .font1 { font:15.00pt "Verdana", sans-serif; } .font2 { font:26.00pt "Verdana", sans-serif; } Scheda prodotto Zoccoli per Rel Type AZCS Approvals tAUANA RELE* Sri - Wa d& Gravi 40120032 GORMANO - Itary rol(+39) 02 6f 40SM - hax(*39) 02 6140339 Lmarf r©te@retetf www MbJ Page 2/3

Open the catalog to page 2

Zoccoli per Relè 8 /11-pin > Type AZCS-3

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Verdana", sans-serif; } .font1 { font:15.00pt "Verdana", sans-serif; } .font2 { font:26.00pt "Verdana", sans-serif; } Scheda prodotto jTAUANA ZoccoM per Re! Type A2CS Environmental compiilibriity (Europen Oredive t詯AUANA RELE* Sri - Wa d& Gravi 40120032 GORMANO - ttaty r&(+39) 02 61408b1 - hax(*39) 02 6140339 Lmatt r©te@retetf www MbJ Page 33

Open the catalog to page 3
