Italiana Relè
Relè Miniature Relays > Series E

Relè Miniature Relays > Series E

Product catalog summary

Product Overview
The Series E miniature relays are designed for electronic appliances requiring compact design and low power consumption. They feature a protective dust cover, with an optional hermetically sealed version, and are available in various types with ratings up to 16A. These relays support both AC and DC coil supply voltages and are suitable for printed circuit board mounting.

Specifications

Insulation resistance: >1,000,000 Mohm at 500 VDC
Insulation group: I Group C - 250 VAC
Pollution degree/Insulation voltage: 3 / 250 VAC
Environmental protection: RT I (dust protected)
Enclosure classification: IP40 (washable version IP67)
Mechanical life expectancy: 50 million operations
Max operating frequency: 18,000 ops./hour (no load), 3,600 ops./hour (rated load)
Temperature range: -40 to +70°C (operating), -40 to +80°C (storage)
Vibration and shock resistance: 10 g
Minimum creepage distance/Air gap: 8 mm
Overvoltage class: III
Impulse withstand voltage peak: 10 KV
Type of duty: continuous
Mounting position: any
Weight: 17 grams

Proof Voltage & Times

Coil/contacts: 5,000V RMS
Adjacent contacts: 4,000V RMS
Open contacts: 1,000V RMS
Ground/live parts: 750V RMS
Operate time: max 10 ms
Release time: max 5 ms
Bounces: max 4 ms

Available Types

E31: 10A-250V AC, 3.5 mm pin spacing
E51: 10A-250V AC, 5 mm pin spacing
E52: 5A-250V AC, 5 mm pin spacing
E61: 16A-250V AC, 5 mm pin spacing

Coil Data
Nominal voltages range from 6 to 230 V for both DC and AC. Rated power is 1.4 VA at 50Hz (AC), 1.2 VA at 60Hz (AC), and 0.5 to 0.7 W (DC). The operating range is -15% to +30% for DC and -15% to +10% for AC.

Contact Data

Power rating (AC1): 2,500 VA (E31-51), 1,250 VA (E52), 4,000 VA (E61)
Rated current: 10 A (E31-51), 5 A (E52), 16 A (E61)
Max instantaneous current: 15 A (E31-51), 7 A (E52), 25 A (E61)
Single-phase motor load: 1/3 HP (E31-51), 1/6 HP (E52), 1/2 HP (E61)
Rated voltage: 250 VAC
Max switched voltage: 400 VAC
Minimum voltage: 24 VAC
Minimum switched load: 2.4 W
Minimum switched current: 100 mA
Initial resistance: Max 30 milliohm (E31-51), Max 50 milliohm (E52), Max 15 milliohm (E61)

Environmental Compatibility
Compliant with European Directive 2002/95/CE.

Contact Information
ITALIANA RELE' Srl, Via dei Bravi 40, I-20032 CORMANO, Italy. Tel: (+39) 02 6140851, Fax: (+39) 02 6140339, Email: [email protected], Website: www.rele.it

Catalog excerpts

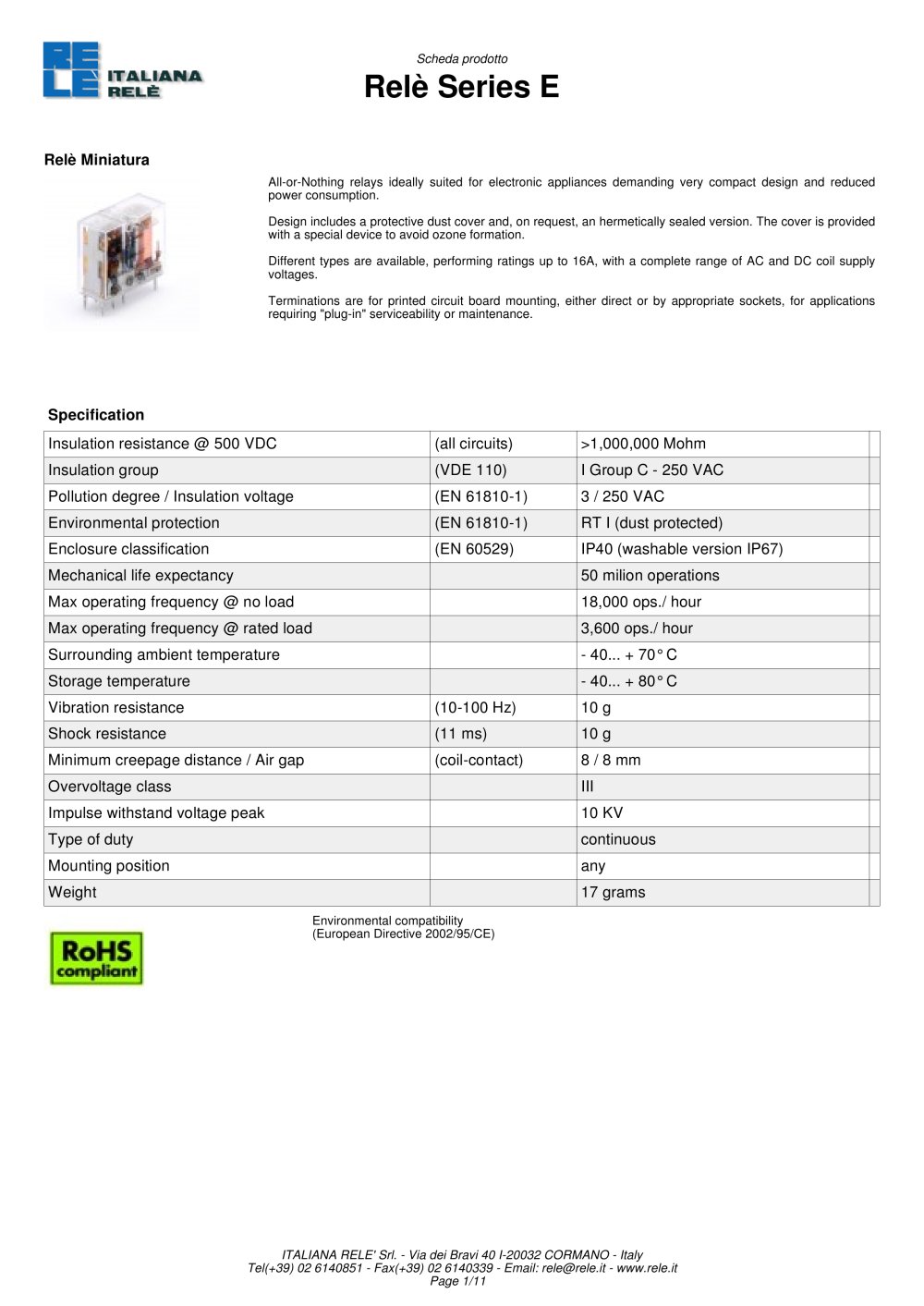

Scheda prodotto Rel Miniatura > All-or-Nothing relays ideally suited for electronic appliances demanding very compact design and reducedpower consumption.Design includes a protective dust cover and, on request, an hermetically sealed version. The cover is providedwith a special device to avoid ozone formation.Different types are available, performing ratings up to 16A, with a complete range of AC and DC coil supplyvoltages.Terminations are for printed circuit board mounting, either direct or by appropriate sockets, for applicationsrequiring "plug-in" serviceability or maintenance. Specification Insulation resistance @ 500 VDC (all circuits) >1,000,000 Mohm Insulation group (VDE 110) I Group C - 250 VAC Pollution degree / Insulation voltage (EN 61810-1) 3 / 250 VAC Environmental protection (EN 61810-1) RT I (dust protected) Enclosure classification (EN 60529) IP40 (washable version IP67) Mechanical life expectancy 50 milion operations Max operating frequency @ no load 18,000 ops./ hour Max operating frequency @ rated load 3,600 ops./ hour Surrounding ambient temperature - 40... + 70訰 C Storage temperature - 40... + 80 C Vibration resistance (10-100 Hz) 10 g Shock resistance (11 ms) 10 g Minimum creepage distance / Air gap (coil-contact) 8 / 8 mm Overvoltage class III Impulse withstand voltage peak 10 KV Type of duty continuous Mounting position any Weight 17 grams > Environmental compatibility (European Directive 2002/95/CE) ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 1/11 size="-1">

Open the catalog to page 1

Scheda prodotto Proof Voltage & Times DIELECTRIC STRENGTH OPERATING TIMES @ Rated Voltage Coil / contacts 5.000V RMS Operate (+ bounces) max 10 milliseconds Adjacnt contacts 4.000V RMS Release (+ bounces) max 5 milliseconds Open contacts 1.000V RMS Bounces max 4 milliseconds Ground / live parts 750V RMS > ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 2/11 size="-1">

Open the catalog to page 2

E31 - 10A-250V AC - 3.5 mm pin spacingE51 - 10A-250V AC - 5 mm pin spacingSingle Pole changeover contactPrinted circuit terminationsStandard contact material Ag-CdO 10%Normally open or gold plated contcts and washable versions available on request for agreed quantities ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 3/11 >

Open the catalog to page 3

E52 - 5A-250V AC - 5 mm pin spacing2 Pole changeover contactsPrinted circuit terminations Standard contact material Ag-CdO 10%Normally open or gold plated contcts and washable versions available on request for agreed quantities ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 4/11 >

Open the catalog to page 4

E61 - 16A-250V AC - 5 mm pin spacingSingle pole changeover contactPrinted circuit terminations Standard contact material Ag-CdO 10%Normally open or gold plated contcts and washable versions available on request for agreed quantities ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 5/11 >

Open the catalog to page 5

Scheda prodotto Coil Data Nominal Voltage Direct Current Alternating Current Current I Resistance R (*) Current I (50Hz) Current I (60Hz) Resistance R (*) V mA ohm mA mA ohm 6 109 55 270 237 12 12 43 280 119 104 56 24 21 1150 57 50 230 48 11 4300 31 27 870 110 7 16200 12 11 5300 230 - - 6 5 25000 (*) Resistance values @ 23 C Tolerance on R and I: +/-10% (15% for voltages > 24V) > Supply voltages:6-12-24-48-110 VDC / 6-12-24-48-110-230 VAC (50/60Hz) Rated power:1.4 VA @ 50Hz (AC) / 1.2 VA @ 60Hz (AC) / 0.5... 0.7 W (DC)Operating range: - 15%... + 30% (DC) / - 15%... + 10% (AC)Minimum hold voltage:>...

Open the catalog to page 6

Scheda prodotto Contact Data E31-51 E52 E61 Power rating (AC1) 2,500 VA 1,250 VA 4,000 VA Rated current (cosphi 1) 10 A 5 A 16 A Max istant. current (*) 15 A 7 A 25 A Single-phase motor load (**) 1/3 HP 1/6 HP 1/2 HP Rated voltage 250 VAC 250 VAC 250 VAC Max switched voltage 400 VAC 400 VAC 400 VAC Minimum voltage 24 VAC 24 VAC 24 VAC Switching power (DC1) see diagram see diagram see diagram Min. switched load 2.4 W 2.4 W 2.4 W Min. switched current 100 mA 100 mA 100 mA Initial resistance (***) Max 30 milliohm Max 50 milliohm Max 15 milliohm Standard material Ag90%-CdO10% Ag90%-CdO10% Ag90%-CdO10%...

Open the catalog to page 7

ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 8/11 >

Open the catalog to page 8

Reduction factor forinductive AC loads ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 9/11 >

Open the catalog to page 9

ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 10/11 >

Open the catalog to page 10

ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 11/11 >

Open the catalog to page 11
