Italiana Relè
Relè Industrial Relays > Series D

Relè Industrial Relays > Series D

Product catalog summary

Product Overview
The Series D relays are high-performance, compact industrial relays with a clear protective dust cover. They offer contact ratings from 6 to 12 Amps, depending on the configuration, with options for up to four pole changeover. Variants include printed circuit and solder/plug-in types, with AC or DC rated coils. A full range of sockets is available for plug-in types.

Specifications

Insulation resistance: >10,000 Mohm at 500 VDC
Insulation group: I Group C (2 pole), I Group B (4 pole) at 250 VAC
Pollution degree/Insulation voltage: 3/250 VAC (2 pole), 2/250 VAC (4 pole)
Environmental protection: RT I (dust protected)
Enclosure classification: IP40
Mechanical life expectancy: 20 million operations
Electrical life expectancy: 100,000 operations
Max operating frequency: 18,000 operations/hour (no load), 1,200 operations/hour (rated load)
Temperature range: -25 to +55°C (AC), -40 to +70°C (DC)
Storage temperature: -40 to +85°C
Vibration resistance: 5g
Shock resistance: 10g (NO), 5g (NC)
Minimum creepage distance: 4 mm (2 pole), 3.2 mm (4 pole)
Minimum insulation clearance: 2.5 mm (2 pole), 1.6 mm (4 pole)
Overvoltage class: III (2 pole), II (4 pole)
Impulse withstand voltage peak: 4 KV (2 pole), 2.5 KV (4 pole)
Type of duty: continuous
Minimum mounting distance on PCB: 5 mm
Max soldering time: 5 sec at 270°C
Mounting position: any
Weight: approximately 35 grams

Environmental Compatibility
Complies with European Directive 2002/95/CE.

Proof Voltage & Times

Dielectric strength: Coil/contacts 2,500V RMS, Adjacent contacts 2,500V RMS, Open contacts 1,500V RMS, Ground/live parts 2,000V RMS
Operating times: Operate max 13 ms, Release max 8 ms, Bounces max 7 ms

Available Types

D2N: 2 pole changeover, 12A-250V AC, plug-in/solder terminals
D2P: 2 pole changeover, 10A-250V AC, printed circuit terminals
D4N: 4 pole changeover, 6A-250V AC, plug-in/solder terminals
D4P: 4 pole changeover, 6A-250V AC, printed circuit terminals
Standard features: Push-to-test & Turn-to-lock button, flag indicator, cadmium-free contact material (Ag-Ni)
Special versions: Gold-plated contacts, LED indicator, ground bolt or fixing tabs available on request

Coil Data

Nominal voltages: 6-12-24-48-110-230 VAC (50-60Hz) / 6-12-24-48-60-110-125-220 VDC
Rated power: 1.6 VA @ 50Hz (AC), 1.4 VA @ 60Hz (AC), 0.9 W (DC)
Operating range: -20% to +10% (DC & AC-50Hz), -15% to +10% (AC-60Hz)
Minimum hold voltage: >80% Vn (AC & DC)
Must release voltage: <20% Vn (AC), <10% Vn (DC)
Thermic insulation class: F (155°C)

Contact Data

Power rating: 3 KVA (D2), 1.5 KVA (D4)
Rated voltage: 250 VAC, Max voltage: 400 VAC
Rated current: 12 A (D2), 6 A (D4)
Switching power (DC1): See diagram
Max instantaneous current: 24 A (D2), 12 A (D4)
Single-phase motor load: 1/3 HP (D2), 1/10 HP (D4)
Standard material: Ag90%-Ni10%

Approvals
Details not specified in the document.

Catalog excerpts

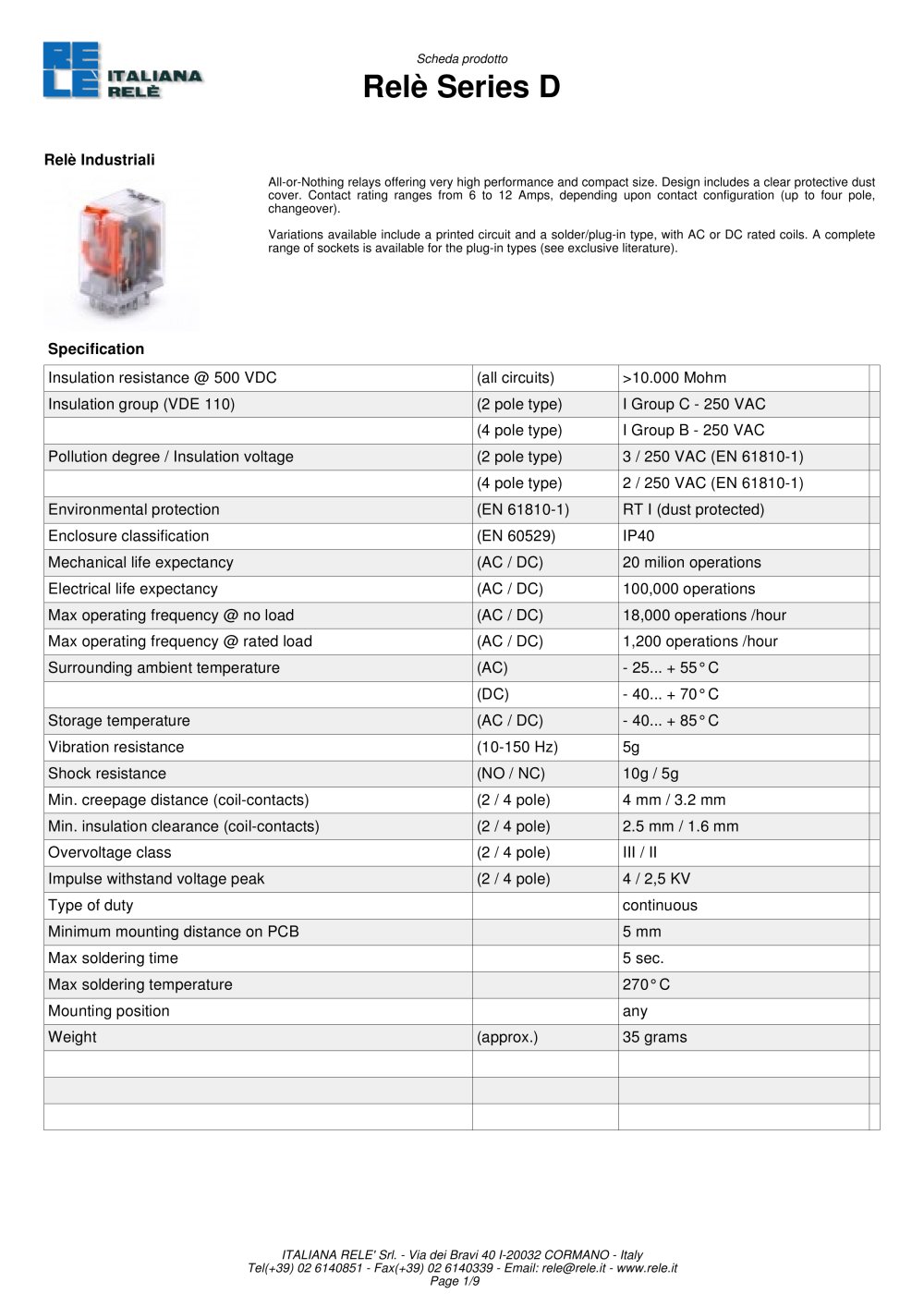

Scheda prodotto Rel Industriali > All-or-Nothing relays offering very high performance and compact size. Design includes a clear protective dustcover. Contact rating ranges from 6 to 12 Amps, depending upon contact configuration (up to four pole,changeover).Variations available include a printed circuit and a solder/plug-in type, with AC or DC rated coils. A completerange of sockets is available for the plug-in types (see exclusive literature). Specification Insulation resistance @ 500 VDC (all circuits) >10.000 Mohm Insulation group (VDE 110) (2 pole type) I Group C - 250 VAC (4 pole type) I Group B - 250 VAC Pollution degree / Insulation voltage (2 pole type) 3 / 250 VAC (EN 61810-1) (4 pole type) 2 / 250 VAC (EN 61810-1) Environmental protection (EN 61810-1) RT I (dust protected) Enclosure classification (EN 60529) IP40 Mechanical life expectancy (AC / DC) 20 milion operations Electrical life expectancy (AC / DC) 100,000 operations Max operating frequency @ no load (AC / DC) 18,000 operations /hour Max operating frequency @ rated load (AC / DC) 1,200 operations /hour Surrounding ambient temperature (AC) - 25... + 55訰 C (DC) - 40... + 70 C Storage temperature (AC / DC) - 40... + 85а C Vibration resistance (10-150 Hz) 5g Shock resistance (NO / NC) 10g / 5g Min. creepage distance (coil-contacts) (2 / 4 pole) 4 mm / 3.2 mm Min. insulation clearance (coil-contacts) (2 / 4 pole) 2.5 mm / 1.6 mm Overvoltage class (2 / 4 pole) III / II Impulse withstand voltage peak (2 / 4 pole) 4 / 2,5 KV Type of duty continuous Minimum mounting distance on PCB 5 mm Max soldering time 5 sec. Max soldering temperature 270 C Mounting position any Weight (approx.) 35 grams > ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 1/9 size="-1">

Open the catalog to page 1

ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 2/9 >

Open the catalog to page 2

Environmental compatibility(European Directive 2002/95/CE) ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 3/9 >

Open the catalog to page 3

Scheda prodotto Proof Voltage & Times DIELECTRIC STRENGTH OPERATING TIMES @ Rated Voltage Coil / contacts 2.500V RMS Operate (+ bounces) max 13 milliseconds Adjacnt contacts 2.500V(*) RMS Release (+ bounces) max 8 milliseconds Open contacts 1.500V RMS Bounces max 7 milliseconds Ground / live parts 2.000V RMS > (*) 4 pole = 2,000V RMS ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 4/9 size="-1">

Open the catalog to page 4

D2N - 2 pole changeover - 12A-250V AC - plug-in/solder terminals (2.2x0.5 mm)D2P - 2 pole changeover - 10A-250V AC - printed circuit terminals (1x0.5 mm)Push-to-test & Turn-to-lock button and flag indicator fitted as standard.Cadmium-free contact material (Ag-Ni).Special versions fitted with gold-plated contacts, LED indicator, ground bolt or fixing tabs available on request for agreed minimum quantities. ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 5/9 >

Open the catalog to page 5

D4N - 4 pole changeover - 6A-250V AC - plug-in/solder terminals (2.2x0.5 mm)D4P - 4 pole changeover - 6A-250V AC - printed circuit terminals (1x0.5 mm)Push-to-test & Turn-to-lock button and flag indicator fitted as standard.Cadmium-free contact material (Ag-Ni).Special versions fitted with gold-plated contacts, LED indicator, ground bolt or fixing tabs available on request for agreed minimum quantities. ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 6/9 >

Open the catalog to page 6

Scheda prodotto Coil Data Nominal Voltage Direct Current Alternating Current Current I Resistance R (*) Current I (50Hz) Current I (60Hz) Resistance R (*) V mA ohm mA mA ohm 6 150 40 260 240 10 12 75 160 130 120 40 24 38 640 65 60 160 48 18 2600 33 30 640 60 15 4000 - - - 110 8,1 13600 14 13 3450 125 7,1 16000 - - - 220 4,1 54000 - - - 230 - - 7 6,5 16100 (*) Resistance values @ 23 C Tolerance on R and I: +/- 10% > Supply voltages:6-12-24-48-110-230 VAC (50-60Hz) / 6-12-24-48-60-110-125-220 VDC Rated power:1.6 VA @ 50Hz (AC) / 1.4 VA @ 60Hz (AC) / 0.9 W (DC)Operating range:- 20%... + 10% (DC...

Open the catalog to page 7

Scheda prodotto Contact Data Power rating (AC1) (tipo D2) 3 KVA (*) Rated voltage 250 VAC (tipo D4) 1.5 KVA Max Voltage 400 VAC Rated current (tipo D2) 12 A (*) Minimum voltage 5 VAC ("Resistance only") (tipo D4) 6 A Switching power (DC1) see diagram Max istant. current (**) (tipo D2) 24 A Min. switched load 300 mW (tipo D4) 12 A Min. switched current 5 mA Single-phase motor load (***) (tipo D2) 1/3 HP Initial resistance (****) Max. 100 milliohm (tipo D4) 1/10 HP Standard material Ag90%-Ni10% > (*) PCB subtype = 10A - 2.5 KVA(**) Maximum admitted time 0.5 seconds - ED = 0.1(***) Cosphi 0.7 -...

Open the catalog to page 8

ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.itPage 9/9 >

Open the catalog to page 9
