The Electromagnets Series PR is designed for applications requiring AC or DC power supply. Constructed with solid iron for both frame and plunger, these solenoids can perform axial pull or push-pull actions and are operable in any position. Coils are insulated with Class F material, and performance is based on an 80°C temperature rise in open air with a 35°C ambient temperature, fed at 105% of rated supply voltage.
Selection Guide
Choosing the appropriate solenoid requires knowledge of the required force, stroke, maximum ON time, minimum OFF time, ambient temperature, and supply voltage. The mechanical energy produced is constant, and any unused force is expended as impact force. It is crucial to select the smallest solenoid that performs the required work without exceeding the maximum working temperature. Duty cycle determination is essential, and AC solenoids require proper seating to avoid overheating. DC solenoids do not have this issue. Load should be applied along the main plunger axis, and stroke-limiting devices should be non-magnetic.
Duty Factor
The duty factor (ED%) is calculated as [Ti / (Ti + Tr)] x 100, where Ti is ON time and Tr is OFF time. The document provides a table of ON and OFF times for intermittently rated coils with standard ED values. For cycles exceeding 300 seconds, a continuously rated solenoid (ED=100) is recommended.
Environmental Compatibility
The product complies with the European Directive 2002/95/CE.
Technical Specifications
- Coil supply voltages: 12-24-110 VDC, 12-24-110-230 VAC (50 or 60 Hz)
- Insulating resistance: > 100 Mohm @ 500 VDC
- Dielectric strength: 2 KV
- Coil terminals: Faston 0.25" or 150 mm long leads
Type-Specific Details
- Type PR1: Total weight: 60 grams, Plunger weight: 10 grams
- Type PR2: Total weight: 100 grams, Plunger weight: 15 grams
- Type PR3: Total weight: 170 grams, Plunger weight: 20 grams
- Type PR4: Total weight: 500 grams, Plunger weight: 70 grams
Each type has specific axial force vs. stroke data for different duty services (ED%). Forces are measured at 90% of rated voltage with a 'hot' coil and 20°C ambient temperature.
Catalog excerpts

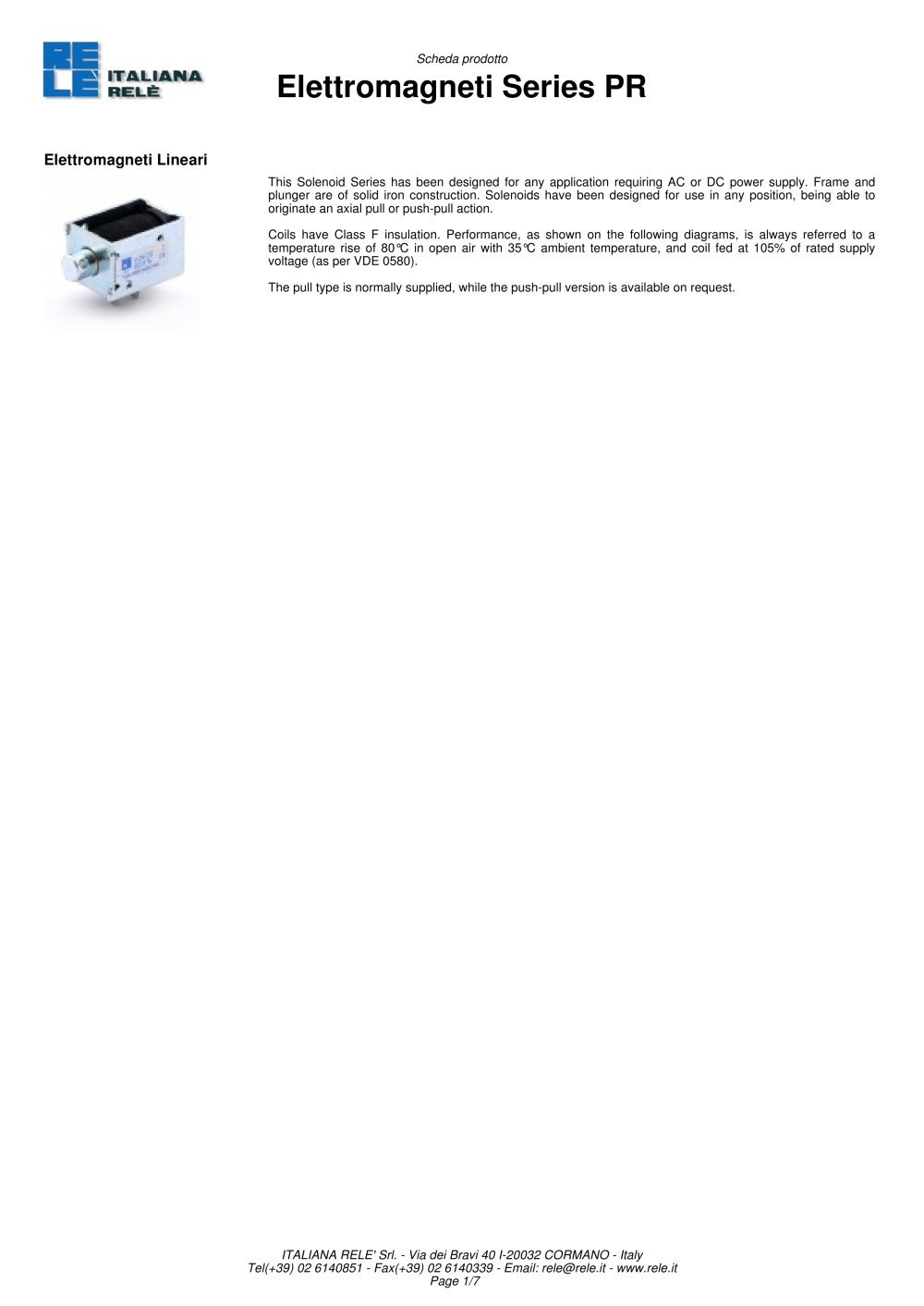

SOUS-TRAITANCE table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:19.00pt "Arial", sans-serif; } Scheda prodotto Elettromagneti Sries PR Elettromagneti Lineari This Solenoid Sries has been designed for any application requiring AC or DC power supply. Frame and plunger are of solid iron construction. Solenoids have been designed for use in any position, being able to originate an axial pull or push-pull action. Coils have Class F insulation. Performance, as shown on the following diagrams, is always referred to a temperature rise of 80°C in open air with 35°C ambient temperature, and coil fed at 105% of rated supply voltage (as per VDE 0580). The pull type is normally supplied, while the push-pull version is available on request. ITALIANA RELE' Sri. - Via dei Bravi 40 I-20032 CORMANO - Italy Tel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: [email protected] - www.rele.it Page 1/7
Open the catalog to page 1
SOUS-TRAITANCE table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:19.00pt "Arial", sans-serif; } Scheda prodotto Elettromagneti Sries PR Slection guide To select the best solenoid suiting your application you must always know the force required, as well as stroke, maximum ON time, minimum OFF time, maximum ambient temperature, and supply voltage. Since the mechanical energy produced by solenoids is constant, any amount of this force eventually unutilised by relevant application...
Open the catalog to page 2
SOUS-TRAITANCE table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:15.00pt "Arial", sans-serif; } .font4 { font:19.00pt "Arial", sans-serif; } .font5 { font:21.00pt "Arial", sans-serif; } Scheda prodotto ■taliana Elettromagneti Sries PR Duty Factor Duty Service (ED%) Oprations per hour Total cycle ED 40 ED 25 ED 15 ED 5 (seconds) ON time OFF time ON time OFF time ON time OFF time ON time OFF time 12 300 120 180 75 225 45 255 15 285 120...
Open the catalog to page 3
SOUS-TRAITANCE table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:19.00pt "Arial", sans-serif; } Scheda prodotto Elettromagneti Sries PR Type PR1 Axial Force Vs. Stroke & Duty Service ED Stroke 1 mm 3 mm 5 mm 8 mm 11 mm 15 mm 100% DC / AC 2.3 / 2.5 N 1 / 1 N 0.5 / 0.7 N - / 0.5 N 40% DC / AC 3.8 / 4 N 2.5 / 2 N 0.7 / 1.5 N 0.5 / 1 N - / 0.5 N 25% DC / AC 5 / 5.5 N 3.5 / 3 N 2.5 / 2 N 0.8 / 1.3 N - / 0.8 N 15% DC / AC 7.5 / - N 6 / 4.5 N 4 / 3 N 1.5 / 2 N 0.6 / 1.2 N - / 0.5 N 5%...
Open the catalog to page 4
SOUS-TRAITANCE table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:19.00pt "Arial", sans-serif; } Scheda prodotto Elettromagneti Sries PR Type PR2 Axial Force Vs. Stroke & Duty Service ED Stroke 3 mm 5 mm 7 mm 10 mm 14 mm 18 mm 100% DC / AC 1.5 / 1.5 N 1.5 / 1 N 0.8 / 0.6 N - / 0.5 N 40% DC / AC 3.5 / 3 N 3.5 / 2.5 N 2.3 / 2.2 N 1 / 1.8 N - / 1.4 N - / 0.5 N 25% DC / AC 5 / 4.5 N 5 / 4 N 4 / 3.5 N 1.8 / 3 N 0.8 / 2 N - / 1 N 15% DC / AC 7.5 / 7.5 N 7 / 5 N 5.5 / 4 N 3 / 3.5 N 1.5...
Open the catalog to page 5
SOUS-TRAITANCE table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:19.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Tahoma", sans-serif; } Scheda prodotto Elettromagneti Sries PR Type PR3 Axial Force Vs. Stroke & Duty Service ED Stroke 3 mm 5 mm 7 mm 10 mm 15 mm 20 mm 100% DC / AC 2 / 2.5 N 2 / 1.7 N 1.5 / 1.4 N 1.2 / 1.2 N 0.3 / 1 N - / 0.5 N 40% DC / AC ; 4.5 / 5 N 4.5 / 4.5 N 3.8 / 3.5 N 3 / 3.3 N 1 / 3 N - / 1.5 N 25% DC / AC 6 / 8.5 N 6 / 7 N 5 / 6 N 4 / 4.5 N 1.5 / 4 N...
Open the catalog to page 6
SOUS-TRAITANCE table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:19.00pt "Arial", sans-serif; } Scheda prodotto Elettromagneti Sries PR Type PR4 Axial Force Vs. Stroke & Duty Service ED Stroke 5 mm 10 mm 15 mm 20 mm 25 mm 30 mm 100% DC / AC 10 / 3 N 10 / 2.6 N 4.5 / 2.4 N 2.2 / 2.2 N 0.8 / 2 N 0.5 / 2 N 40% DC / AC 16 / 6 N 12 / 5 N 9.5 / 4.8 N 5 / 4.5 N 3 / 4.3 N 2.3 / 4 N 25% DC / AC 24 / 9.5 N 20.5 / 8 N 13 / 7,5 N 7.5 / 7 N 5 / 6.5 N 3.5 / 6 N 15% DC / AC 28 / 12.5 N 25 / 9...
