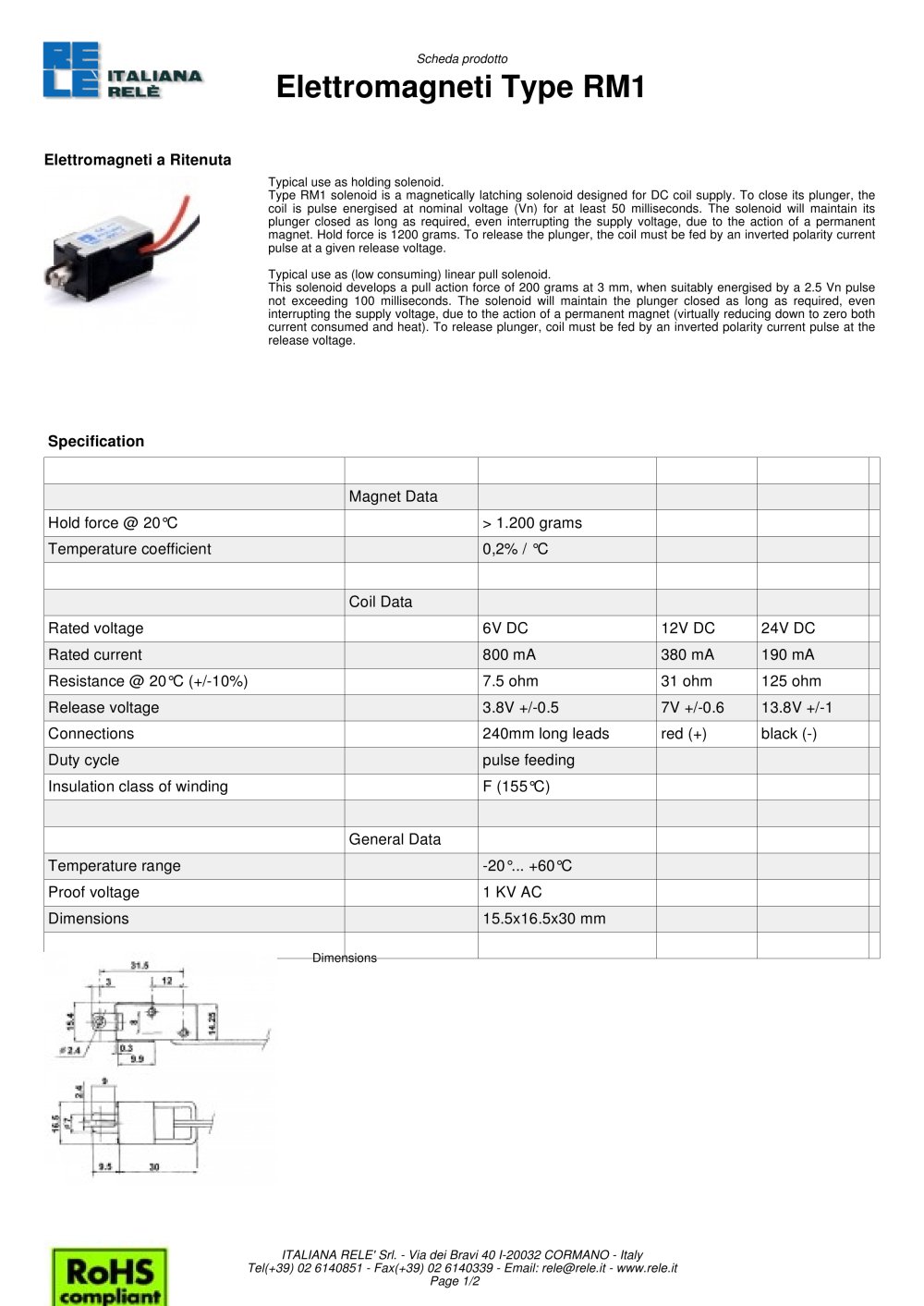

Elettromagneti Latching Solenoids > Type RM1
2Pages

Scheda prodotto Elettromagneti a Ritenuta > Typical use as holding solenoid.Type RM1 solenoid is a magnetically latching solenoid designed for DC coil supply. To close its plunger, thecoil is pulse energised at nominal voltage (Vn) for at least 50 milliseconds. The solenoid will maintain its plunger closed as long as required, even interrupting the supply voltage, due to the action of a permanentmagnet. Hold force is 1200 grams. To release the plunger, the coil must be fed by an inverted polarity currentpulse at a given release voltage.Typical use as (low consuming) linear pull solenoid.This solenoid develops a pull action force of 200 grams at 3 mm, when suitably energised by a 2.5 Vn pulsenot exceeding 100 milliseconds. The solenoid will maintain the plunger closed as long as required, eveninterrupting the supply voltage, due to the action of a permanent magnet (virtually reducing down to zero both current consumed and heat). To release plunger, coil must be fed by an inverted polarity current pulse at therelease voltage. Specification Magnet Data Hold force @ 20C > 1.200 grams Temperature coefficient 0,2% / аC Coil Data Rated voltage 6V DC 12V DC 24V DC Rated current 800 mA 380 mA 190 mA Resistance @ 20C (+/-10%) 7.5 ohm 31 ohm 125 ohm Release voltage 3.8V +/-0.5 7V +/-0.6 13.8V +/-1 Connections 240mm long leads red (+) black (-) Duty cycle pulse feeding Insulation class of winding F (155аC) General Data Temperature range -20... +60аC Proof voltage 1 KV AC Dimensions 15.5x16.5x30 mm > Dimensions ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: rele@rele.it - www.rele.itPage 1/2 size="-1">

Environmental compatibility(European Directive 2002/95/CE) ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: rele@rele.it - www.rele.itPage 2/2 >
