ITALDIBIPACK
Pallet-wrapping lines: ECOSPIRLINE

Pallet-wrapping lines: ECOSPIRLINE

1 / 2 PagesView full catalog

Pallet-wrapping lines: ECOSPIRLINE

Product catalog summary

Technical Specifications

Power Supply: 220/380 V - 3 Ph + N
Maximum Pallet Dimensions: 800x1200 mm / 1000x1200 mm
Maximum Pallet Height: 1800 mm
Maximum Pallet Weight: 1200 kgs
Motorised Chain Conveyor Speed: 10 m/min
Motorised Roller Conveyor Speed: 10 m/min
Output: 20/50 pallets/hour

Features

Automatic pallet-wrapping equipped with a top-pressing unit.
Device integrated in the turntable for synchronized pallet transfer from chain to roller conveyor.
Power pre-stretch system providing up to 70% film economy.
Main control box for operation management.
Optional automatic top covering machine with an antistatic unit to reduce electrostatic charges.
Motorized chain and roller conveyor systems for pallet transfer.
Grilled fence for safety and protection.

Additional Information

Customers can choose from several standard or customized solutions available globally. Technical data may vary without prior notice. The machine is manufactured according to applicable rules.

Catalog excerpts

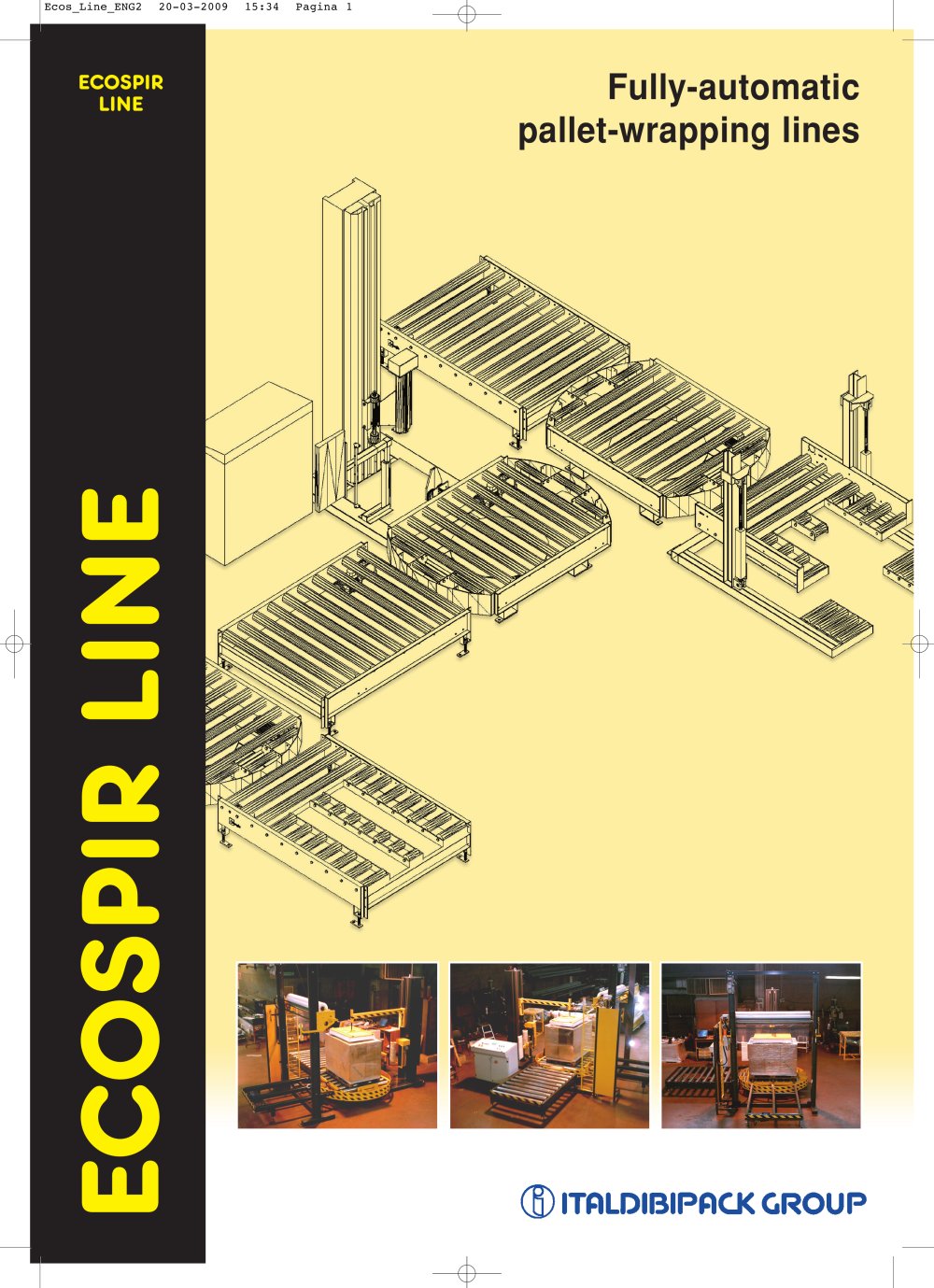

pallet-wrapping lines

Open the catalog to page 1

LAYOUT OF A STANDARDIZED PALLET-WRAPPING LINE A) Automatic pallet-wrapping equipped with top-pressing unit. B) Device integrated in the turntable and synchronized to transfer a pallet from a chain to a roller conveyor. C) Power pre-stretch system granting a film economy up to 70%. E) Automatic top covering machine (on request antistatic unit to reduce electrostatic charges). G) Motorized chain conveyor system for pallet transfer. H) Motorized roller conveyor system for pallet transfer. I) Grilled fence for safety and protection. You can choose your automatic pallet wrapping line among several...

Open the catalog to page 2
