Pallet-wrappers: ECOSPIRMATIC

Pallet-wrappers: ECOSPIRMATIC

Product catalog summary

Specifications
The ECOSPIR MATIC machine operates on a 220 V - 1 Ph - 50/60 Hz - 20 A power supply. It has overall dimensions of 2900x1800x2200 mm and weighs 800 kg. The turntable has a diameter of 1650 mm, and it can accommodate pallets with maximum dimensions of 1000x1200x2000 mm and a weight of up to 2200 kg. The turntable rotation speed is adjustable between 3 and 15 wraps per minute, and the machine can handle a maximum roll width of 500 mm. The output capacity is up to 35 pallets per hour.

Technical Characteristics
The machine is fully electric, eliminating the need for compressed air, and is controlled via a PLC with a touch-screen interface. It features an exclusive cut and clamp device that starts and ends the wrapping cycle at the top of the pallet. Users can select from three wrapping modes: automatic, semi-automatic, and top banding. A photo-eye automatically detects the load height, and the machine allows separate settings for top and bottom wraps, ranging from 1 to 12 revolutions. The turntable speed is variable, with a soft start and stop for precise alignment.

Additional features include a cycle pause for top sheet application, film tension control, and automatic detection of broken or run-out film with machine reset. The film carriage has separate speed controls for raising and lowering, and it offers a 200% pre-stretch capability. Safety features include a carriage descent obstruction shut-off device and an emergency stop button. The machine is designed for heavy-duty use with an automatic stretch-wrapping cycle.

Construction and Safety
The ECOSPIR MATIC is constructed with a metal frame coated in epoxy resin. It includes a visual indicator for machine status (operational, standby, or anomaly) and an emergency stop button for safety. The turntable is integrated into a square platform with 36 support rollers, and rotation is driven by a chain with tension adjustment.

Catalog excerpts

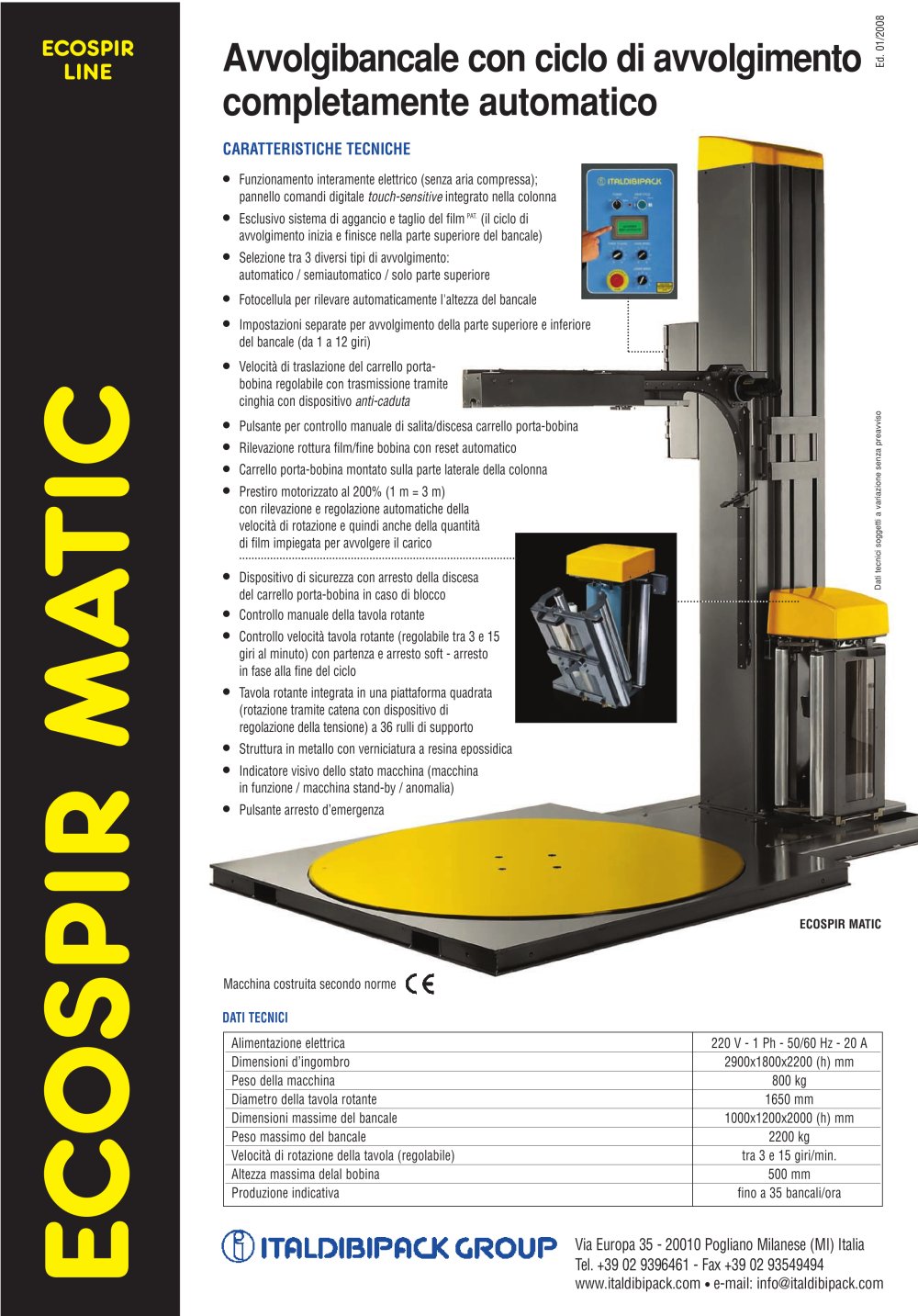

Awolgi conciclod awolgimento ompletamente automatico CARATTERISTICHE TECNICHE Funzionamento interamente elettrico (senza aria compressa); pannello comandi digitale touch-s integrato nella colonna Esclusivo sistema di aggancio e taglio del filmPAT (il ciclo di awolgimento iniziae finisce nella parte superiore del bancale) Selezione tra 3 diversi tipi di awolgimento: automatico / semiautomatico / solo parte superiore Fotocellula per rilevare automaticamente I'altezza del bancale Impostazioni separate per awolgimento della parte superiore e inferiore Velocita di traslazione del carrello porta- bobina regolabile trasmissione tramite cinghiacon dispositivo nti-aduta Pulsante per controllo manuale di salita/discesa carrello porta-bobina Rilevazione rottura film/fine bobinacon reset automatico Carrello porta-bobina montato sulla parte laterale della colonna con rilevazione e regolazione automatiche della velocita di rotazione e quindi anche della quantita di film impiegata per awolgere il carico Dispositivo di sicurezza con arresto della discesa del carrello porta-bobina in caso di blocco Controllo manuale della tavola rotante Controllo velocita tavola rotante (regolabile tra 3 e 15 giri al minuto) con partenza e arresto soft - arresto in fase alia fine del ciclo Tavola rotante integrata in una piattaforma quad rata (rotazione tramite catena con dispositivo di regolazione della tensione) a 36 rulli di supporto Struttura in metallo con verniciatura a resina epossidica Indicatore visivo dello stato macchina (macchina in funzione / macchina stand-by / anomalia) Pulsante arresto d'emergenza ECOSPIR MATIC Macchina costruita secondo norme DATI TECNICI Via Europa 35 - 20010 Pogliano Milanese (Ml) Italia www.italdibipack.com • e-mail: [email protected]

Open the catalog to page 1

Heavy duty turntable machine with automatic stretch-wrapping cycle TECHNICAL CHARACTERISTICS Completely electric working (compressed air is not required) controlled by a PLC, with touch-screen Operator Interface Exclusive cut and clamp device™ (the wrapping cycle starts Selection among three (3) different types of wrapping: automatic / semi-automatic / top banding Photo-eye for the automatic load height detection Separate setting of the top and bottom wraps, from 1 to 12 revolutions; reinforce wrap control for mid-wrapping Variable turntable speed control (adjustable from 3 to 15 rpm), with a...

Open the catalog to page 2
