One-step systems: DIBIPACK BIG

One-step systems: DIBIPACK BIG

1 / 2 PagesView full catalog

One-step systems: DIBIPACK BIG

Product catalog summary

Specifications Overview

DIBIPACK 6084 EV

Power Supply: 380 V - 3 Ph
Maximum Power Required: 7 KW
Overall Machine Dimensions (LxWxH): 1940x950 mm
Working Plate Height (on stand): 920 mm
Machine Weight: 180 kg
Sealing Area (WxL): 600x840 mm
Maximum Product Height: 200 mm
Impulse Sealing System: Bottom blade
Maximum Roll Dimensions: 250x800 mm
Output: 4-6 pcs/min

Features: Simplified heat-shrink wrapping machine designed for increased operational efficiency with only one operator required. Complies with CE standards.

DIBIPACK 85130

Power Supply: 400 V/230 V- 3 Ph
Maximum Power Required: 8 KW
Overall Machine Dimensions (LxWxH): 2700x1500x1400 mm
Working Plate Height (on stand): 900 mm
Machine Weight: 120 kg
Sealing Area (WxL): 850x1300 mm
Maximum Product Height: 250 mm
Impulse Sealing System: Bottom blade
Maximum Roll Dimensions: 250x1200 mm
Output: 4-6 pcs/min

Features: Known as the "Giant" of one-step systems, it includes two hold-down solenoids to keep the hood closed and two fans for better air circulation during shrinking. Complies with CE standards.

Catalog excerpts

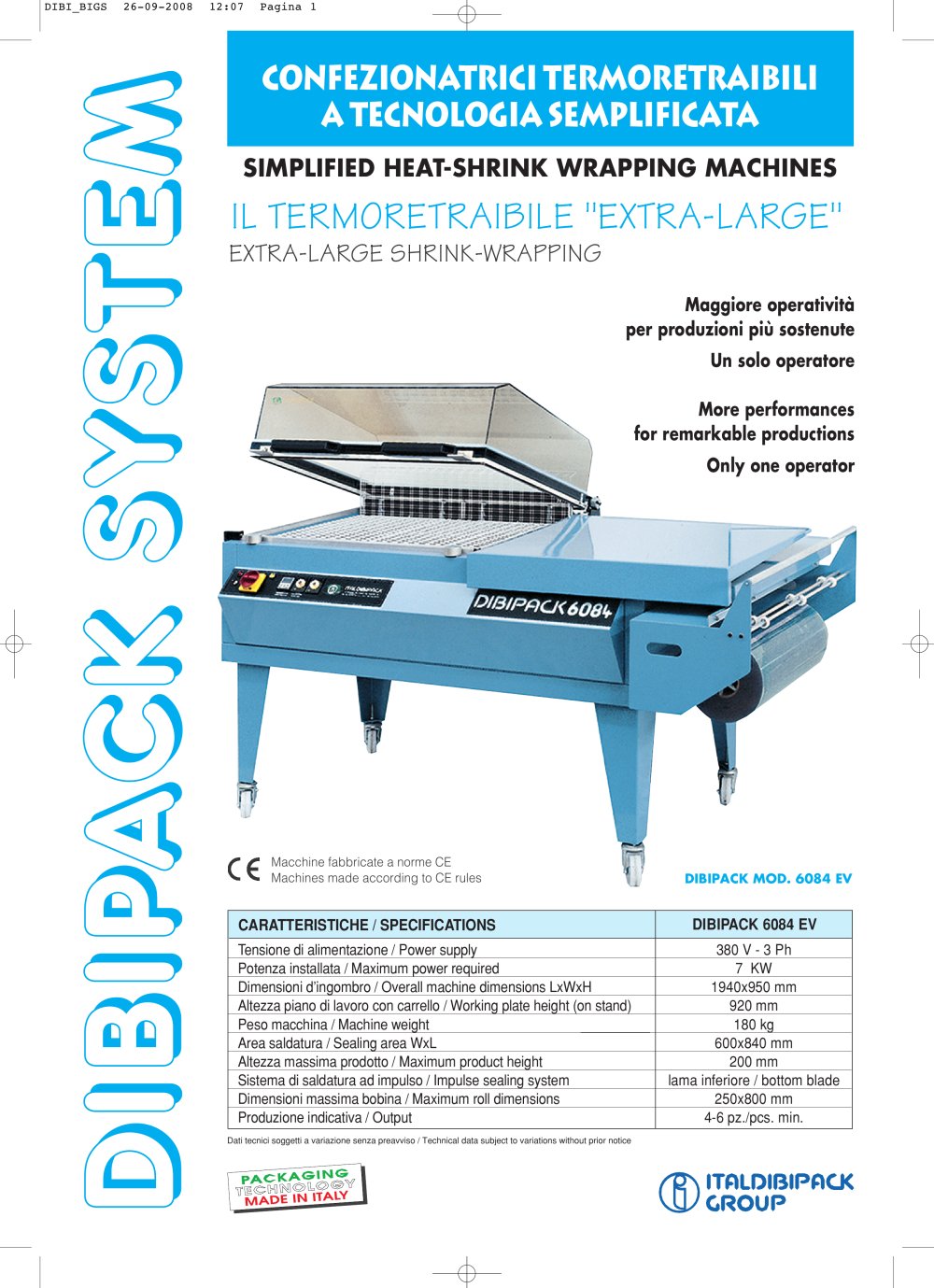

SIMPLIFIED HEAT-SHRINK WRAPPING MACHINES EXTRA-LARGE SHRINK-WRAPPING Maggiore operativitd More performances Macchine fabbricate a norme CE Machines made according to CE rules Dati tecnici soggetti a variazione senza preawiso / Technical data subject to variations without prior notice

Open the catalog to page 1

SIMPLIFIED HEAT-SHRINK WRAPPING MACHINES THE "GIANT" OF ONE-STEP® SYSTEMS Doppio dispositivo magnetico (per tenere chiusa la campana) circolazione dell'aria) Two hold-down solenoids that keep the hood closed during the working cycle and two fans that grant a better circulation of warm air during shrinking Dati tecnici soggetti a variazione senza preavviso / Technical data subject to variations without prior notice Via Europa 35 • 20010 Pogliano Milanese (Ml) Italia http://www.italdibipack.com • e-mail: [email protected]

Open the catalog to page 2
