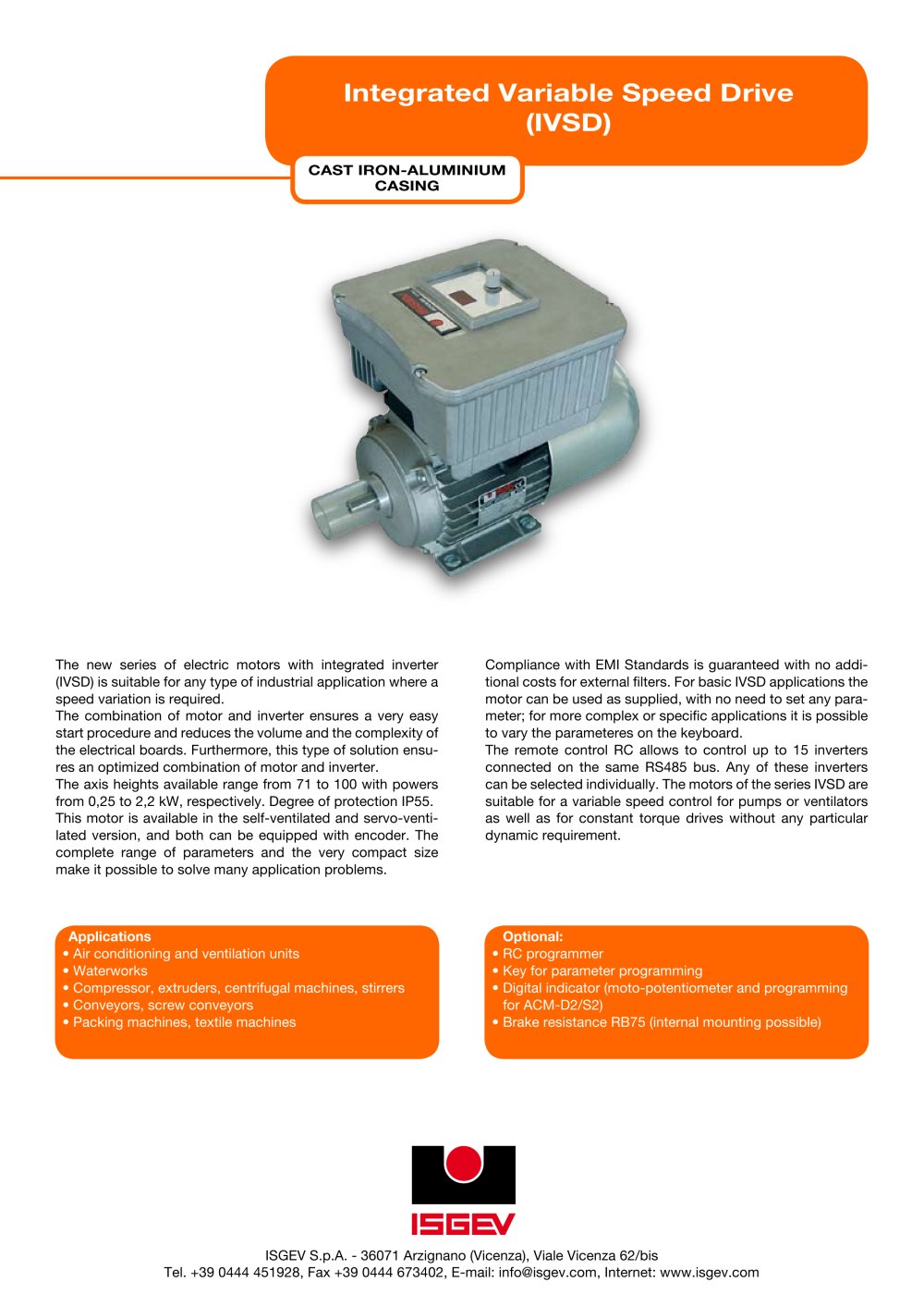

Integrated Variable Speed Drive (IVSD)
Product catalog summary
Overview
The Integrated Variable Speed Drive (IVSD) series features electric motors with integrated inverters, suitable for industrial applications requiring speed variation. This integration simplifies start procedures and reduces the complexity of electrical boards, optimizing motor and inverter combinations.
The Integrated Variable Speed Drive (IVSD) series features electric motors with integrated inverters, suitable for industrial applications requiring speed variation. This integration simplifies start procedures and reduces the complexity of electrical boards, optimizing motor and inverter combinations.
Specifications
- Axis Heights: 71 to 100
- Power Range: 0.25 to 2.2 kW
- Protection Degree: IP55
- Versions: Self-ventilated and servo-ventilated, both can include an encoder
- Compliance: EMI Standards without additional external filters
Technical Features
- Input Supply Voltage: 3 x 380…460V (-15% +10%)
- Supply Frequency: 40…70 Hz
- Rated Power: 0.18 ÷ 2.2 kW
- Overload Capacity: 200% for 180 seconds (±15%)
- Output Voltage: 3 x 0…Uing
- Output Frequency: 0…99 Hz
- Operation Mode: 4 quadrants (with brake chopper)
- Control System: PWM
- Speed Reference: 0…10V dc external potentiometer (4K7), RS485
- Frequency Resolution: 8 Bit on Fmax
- Acceleration/Deceleration Ramp: 0.1 – 1000 sec
- Protections: Undervoltage, overvoltage, short circuit, overload, overtemperature
- Ambient Conditions: Service temperature -5°C to 45°C, storage temperature -20°C to 60°C, humidity <90% RH (without condensate)
Applications
- Air conditioning and ventilation units
- Waterworks
- Compressors, extruders, centrifugal machines, stirrers
- Conveyors, screw conveyors
- Packing machines, textile machines
Optional Features
- RC programmer
- Key for parameter programming
- Digital indicator (moto-potentiometer and programming for ACM-D2/S2)
- Brake resistance RB75 (internal mounting possible)
