ISGEV
3 phase induction brake motors

3 phase induction brake motors

Product catalog summary

Overview: The document provides comprehensive details about the AFT series of self-braking, three-phase induction motors made from cast iron, designed for high reliability and demanding applications. These motors are equipped with a DC-powered disc brake and are derived from the A series.

Specifications: The AFT series motors are constructed entirely with G20 cast iron, ensuring high mechanical strength and effective heat dissipation. They comply with insulation class F (H on request) and have a protection degree of IP55. The motors are CE marked and conform to EN60034 and IEC72 standards.

Features: Notable features include fast brake engagement and release, silent operation (<70dBA), robust mechanical construction, and high operational frequency. The motors have a simple design with few components, and the brake parts are protected by tropicalised galvanising.

Construction Forms: Available in various construction forms, the motors comply with IEC34-1, IEC34-7, IEC34-5, and IEC72 standards. Customers must specify the construction form when ordering.

Options: Optional accessories include a manual release lever, class H insulation, IP56 protection, tropicalisation, overload cutouts, special shafts and flanges, anti-condensation heaters, encoders, servo-ventilation, special lubrication systems, and special painting cycles.

Maintenance and Repairs: Regular inspection of brake parts is necessary. The air gap and braking torque should be adjusted as specified. Wear depends on factors like inertia and motor speed, so no general replacement interval is provided.

Warranty: ISGEV S.p.A. offers a 12-month warranty from the delivery date, covering defects in workmanship or assembly. The warranty excludes natural wear, misuse, or customer tampering. Repairs or replacements must be conducted at the company's facilities, with transportation costs borne by the customer.

Protection and Configuration: The braking unit has a standard protection degree of IP55, with an optional watertight configuration of IP56 for saline and naval environments.

Degrees of Protection: A table lists the number and dimensions of cable glands required for different frame sizes, ranging from Pg 13.5 to Pg 29 for standard glands, and M20 x 1.5 to M40 x 1.5 for optional requests.

Earthing and Connections: Motors are equipped with internal and external earthing connectors. Standard motors support 230/400 or 400/690 Volt 50 Hertz power supply, with other options available on request.

Wiring Diagrams: Several wiring diagrams are provided for brake coils with separate power supplies, detailing configurations for single-speed and two-speed motors, including Dahlander type and separate windings.

Performance Data: Detailed tables provide performance data for various motor types, including power, speed, current, efficiency, and torque characteristics at 400 V 50 Hz. The data covers motors with 2, 4, 6, and 8 poles, and includes brake characteristics such as air gap, static/dynamic torque, and power requirements.

Brake Characteristics: Specifications for brake types, air gaps, static/dynamic torque, and operational times for closing and opening, along with current and power requirements, are included.

Note: The data provided is not legally binding, and the manufacturer reserves the right to modify products without notice.

Main Sections:

Product Versions: Motors are available in both cast iron and aluminum versions, catering to different industrial needs.
Motor Types: Various motor types are listed, including brake motors, explosion-proof motors, servo ventilated motors, and motors designed for extreme temperatures. Specialized motors for marine, railway, and high-speed applications are also mentioned.
Additional Features: Motors can be equipped with features such as integrated inverters, voltage regulators, and soft start capabilities. Options for synchronous reluctance motors and vector motors are available.
Applications: Suitable for a wide range of applications, including synthetic fiber stretching units, motorized spindles, and railway systems.

Contact Information: For further inquiries, ISGEV can be contacted via telephone, fax, or email, with details provided in the document.

Disclaimer: The data presented are not legally binding, and the manufacturer reserves the right to make changes without notice.

Catalog excerpts

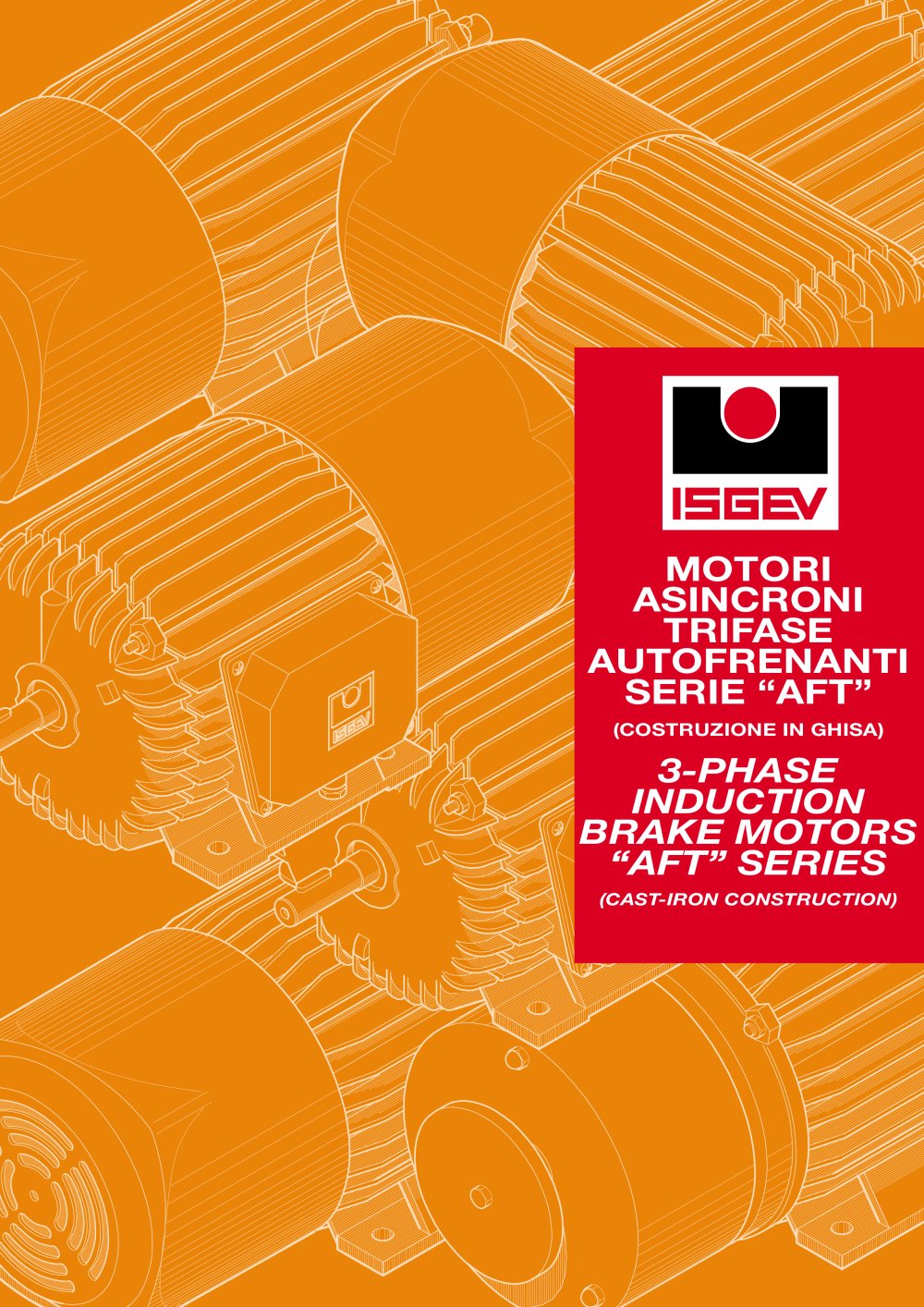

MOTORIASINCRONITRIFASEAUTOFRENANTISERIE AFTӔ > (COSTRUZIONE IN GHISA) 3-PHASEINDUCTIONBRAKE MOTORSAFTӔ SERIES > (CAST-IRON CONSTRUCTION) size="-2">

Open the catalog to page 1

La I.S.G.E.V. S.p.A. garantisce labuona qualit e l'ottima costruzione di tutti i propri motori. Nel caso in cui si manifestino vizi dovuti a difetti dilavorazione o ad imperfettomontaggio, la I.S.G.E.V. si obbliga a riparare o sostituire gratuitamente le parti difettose nel pi breve tempo possibile. Nei casi in cui il vizio sia dovuto a naturale logorio, imperizia del cliente o ad un utilizzo oltre i limiti delle prestazioni nominali e a manomissioni eseguite o fatte eseguire dal cliente, viene a decadere la garanzia. Il periodo di garanzia ๨ di 12 mesi a partire dalla data di consegna ed in...

Open the catalog to page 2

The AFT series motors include all the unified constructionforms and comply with the following standards: ?IEC34-1Electrical operating characteristics?IEC34-7Construction forms?IEC34-5Degrees of mechanical protection ?IEC72Dimensions and power ratings, construction formsB3-B5-B14 and derived configurations.When ordering always indicate the construction form. Available construction forms are indicated in the followingtable Please contact our offices for other configurations, such asflanges, special construction forms, special or double shaft projections and oversized bearings. > La serie di motori...

Open the catalog to page 3

1Albero - Shaft 6Coperchio L.A. - Driving end cover 1.01Cuscinetto L.A. - Driving end bearing 7Coperchio L.O. - Non-driving end cover 1.02Cuscinetto L.O. - Non-driving end bearing 7.02Anello seeger arresto cuscinetto - Bearing retention circlip 1.04Anello seeger arresto cuscinetto - Bearing retention circlip 1.05Anello di tenuta L.A. (a richista) - 8Calotta copriventola - Fan cover Seal Ring (on request) 9Ventola - Fan 1.06Anello di tenuta L.O. (a richista) - Seal Ring (on request) 9.01Fascetta fissaggio ventola - Fan fastening clamp 1.07Linguetta - Key 10Tirante - Tie-rod 1.09Molla di compensazione...

Open the catalog to page 4

Optional accessories include:?Manual release lever ?Class H insulation ?Degree of protection IP56 ?Tropicalisation ?Overload cutouts?Special shaft and flange?Anti-condensation heaters ?Encoder or speedometer dynamo?Servo-ventilation?Lubrication systems with special greases and bearings ?Special painting cycles for particular operatingenvironments?Rear axis output ?Condensation drain holes > Come accessori opzionali possibile avere:?Leva di sblocco manuale ?Isolamento in classe H?Grado di protezione IP56?Tropicalizzazione ?Termoprotettori?Albero e flangia speciale?Scaldiglie anticondensa ?Encoder...

Open the catalog to page 5

Before carrying out any operation on the brake, cut off thepower supply and, if the brake has been operating for a fewhours, wait until the surfaces have cooled down. The airgap is adjusted using the registers (1) after having loosenedthe fastening screws (2) . Before starting to use the brake,make sure that the screws are firmly tightened in the support flange. Before using the brake, it is important to adjust the braking torque based on the data indicated in the followingtables (BRAKE CHARACTERISTICS). To adjust the brakingtorque, use the ring nut (3) , which engages the torquesprings (4) ....

Open the catalog to page 6

Normally, motors are available with degree of protectionIP55. On request, the braking unit can be supplied in thewatertight configuration (see fig.A) with degree of protection IP56, which is particularly suitable for saline environmentsand naval applications. > Di norma i motori sono disponibili con grado di protezioneIP55. Su richiesta viene fornito il gruppo frenante in esecuzione stagna (vedi fig.A), con grado di protezioneIP56, particolarmente indicato per ambienti salini e impiegonavale. 7 > Nella tabella sono riportati il numero di pressacavi e ladimensione del cavo di passaggio. The number...

Open the catalog to page 7

ALIMENTATORE AP o APR ALIMENTATORE AP o APR SUPPLIER AP OR APR SUPPLIER AP OR APR W2U2V2U1V1W1RST W2U2V2U1V1W1RST +- ROSSO - RED +- ROSSO - RED BOBINA FRENO BOBINA FRENO BRAKE WINDING BRAKE WINDING NERO - BLACK NERO - BLACK ALIMENTAZIONE SEPARATA 230 Volt/50 - 60 Hz ALIMENTAZIONE SEPARATA 230 Volt/50 - 60 Hz LINEA - SUPPLY SEPARATE POWER SUPPLY 230 Volt/50 - 60 Hz LINEA - SUPPLY SEPARATE POWER SUPPLY 230 Volt/50 - 60 Hz > BOBINA FRENO BOBINA FRENO BRAKE WINDING BRAKE WINDING > ALIMENTAZIONE SEPARATA 230 Volt/50 - 60 Hz ALIMENTAZIONE SEPARATA 230 Volt/50 - 60 Hz > SEPARATE POWER SUPPLY 230 Volt/50...

Open the catalog to page 8

- 05/02 www.stp.it MOTORI AUTOFRENANTI MOTORI AUTOFRENANTI - Navale 3-PHASE INDUCTION MOTORS BRAKE MOTORS BRAKE MOTORS - Marine EXPLOSION PROOF MOTORS MOTORI ASINCRONI TRIFASE MOTORI ANTIDEFLAGRANTI MOTORI TEMPERATURE ESTREME SERVO VENTILATED MOTORS EXTREME TEMPERATUR MOTORS MOTORI SERVOVENTILATI MOTORI APPLICAZIONI FERROVIARIE MOTORE ALTA VELOCIT RAILWAY MOTORS HIGH-SPEED MOTORS UNIT DI STIRO PER FIBRESINTETICHE MOTORI SINCRONI A RILUTTANZA STRETCHING UNITS MOTORI FUSI MOTORIZZATI > GRUPPI CONVERTITORE - CONVERTER UNITS SYNCHRONOUS RELUCTANCE MOTORS MOTORISED SPINDLE MOTORS > REGOLATORE DI TENSIONE...

Open the catalog to page 19
