3-link heavy duty arm robot
3-link heavy duty arm robot
- Excellent structural rigidity and precision.
- Maximum reliability with a Mean Time Between Failures (MTBF) of over 70,000 operating hours.
- Compatible with ISO 1 clean-room environments.
- Available with absolute or incremental encoders.
- Seamless integration with Prealigner, linear track, and other peripherals.
- Type: 3-link heavy-duty arm robot.
- Repeatability: T ±0.02°, R ±0.02 mm, Z ±0.02 mm.
- Working Range: Z options of 10", 13", 17"; radial options of 16", 21", 24", 28"; theta range of 450°.
- Payload Capacity: Up to 3 kg, depending on arm configuration.
- Maximum Speed: T 360°/s, R 1,000 mm/s, Z 450 mm/s.
- Power Supply: 115 – 230 VAC, 50 – 60 Hz, 550 VA (ADVANCED).
- Main Interface: Ethernet [RJ-45], RS-232 [DB9].
- Weight: Approximately 25 – 32 kg.
Catalog excerpts

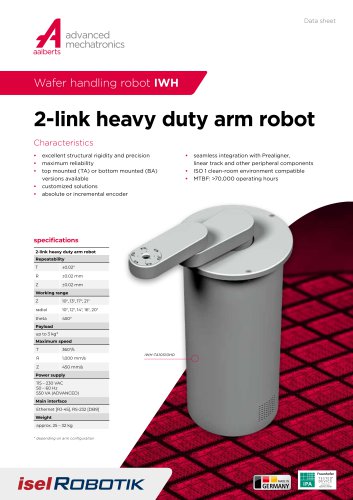

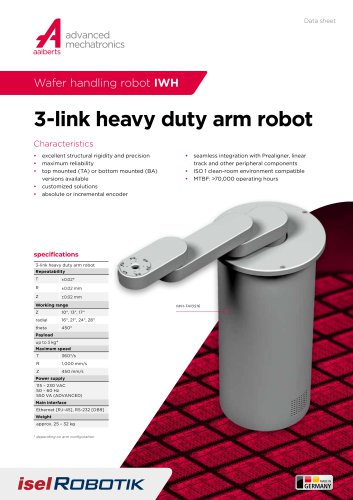

Data sheet Wafer handling robot IWH excellent structural rigidity and precision maximum reliability top mounted (TA) or bottom mounted (BA) versions available customized solutions absolute or incremental encoder seamless integration with Prealigner, linear track and other peripheral components ISO 1 clean-room environment compatible MTBF: >70,000 operating hours 3-link heavy duty arm robot Working range Maximum speed Power supply Main interface
Open the catalog to page 1
isel Germany GmbH / Robotics Department / Sachsenweg 8 / 36132 Eiterfeld / Germany +49 (0) 66 59 981 - 500 / [email protected] / www.iselrobotik.com ©isel Germany GmbH. Technical changes reserved. The current terms and conditions of the company isel Germany GmbH shall apply. Status february 2026 IWH 3-link heavy duty arm robot
Open the catalog to page 2All Isel Germany catalogs and technical brochures
Wafer handling robot IWH2 Pages

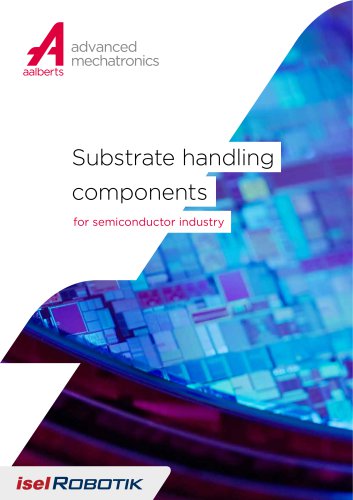

Substrate handling components36 Pages

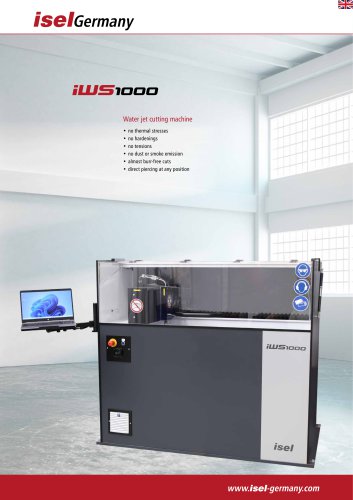

iWS 10004 Pages

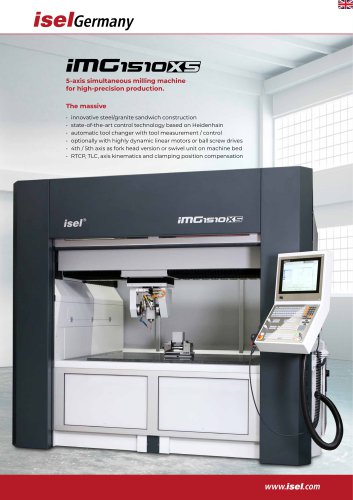

iMG 1510X54 Pages
iBL 45254 Pages
PREMIUM 50304 Pages
Spindle Motors36 Pages
FB24 Pages
iCV 4030EC4 Pages
EuroMod®4 Pages
OverHead®4 Pages

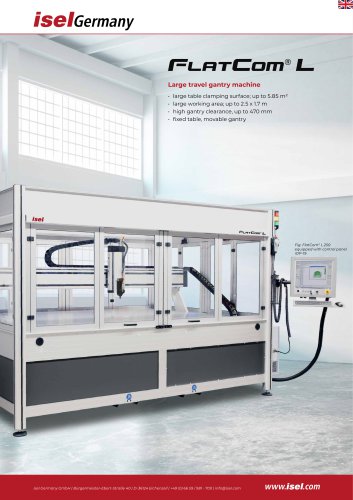

FlatCom® L4 Pages
img10104 Pages

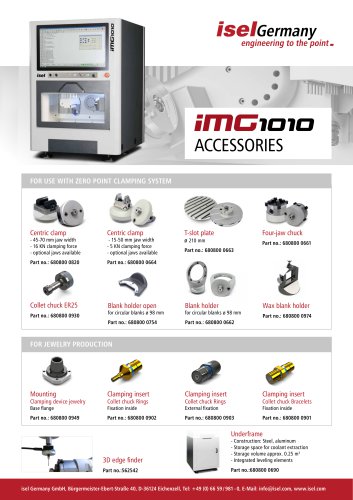

img1010 ACCESSORIES1 Page
