Partial Discharge Analysis - Model PDA Premium

Partial Discharge Analysis - Model PDA Premium

Partial Discharge Analysis - Model PDA Premium

Product catalog summary
Introduction
The document introduces the PDA Premium, a portable partial discharge (PD) analyzer by ADWEL International Ltd. It highlights the evolution from the original PDA-H model, emphasizing the combination of proven reliability with modern communication and digital capabilities.

Key Features
  • Ease of Use: The PDA Premium is designed for user-friendly operation with plug-and-play hardware and streamlined software.
  • Comprehensive Outputs: It provides high-resolution graphical and numerical PD test results.
  • Industry Standards: Recommended by manufacturers and standards like IEEE std. 1434-2000.
  • Compatibility: Compatible with previous PD analyzers and various PD couplers.
  • Versatility: Suitable for hydro and turbo generators, as well as motors.

Technical Specifications
  • Inputs: Six BNC 50 Ohm connectors.
  • Dynamic Range: ± 16mV to ± 6400mV.
  • Noise Separation: Based on pulse shape and arrival times.
  • Bandwidth: Tuned for capturing PD pulses as narrow as 2.3ns.
  • Data Acquisition: 20 seconds per phase with RS232 or USB communication ports.
  • Dimensions and Weight: 43 X 41 X 16cm, 9kg.
  • Power Supply: Universal AC and DC options.
  • Operating Platform: Compatible with Windows 2000 and XP.

Advanced Features
  • Phase-Resolved Test Results: Offers 3D test results with 120 phase angle windows for high-resolution analysis.
  • Data Trending: The software supports superimposing unlimited 2D or 3D graphs for qualitative and quantitative analysis.

Additional Products and Services
  • COPA: A comprehensive continuous PD system.
  • STB: An economical continuous PD monitor.
  • Couplers: Offers a range of capacitive couplers with wide voltage ranges.
  • Services: Custom installation, supervision, training, and expert analysis of PDA test results.

Contact Information
ADWEL International Ltd. provides contact details for their head office in Canada and European office in the UK.

Conclusion
The PDA Premium is positioned as a leading PD analyzer in the market, combining ease of use, comprehensive features, and compatibility with industry standards.
See more

Catalog excerpts

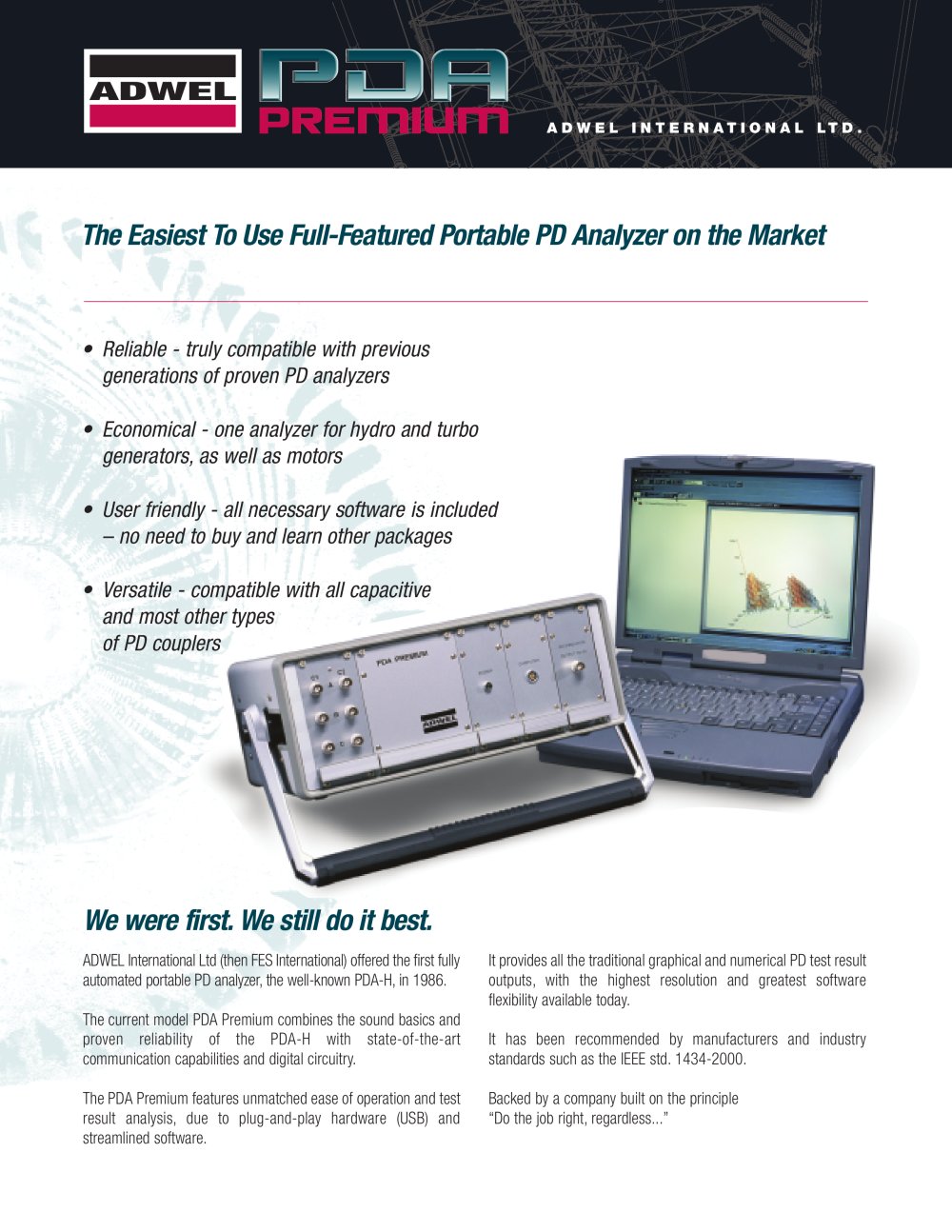

Partial Discharge Analysis - Model PDA Premium-1

ADWEL INTERNATIONAL LTD. The Easiest To Use Full-Featured Portable PD Analyzer on the Market > Reliable - truly compatible with previousgenerations of proven PD analyzersՕEconomical - one analyzer for hydro and turbogenerators,as well as motorsUser friendly - all necessary software is includedՖ no need to buy and learn other packagesVersatile - compatible with all capacitive and most other types of PD couplers We were first.We still do it best. > ADWELInternational Ltd (then FES International) offered the first fullyautomated portable PD analyzer,the well-known PDA-H,in 1986.The current model PDA Premium combines the sound basics andproven reliability of the PDA-H with state-of-the-art communication capabilities and digital circuitry.The PDA Premium features unmatched ease of operation and testresult analysis,due to plug-and-play hardware (USB) and streamlined software. It provides all the traditional graphical and numerical PD test resultoutputs,with the highest resolution and greatest software flexibility available today.It has been recommended by manufacturers and industrystandards such as the IEEE std.1434-2000.Backed by a company built on the principle ՓDo the job right,regardless... size="-2">

 Open the catalog to page 1
