  1. Catalogs
  2. ipc-core GmbH u. Co. KG
  3. Guide T-S7

Guide T-S7

Guide T-S7
1 / 4 PagesView full catalog

Guide T-S7

Product catalog summary
Overview: The document is a technical guide for the Tablet-PC Guide T-S7 by ipc-core GmbH & Co. KG, detailing its features, specifications, and available options.
Specifications:
  • Protection Class: IP65, ensuring dust and water resistance.
  • Processor: Qualcomm Snapdragon 625 MSM8953, 8x 2.0GHz.
  • Memory: 4GB LPDDR3 RAM.
  • Display: 7-inch capacitive touchscreen with a resolution of 1280x800 and a brightness of 700 cd/m².
  • Storage: 64GB eMMC with a MicroSD slot supporting up to 128GB.
  • Network: Dual-band WiFi (802.11 a/b/g/n/ac) and Bluetooth 4.1 (BLE).
  • Mobile Connectivity: LTE and WCDMA support for European regions.
  • Ports: 1x Micro-USB 2.0.
  • Navigation: GPS and GLONASS.
  • Camera: 5.0MP front and 13.0MP rear cameras.
  • Operating System: Android 10.
Additional Features:
  • Options for 1D and 2D barcode scanners, NFC, RFID, and fingerprint scanner.
  • G-Sensor, audio/video interfaces, and various buttons for power and volume control.
  • Operating temperature range from -20°C to 55°C and storage temperature range from -30°C to 70°C.
  • Compliance with Mil-STD-810G for vibration and shock resistance.
  • CE, CCC certifications for the tablet and UN3803, MSDS, IEC62133 for the battery.
Accessories: Includes a power supply (100V-240V AC, 5V DC, 15W), a 7500mAh replaceable battery, and USB OTG cable.
Ordering Information: Various modules and accessories are available for customization, including docking stations and handheld options.
See more

Catalog excerpts

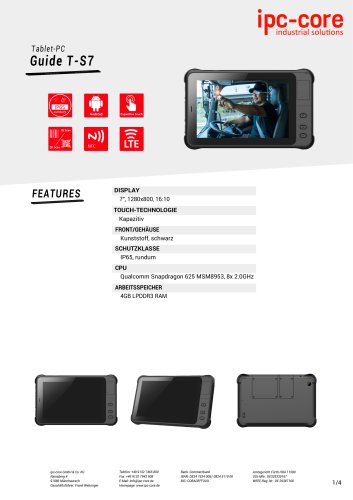

Guide T-S7-1

DISPLAY 7ﾔＬ＠Ｑ280ｸ800Ｌ＠16Ｚ10 TOUCH-TECHNOLOGIE Kapazitiv FRONT/GEHÄUSE Kunststoff, schwarz SCHUTZKLASSE IP65, rundum CPU Qualcomm Snapdragon 625 MSM8953, 8x 2.0GHz ARBEITSSPEICHER 4GB LPDDR3 RAM ipc-core GmbH & Co. KG Rainsberg 4 91086 Münchaurach Geschäftsführer: Frank Wehringer Amtsgericht Fürth HRA 11580 USt-IdNr.: DE335330167 WEEE-Reg.-Nr.

 Open the catalog to page 1
Guide T-S7-2

TECHNISCHE DATEN i pc-co reI industrial solutions DISPLAY Kunststoff, schwarz 2.4G/5.8G Dual-Band, WIFI 802.11(a/b/g/n/ac) Bluetooth 4.1 (BLE) MOBILFUNK SIM-Card-Slot Modul LTE-TDD B38/B40/B41, LTE FDD B1/B3/B5/B7/B8/B20, WCDMA: B1/B5/B8, Region: Europe BARCODE SCANNER Option : 1D Honeywell N4313,114 ± 10 scans/s, HD: 108 ±16 scans/s Option: 2D Honeywell N3680 TTL, Auflosung: 5mil/scan, Geschwindigkeit: 50 times/s AUDIO / VIDEO ERWEITERUNGS-SCHNITTSTELLEN WEITERE MERKMALE RESISTENZ VIBRATION RESISTENZ SCHOCK Option / Option: NFC-ST21 NFCD Front: 5.0MP / Rear: 13.0MP Ja, integriert Speaker, 1...

 Open the catalog to page 2
Guide T-S7-3

ipc-core GmbH & Co. KG Rainsberg 4 91086 Munchaurach Geschaftsfuhrer: Frank Wehringer Bank: Commerzbank Amtsgericht Furth HR A 11580 USt-IdNr.: DE335330167 WEEE-Reg.-Nr.: DE29387168

 Open the catalog to page 3
Guide T-S7-4

Optionen Guide T-S7 - Modul 1D Scanner Guide T-S7 - Modul 2D Scanner Guide T-S7 - Modul NFC Guide T-S7 - Modul RFID Guide T-S7 - Modul Fingerabdruck Scanner Guide T-S7＠-＠Handhalｴerｵng Guide T-S7＠-＠Dｯckingsｴaｴiｯn＠Office Guide T-S7＠-＠Dｯckingsｴaｴiｯn＠KFZ ipc-core GmbH & Co. KG Rainsberg 4 91086 Münchaurach Geschäftsführer: Frank Wehringer

 Open the catalog to page 4

All Ipc-core GmbH u. Co. KG catalogs and technical brochures

  1. Set M-S1-10
    Set M-S1-10

    4  Pages

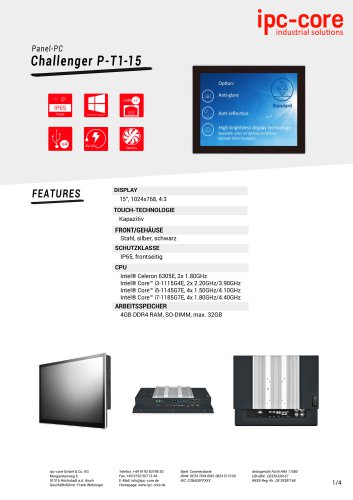

  2. Challenger P-T1-15
    Challenger P-T1-15

    4  Pages

  3. MZ1 C-X1
    MZ1 C-X1

    4  Pages

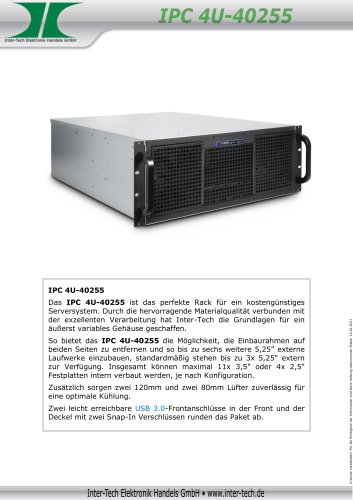

  4. IPC 4U-40255
