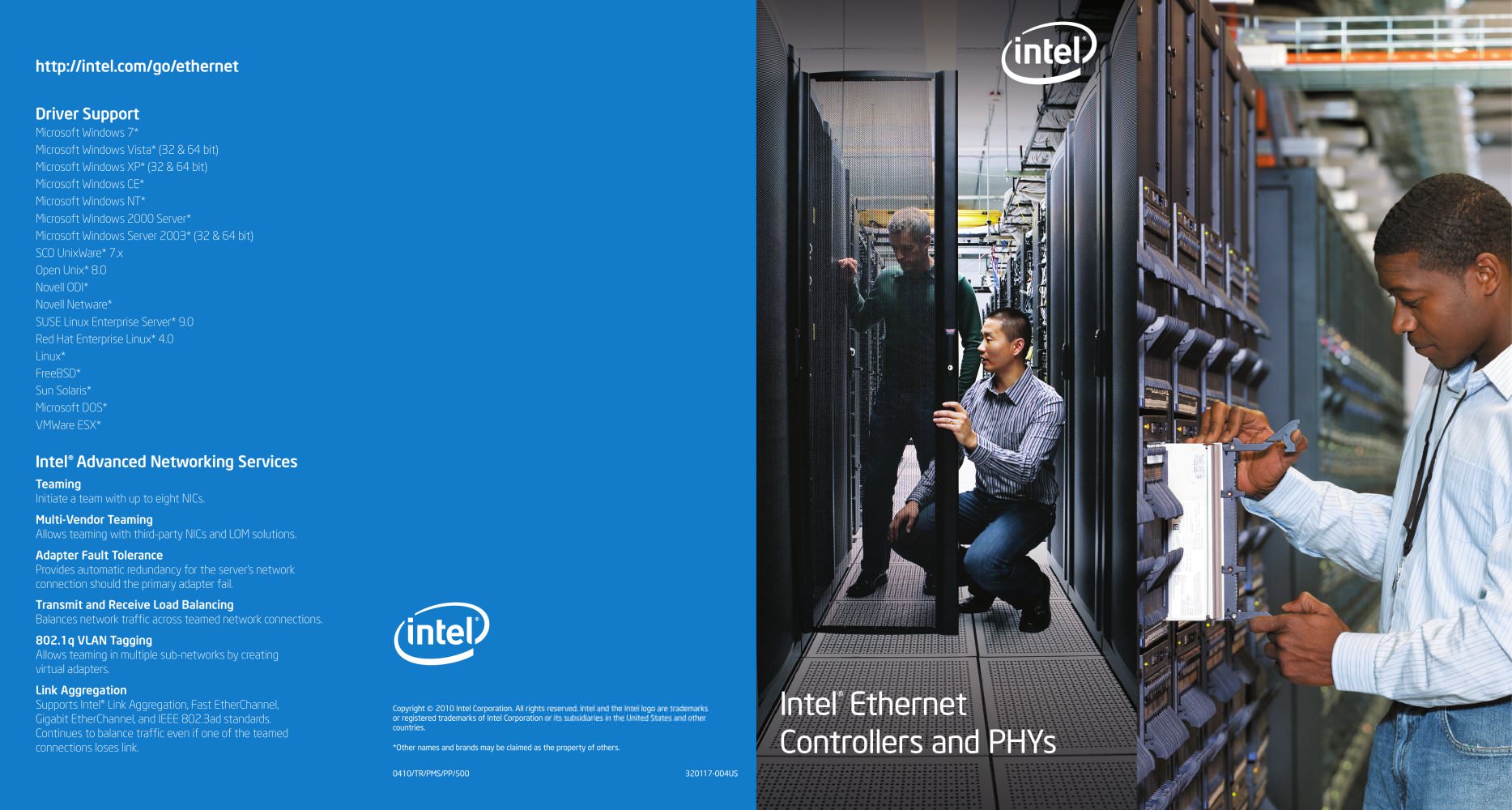

Copyright © 2010 Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the property of others. 320117-004US Driver Support Microsoft Windows 7* Microsoft Windows Vista* (32 & 64 bit) Microsoft Windows XP* (32 & 64 bit) Microsoft Windows CE* Microsoft Windows NT* Microsoft Windows 2000 Server* Microsoft Windows Server 2003* (32 & 64 bit) SCO UnixWare* 7.x Open Unix* 8.0 Novell ODI* Novell Netware* SUSE Linux Enterprise Server* 9.0 Red Hat Enterprise Linux* 4.0 Linux* FreeBSD* Sun Solaris* Microsoft DOS* VMWare ESX* Intel® Advanced Networking Services Teaming Initiate a team with up to eight NICs. Multi-Vendor Teaming Allows teaming with third-party NICs and LOM solutions. Adapter Fault Tolerance Provides automatic redundancy for the server’s network connection should the primary adapter fail. Transmit and Receive Load Balancing Balances network traffic across teamed network connections. 802.1q VLAN Tagging Allows teaming in multiple sub-networks by creating virtual adapters. Link Aggregation Supports Intel® Link Aggregation, Fast EtherChannel, Gigabit EtherChannel, and IEEE 802.3ad standards. Continues to balance traffic even if one of the teamed connections loses link. Intel® Ethernet Controllers and PHYs 0410/TR/PMS/PP/500 http://intel.com/go/ethernet

Intel® Ethernet Controllers and PHYs http://intel.com/go/ethernet Product Device Package Size/ Physical Package Host Interface/ Bus Type Performance Features Target Applications Management Features Power (Typical) Power (Standby) Operating Temp Power Supply Order Code Footprint Compatible with: Intel® 82599ES Intel® 82599EB Dual Port 10GbE MAC/PHY, KR, SFI, XAUI, KX/KX4, CX4, BX, SGMII Dual Port 10GbE MAC/PHY, XAUI, KX/KX4, CX4, BX, SGMII 25x25 mm 576-pin Flip-Chip PCI Express* v2.0 (5 GT/s) x8/x4/x2/x1 Advanced: 128Tx, 128Rx queues, receive side coalescing (RSC), low latency interrupts, Intel®...
