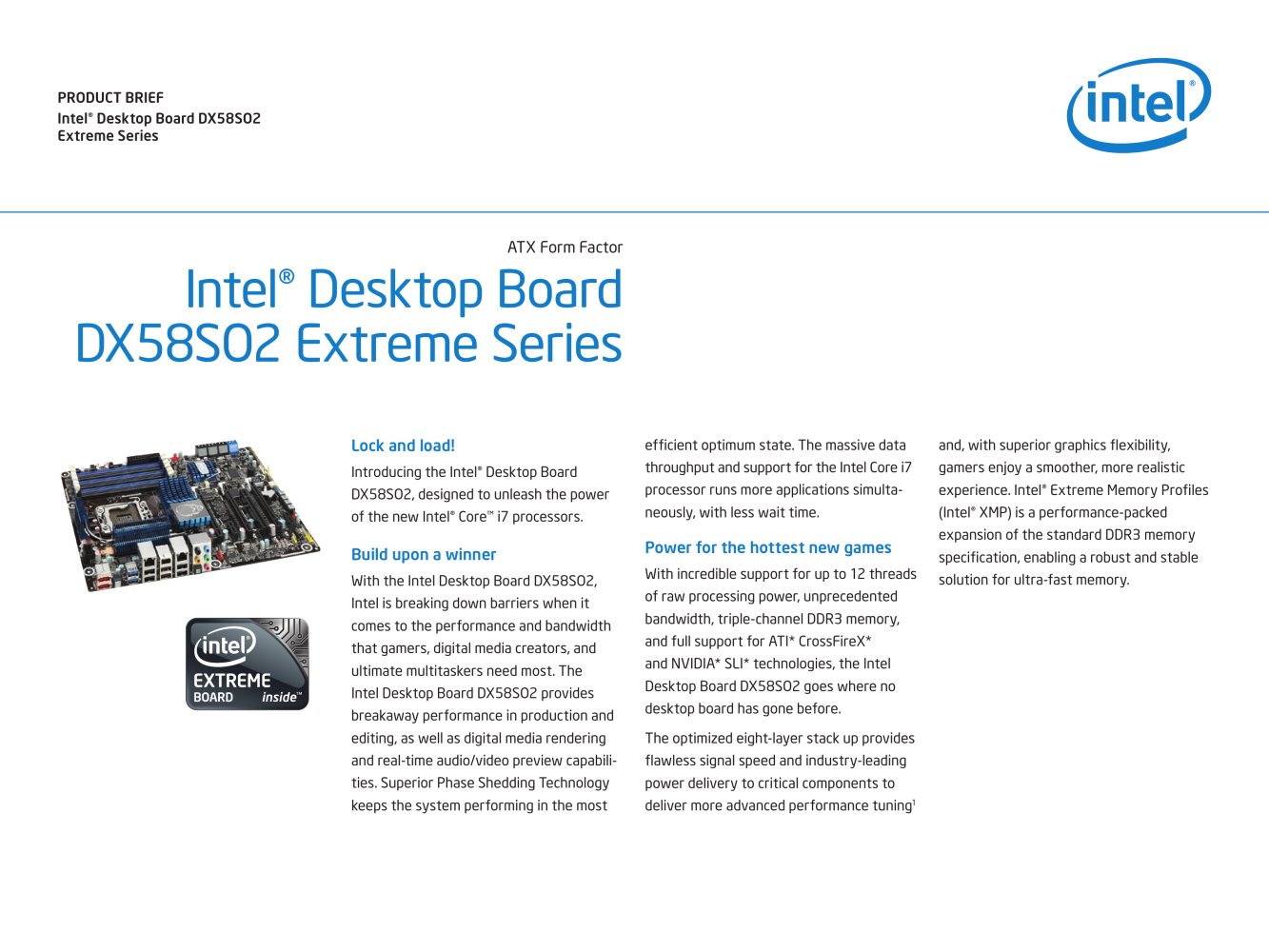

ATX Form Factor Intel® Desktop Board DX58SO2 Extreme Series and, with superior graphics flexibility, gamers enjoy a smoother, more realistic experience. Intel® Extreme Memory Profiles (Intel® XMP) is a performance-packed expansion of the standard DDR3 memory specification, enabling a robust and stable solution for ultra-fast memory. efficient optimum state. The massive data throughput and support for the Intel Core i7 processor runs more applications simultaneously, with less wait time. Power for the hottest new games With incredible support for up to 12 threads of raw processing power, unprecedented bandwidth, triple-channel DDR3 memory, and full support for ATI* CrossFireX* and NVIDIA* SLI* technologies, the Intel Desktop Board DX58SO2 goes where no desktop board has gone before. The optimized eight-layer stack up provides flawless signal speed and industry-leading power delivery to critical components to deliver more advanced performance tuning1 Lock and load! Introducing the Intel® Desktop Board DX58SO2, designed to unleash the power of the new Intel® Core™ i7 processors. Build upon a winner With the Intel Desktop Board DX58SO2, Intel is breaking down barriers when it comes to the performance and bandwidth that gamers, digital media creators, and ultimate multitaskers need most. The Intel Desktop Board DX58SO2 provides breakaway performance in production and editing, as well as digital media rendering and real-time audio/video preview capabilities. Superior Phase Shedding Technology keeps the system performing in the most product brief Intel® Desktop Board DX58SO2 Extreme Series

2 Intel® Desktop Board DX58SO2 Extreme Series The boxed Intel® Desktop Board DX58SO2 solution includes: • ATX compliant I/O shield • UV-reactive SATA cables • Extreme mouse pad • Bluetooth* / Wi-Fi* module • Board and back panel I/O layout stickers • Quick reference guide • Intel® Express Installer driver and software DVD • Windows Vista* Premium WHQL certified • NVIDIA* SLI* bridge connectors • Post code information card Software included: CAPABILIT Y SOFT WARE INCLUDED : Utilities • Intel® Core Utilities Bundle2 • Intel® Extreme Tuning Utility3 (XTU) (Internet download) Antivirus • ESET* Smart...

3 9.6” (24.38cm) 11.6” (29.46cm) 7 1 2 3 9 10 4 5 6 Intel® Desktop Board DX58SO2 Extreme Series Features and Benefits 11 12 17 13 14 15 18 8 1 Support for the Intel® Core™ i7 processor Extreme Edition in the LGA1366 package: Supports both four-core and six-core processors. Features Intel® Turbo Boost Technology4 and Intel® Hyper-Threading Technology5 for exceptional performance and scalability, and 12 MB shared Intel® Smart Cache, enabling dynamic and efficient allocation of cache. 2 Intel® X58 Express Chipset with IC H10R: Features Intel® QuickPath Interconnect (Intel® QPI) to the processor...

Storage Temperature • -20° C to +70° C Regula tions and Safety Standards United States and Canada UL 1950, Third edition—CAN/CSA C22.2 No. 950-95 with recognized U.S. and Canadian component marks Europe Nemko certified to EN 60950 International Nemko certified to IEC 60950 (CB report with CB certificate) EMC regulations (tested in representative chassis) United States FCC Part 15, Class B FCC Part 15, Class B open-chassis (cover off) testing Canada ICES-003, Class B Europe EMC directive 89/336/EEC; EN 55022:1998 Class B; EN 55024:1998 Australia/New Zealand AS/NZS 3548, Class B Taiwan CNS 13438,...
