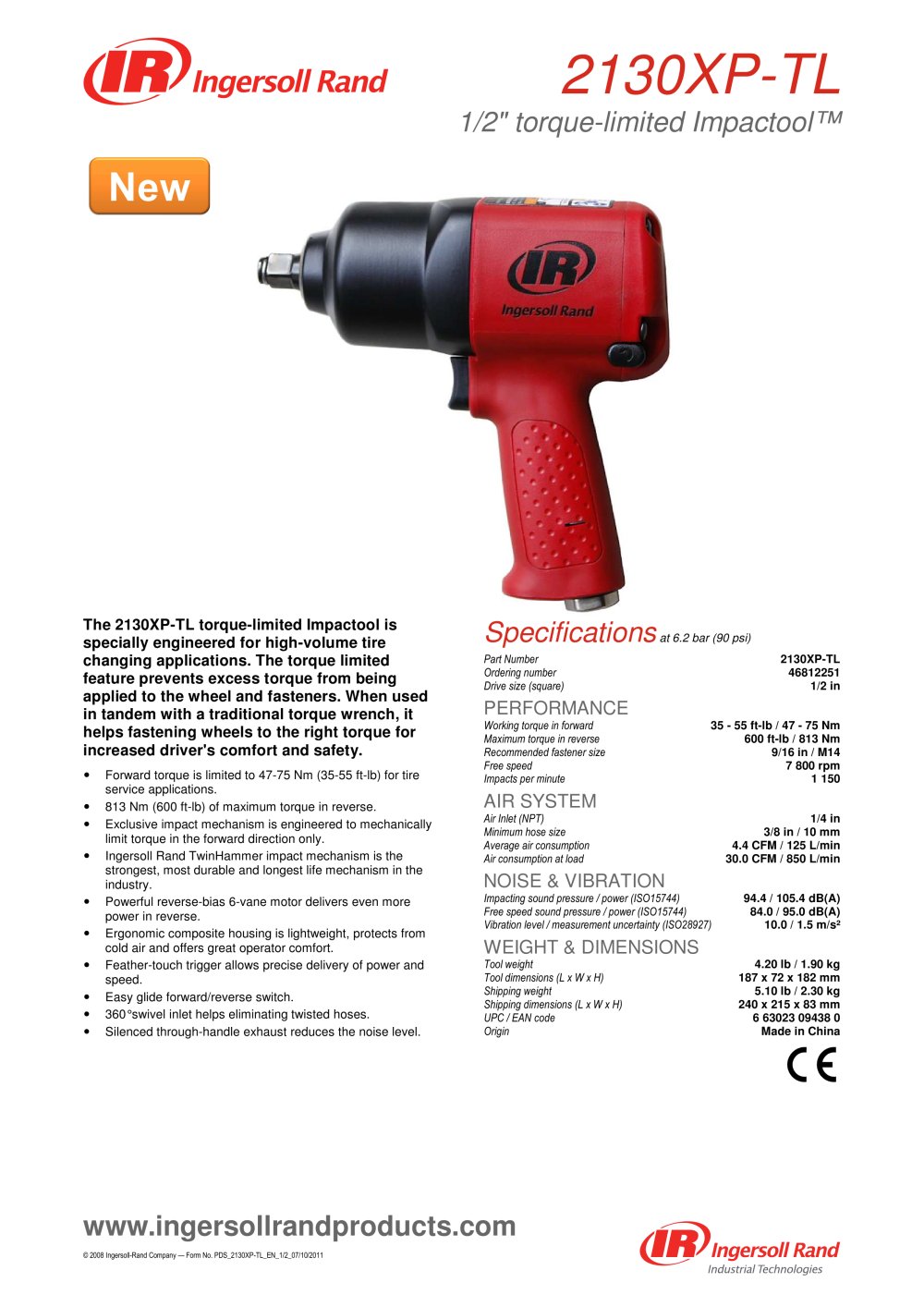

2130XP-TL Torque-Limited Impact Wrench - 1/2" Drive

2130XP-TL Torque-Limited Impact Wrench - 1/2" Drive

Product catalog summary

Specifications:
The 2130XP-TL is a 1/2" torque-limited Impactool designed for high-volume tire changing applications. It operates at 6.2 bar (90 psi) with a working torque in forward direction of 35-55 ft-lb (47-75 Nm) and a maximum reverse torque of 600 ft-lb (813 Nm). The tool has a free speed of 7,800 rpm and delivers 1,150 impacts per minute. It requires a 1/4 in NPT air inlet and a minimum hose size of 3/8 in (10 mm). Average air consumption is 4.4 CFM (125 L/min), with 30.0 CFM (850 L/min) at load.

Noise & Vibration:
The impacting sound pressure/power is 94.4/105.4 dB(A), and the free speed sound pressure/power is 84.0/95.0 dB(A). Vibration level is 10.0 m/s² with a measurement uncertainty of 1.5 m/s².

Weight & Dimensions:
The tool weighs 4.20 lb (1.90 kg) with dimensions of 187 x 72 x 182 mm. Shipping weight is 5.10 lb (2.30 kg) and dimensions are 240 x 215 x 83 mm.

Features:
The Impactool features a torque-limited mechanism to prevent over-torquing, a powerful reverse-bias 6-vane motor, ergonomic composite housing, feather-touch trigger, easy glide forward/reverse switch, and a 360° swivel inlet. It also includes a silenced through-handle exhaust to reduce noise.

Accessories:
Available accessories include impact socket sets, extension bars, horizontal hangers, cable balancers, protective tool boots, hose whips, quick release couplings, and various lubricants. Service kits for the impact mechanism and motor are also available.

Additional Information:
The document notes that product improvements are ongoing and specifications may change without notice. It also states that warranties are subject to Ingersoll Rand's standard terms and conditions.
