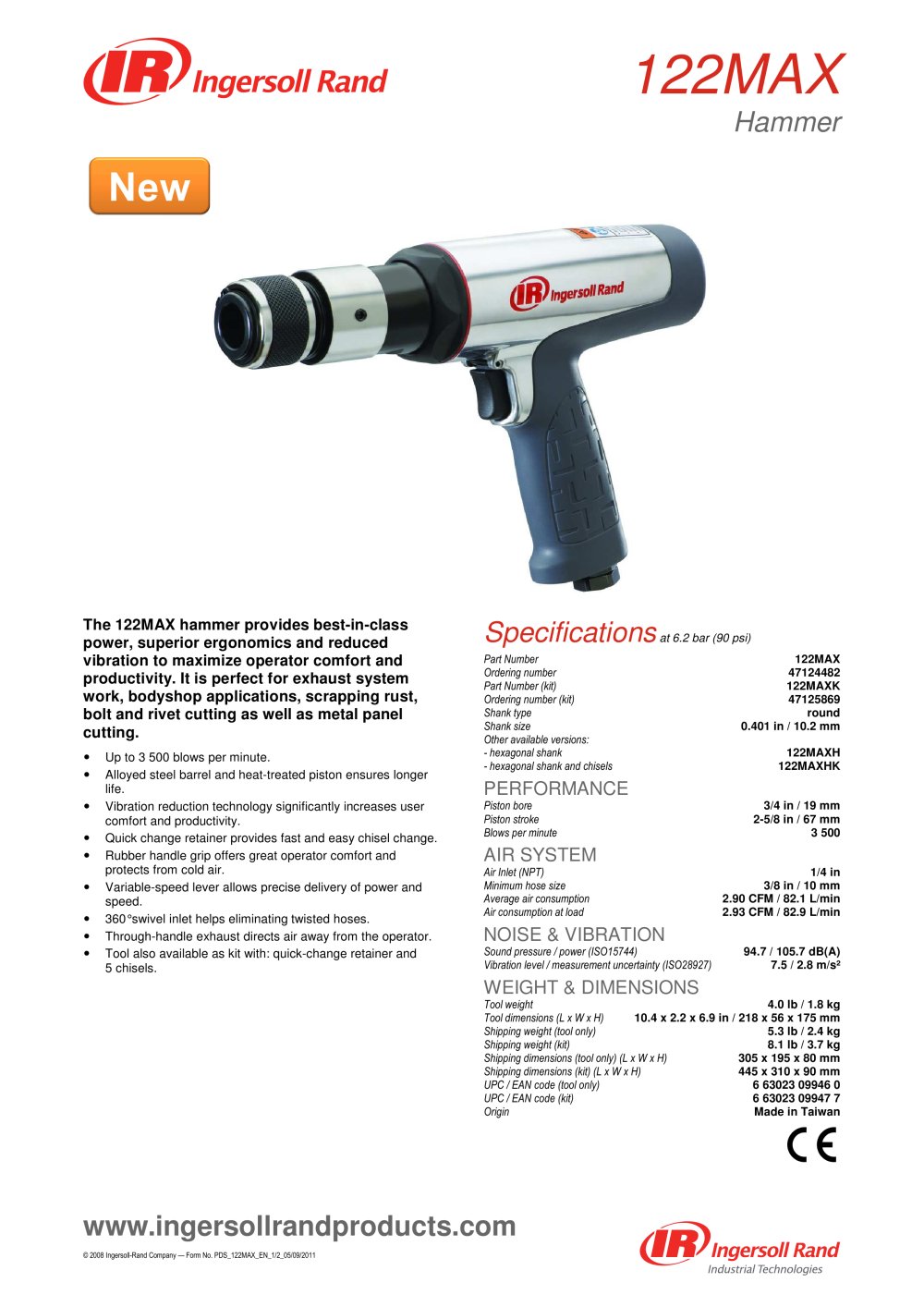

Specifications:
The 122MAX Hammer operates at 6.2 bar (90 psi) with a part number of 122MAX and ordering number 47124482. It features a round shank type with a size of 0.401 in / 10.2 mm. Other versions include hexagonal shank models 122MAXH and 122MAXHK.

Performance:
The hammer has a piston bore of 3/4 in / 19 mm and a piston stroke of 2-5/8 in / 67 mm, delivering up to 3,500 blows per minute.

Air System:
It requires a 1/4 in NPT air inlet and a minimum hose size of 3/8 in / 10 mm. The average air consumption is 2.90 CFM / 82.1 L/min, with a load consumption of 2.93 CFM / 82.9 L/min.

Noise & Vibration:
The sound pressure/power levels are 94.7 / 105.7 dB(A), and the vibration level is 7.5 m/s² with a measurement uncertainty of 2.8 m/s².

Weight & Dimensions:
The tool weighs 4.0 lb / 1.8 kg with dimensions of 10.4 x 2.2 x 6.9 in / 218 x 56 x 175 mm. Shipping weight and dimensions vary for the tool and kit.

Features:
The 122MAX hammer is designed for power and ergonomics, reducing vibration for operator comfort. It is suitable for various applications such as exhaust system work and metal cutting. Key features include a quick-change retainer, rubber handle grip, variable-speed lever, 360° swivel inlet, and through-handle exhaust.

Accessories:
Available accessories include chisels with round shanks, a quick-change retainer, hose whip, and various nipples. Lubricants and other accessories are detailed in the accessory catalogue.

Additional Information:
The product is made in Taiwan, and specifications are subject to change. For warranty and terms, refer to Ingersoll Rand's standard terms and conditions.
