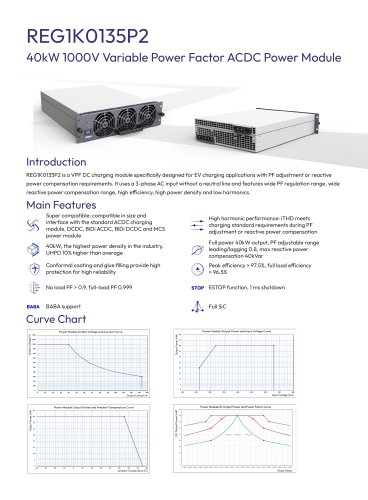

Introduction
The REG1K0135P2 is a VPF DC charging module designed for electric vehicle (EV) charging applications, particularly where power factor (PF) adjustment or reactive power compensation is required. It operates with a 3-phase AC input without a neutral line and offers a wide range of PF regulation, high efficiency, and low harmonics.

Main Features
- Industry-leading power density of 40kW.
- Compatibility with various power modules including ACDC, DCDC, BiDi ACDC, BiDi DCDC, and MCS.
- High protection through conformal coating and glue filling.
- Excellent harmonic performance with iTHD meeting charging standards.
- ESTOP function for rapid shutdown.
- High efficiency with peak efficiency over 97.5% and full load efficiency over 96.5%.
- Adjustable PF range from leading/lagging 0.8 and maximum reactive power compensation of 40kVar.

Technical Parameters
Environmental
- Operating temperature: -40°C to +75°C with power derating from 55°C.
- Storage temperature: -40°C to +70°C.
- Humidity: ≤95%RH, non-condensing.
- Cooling: Forced air cooling.
- Altitude: ≤2000m.

AC Input
- Frequency range: 45~65Hz.
- Voltage range: 260Vac~530Vac.
- Power factor: >0.9 at no load, ≥0.99 at 50%~100% full load.
- Max input current: 78A.
- ITHD: ≤5% for output power >15kW or reactive power >15kVar.

DC Output
- Output power: 40kW at voltage >300Vdc.
- Voltage range: 150Vdc~1000Vdc.
- Current range: 0~133.3A.
- Current sharing: <±5% (10%~100% load).
- Voltage stabilization accuracy: <±0.5%.
- Current stabilization accuracy: ≤±1% (output power in 20%~100%).

Control
- Communication: CAN bus, supports up to 32 modules in parallel.
- Indication lights: Green for normal, yellow for alarm, red for failure.
- Noise settings: Standard mode (max 78dB), de-noise mode (max 65dB), silent mode (max 55dB).
- ESTOP: Quick stop output to less than 60V in 300ms.

Alarm and Protection
- Input overvoltage/undervoltage protection with automatic restart.
- Output overvoltage protection with manual restart.
- Over current/short circuit protection with automatic shutdown and lock.
- Over temperature protection with standby mode.

Compliance and Safety
- EMC/EMI: EN61851-21-2, Class B.
- Safety: UL2202, EN61851-1, EN61851-23.
- Reliability: MTBF >300,000 hours.

Mechanical
- Dimensions: 84mm (H) × 300mm (W) × 395mm (D).
- Weight: ≤17kg.

Ordering Information
- Type: REG1K0135P2.
- Certification: UL/KC/TUV CE/ cTUVus.
