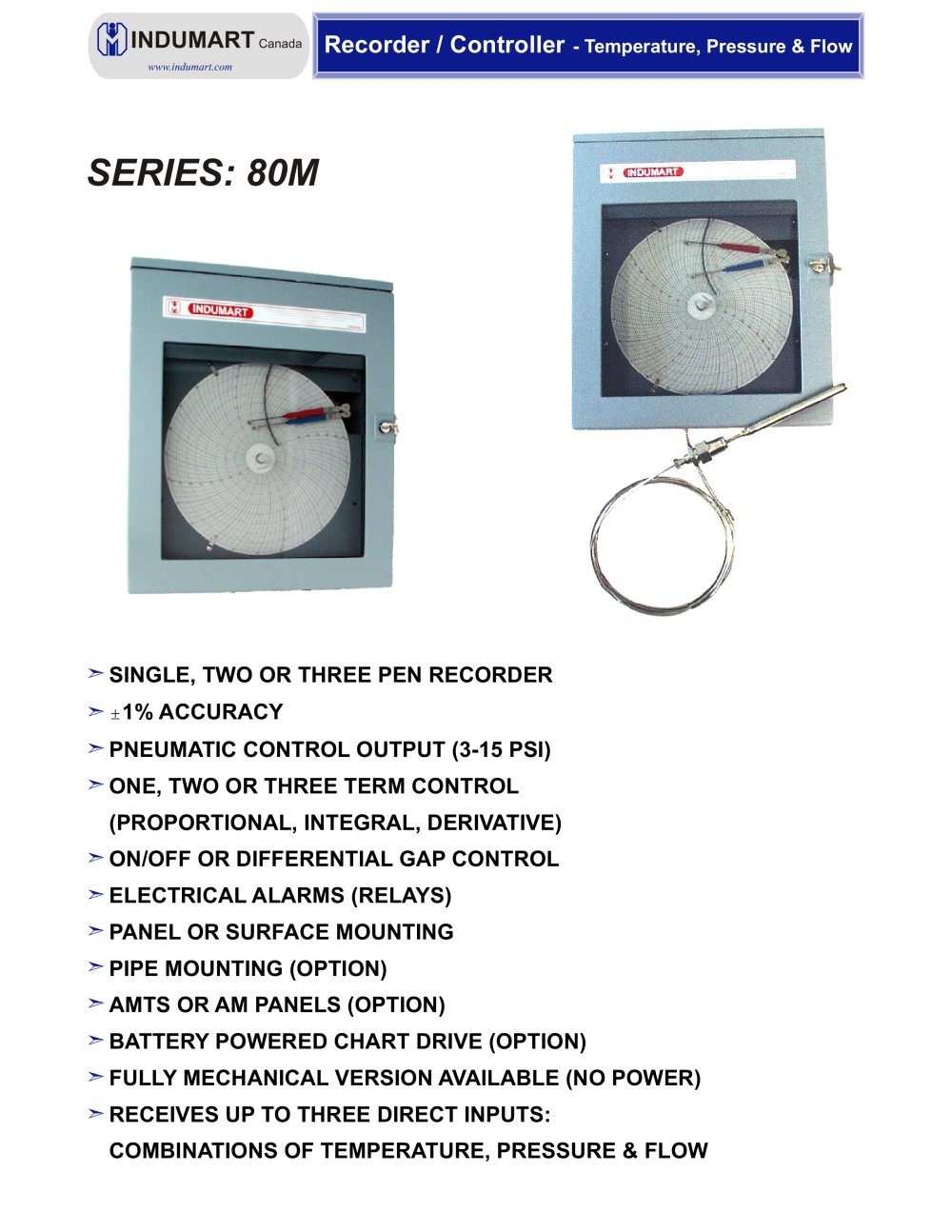

Canada www.indumart.com - Temperature, Pressure & Flow SINGLE, TWO OR THREE PEN RECORDER " 1% ACCURACYPNEUMATIC CONTROL OUTPUT (3-15 PSI) ONE, TWO OR THREE TERM CONTROL(PROPORTIONAL, INTEGRAL, DERIVATIVE)ON/OFF OR DIFFERENTIAL GAP CONTROLELECTRICAL ALARMS (RELAYS)PANEL OR SURFACE MOUNTINGPIPE MOUNTING (OPTION)AMTS OR AM PANELS (OPTION)BATTERY POWERED CHART DRIVE (OPTION)FULLY MECHANICAL VERSION AVAILABLE (NO POWER)RECEIVES UP TO > &&&&&&&&& &&& THREE DIRECT INPUTS:COMBINATIONS OF TEMPERATURE, PRESSURE & FLOW >

80M Series can be equipped with single term (P), two-term (P+I) or (P+D), three-term (PID), on/off or differential gap control actions to provide pneumatic control output(s). To enable accurate matching to plant conditions, the proportional band, integral time and derivative time are adjustable over a wide range. ON/OFF instruments have a sensitivity adjustment comparable to 0.25% to 1% proportional band. For applications that > the control output must be switched to its maximum at a certain point, and be switched to its minimum at another point, choose the differential gap control action. The...
