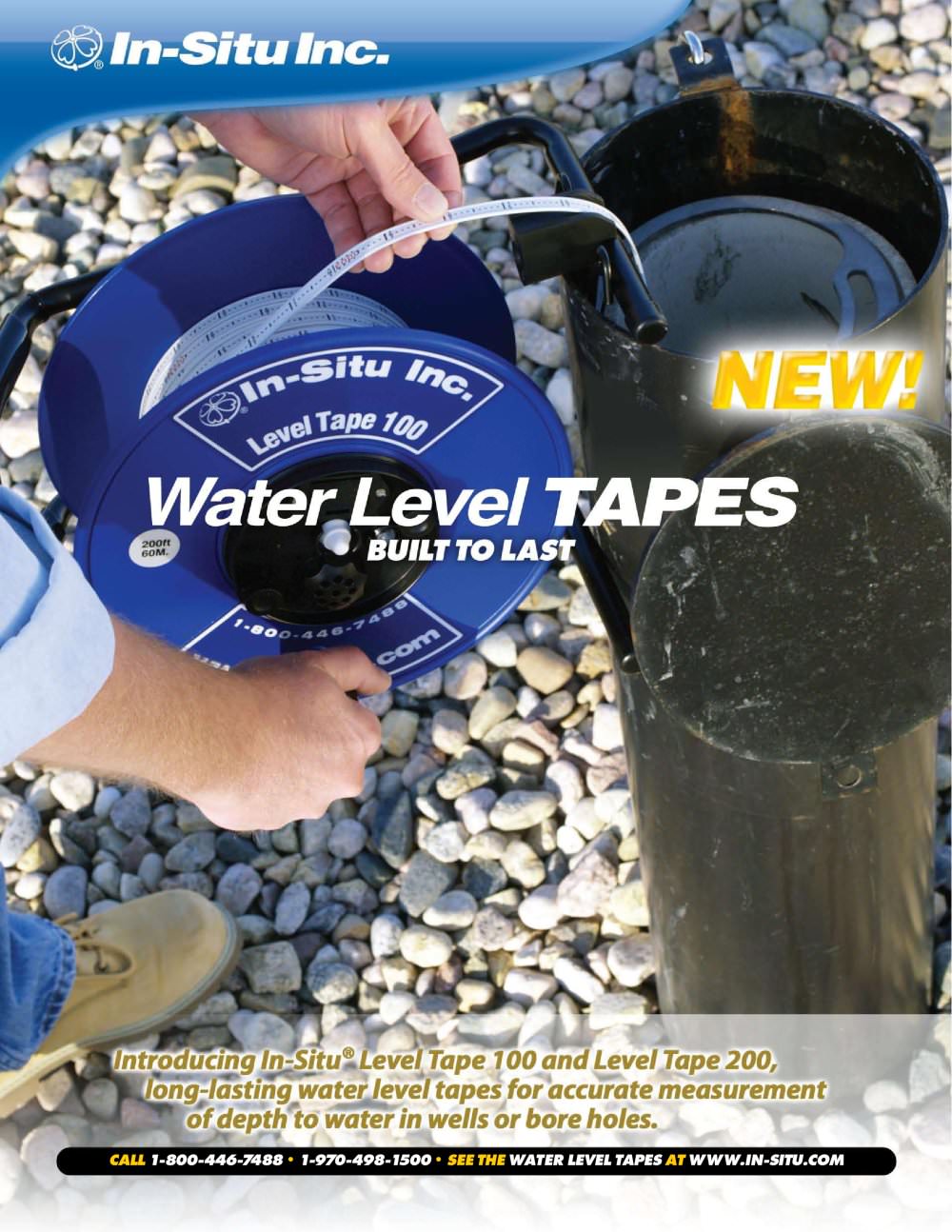

Water Level TAPES Spec Sheet
1 / 2 PagesView full catalog
Water Level TAPES Spec Sheet
Product catalog summary
Specifications Overview:
The document provides detailed specifications for water level tapes manufactured by In-Situ Inc. These tapes are designed for measuring water levels with high precision and durability.
Tape Features:
Probe Specifications:
Power and Signal:
Reel Details:
Additional Features:
Product Variants:
Contact Information:
For purchases, rentals, or leases, contact In-Situ Inc. at 1-800-446-7488 or visit their website at www.in-situ.com.
The document provides detailed specifications for water level tapes manufactured by In-Situ Inc. These tapes are designed for measuring water levels with high precision and durability.
Tape Features:
- Constructed with high-quality, Kevlar® reinforced polyethylene tape.
- Graduated in feet by 0.01 ft or meters by mm for precise measurement.
- Black print on white or yellow tape for easy readability.
Probe Specifications:
- Made of stainless steel and Teflon®.
- Diameter: 0.63 inches (16 mm), Length: 7.5 inches (190 mm).
- Fully sealed and pressure tested.
Power and Signal:
- Operated by a single 9V battery.
- Features an audible buzzer and bright LED light for signaling.
- Sensitivity can be adjusted with a touch of a button.
Reel Details:
- Available in rugged nylon (for tapes less than 500 ft) or aluminum (for tapes over 500 ft).
- Mounted on a steel frame with an ergonomic hand grip.
- Includes a reel lock, casing hanger, and padded carrying bag.
Additional Features:
- Polyethylene tape with stainless steel conductors meets ASME standards.
- Printing is protected under the tape jacket.
- Modular electronic panel is replaceable.
- Automatic shut-off feature included.
- Tensile strength of tape exceeds 300 lb.
Product Variants:
- Level TAPE 100 and Level TAPE 200 available in various lengths from 100 ft to 2000 ft.
Contact Information:
For purchases, rentals, or leases, contact In-Situ Inc. at 1-800-446-7488 or visit their website at www.in-situ.com.
See more
Catalog excerpts
CALL 1-800-446-7488 1-970-498-1500 Օ SEE THE WATER LEVEL TAPES AT WWW.IN-SITU.COM >
