Level TROLL 300 Spec Sheet

Level TROLL 300 Spec Sheet

Product catalog summary

Product Overview: The Level TROLL 300 is a reliable and rugged water level monitoring device designed for ease of installation and operation. It offers multiple power options, including internal and external battery packs, and supports various communication protocols such as MODBUS/RS485, SDI-12, and 4-20mA without the need for special adapters.

Specifications:

Connector: Twist-Lock or stripped & tinned wire with 6 conductors.
Diameter: 6.7mm (0.265 inches).
Break Strength: 127 kg (280 lbs).
Cable Types: FEP coated steel cable for hanging, non-vented Polyurethane or Halogen-Free Polyurethane.
Warranty: One-year for standard cables, two years for rugged cables.
Operating Temperature Range: -20° to 80°C.
Dimensions: 20.8mm OD, 22.9cm length.
Weight: 0.24 kg (0.54 lb).
Housing Material: 316L Stainless Steel.
Nose Cone Material: Black Delrin®.

Power and Logging:

Internal Battery: 3.6V Lithium with a guaranteed life of 5 years or 1-million data records.
External Power: 8-36VDC.
Memory: 1 MB for over 50,000 data records.
Logging Rate: 1 second to 49 days.

Sensor Details:

Level Sensor: Non-vented silicon strain gauge with accuracy of +/-0.1% FS at 15°C.
Temperature Sensor: Silicon with accuracy of +/-0.3°C.

Software: The Win-Situ® software provides a user-friendly interface for data management and export to MS Excel. It includes graphical dashboards and wizards for easy setup and operation.

Key Features:

In-Situ reliability and ruggedness.
Easy installation and operation.
Multiple power options.
Built-in communication protocols.
Sealed instrument with removable nosecone.
Error-proof data download.
Kevlar fiber reinforced cable available up to 1200m.
Includes Win-Situ LT software at no charge.
Compatible with In-Situ RuggedReader PocketPC and Pocket-Situ software.
SCADA and Telemetry ready.
Compatible with all In-Situ TROLL accessories.

Catalog excerpts

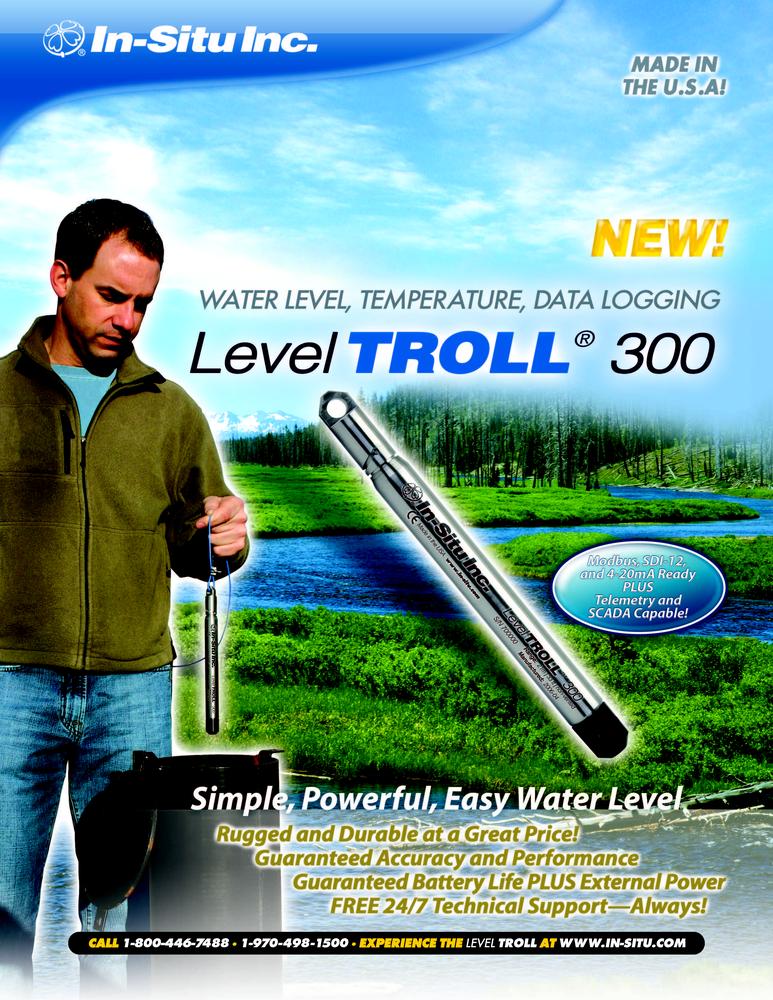

CALL 1-800-446-7488 1-97 0- 49 8 -1500 ׷ EXPERIENCE THE LEVEL TROLL AT WWW.IN-SITU.COM >

Open the catalog to page 1

Operating temperature range -20ΰ to 80C -20а to 80C > Weight 0.197 kg (0.43 lb) 0.24 kg (0.54 lb) Output options Modbus (RS-485) Modbus (RS-485) > Housing material Titanium 316L Stainless Steel > Nose cone material Black Delrin > Black Delrin > ή Internal battery 3.6V Lithium 3.6V Lithium > *Whichever comes rst. See battery guide for details. dr = data records Memory / data records ** 1 MB / 100,000+ 1 MB / 50,000+ > Logging Rate 1 min 49 days 1 sec ֖ 49 days > Measurement Types Linear Linear, Fast Linear, Event > **data records = one reading with time stamp Silicon strain gauge Silicon strain...

Open the catalog to page 2
