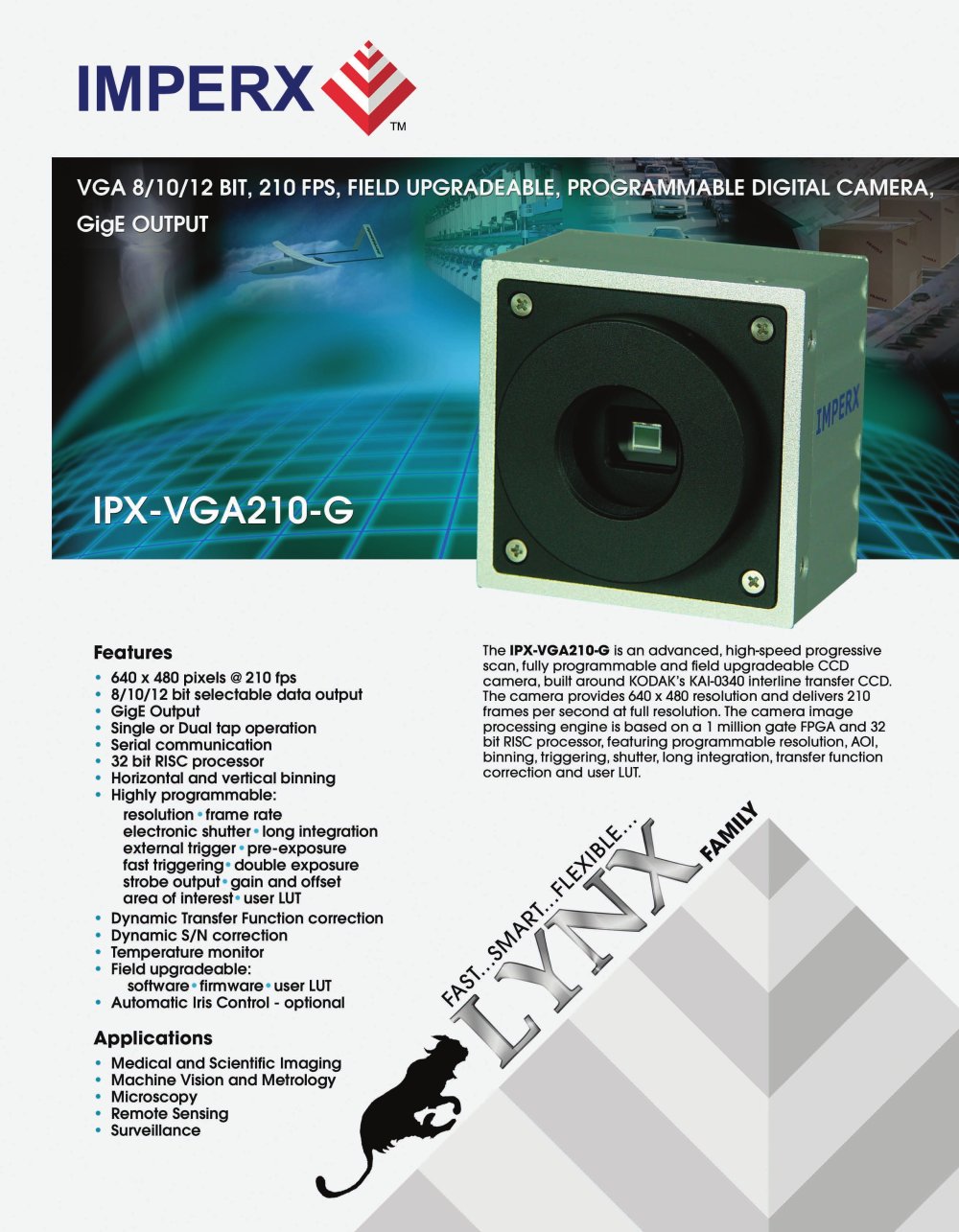

VGA 8/10/12 BIT, 210 FPS, FIELD UPG E,PRO LE DIGITAL CAMERA AMM GigE OUTPUT r VG A210 Features The IPX-VGA210-G is an advanced, high-speed progressive scan, fully programmable and field upgradeable CCD camra, built around KODAK's KAI-0340 interline transfer CCD. The camra provides 640 x 480 resolution and delivers 210 frames per second at full resolution. The cam驩ra image processing engine is based on a 1 million gte FPGA and 32 bit RISC processor, featuring programmable resolution, AOI, binning, triggering, shutter, long intgration, transfer function correction and user LUT. 640 x 480 pixels @ 210fps 8/10/12 bit selectable data output GigE Output Single or Dual tap op⩩ration Sriai communication 32 bit RISC processor Horizontal and vertical binning Highly programmable: resolution& frame rate electronic shutter long int镩gration external trigger pre-exposure fast triggering double exposure strobe output « gain and offset area of interest user LUT Dynamic Transfer Function correction Dynamic S/N correction Tempթrature monitor Field upgradeable: software firmware * user LUT Օ Automatic Iris Control - optional Applications Mթdical and Scientific Imaging Machine Vision and Metrology

Spcifications for IPX-VGA 210-G Active Image Pixels 640 (H) x 480 (V), Mono or Color Active Image Area 5.87 mm x4.71 mm (0.23l"x 0.185") Pixel size 7.4 um Video Output Digital, 8/10/12 bit, one or two outputs Camra Interface GigE Output Physical Interface RJ-45, 802.3, Ethernet v2.0, IR ICMR UDR PING Data Clock 40.000 MHz Resolution 640 x 480 pixels max Frame Rate 210 fps (dual) /120 fps (single), up to 3000 fps w/AOI Shutter Speed 1 /50000 sec to 1 /100 sec Long Int驩gration 1/100 sec to 10 sec Gamma Correction G=l .0, G=0.45, User defined LUT Black Level Offset 256 levels/output Video Gain 6-40...
