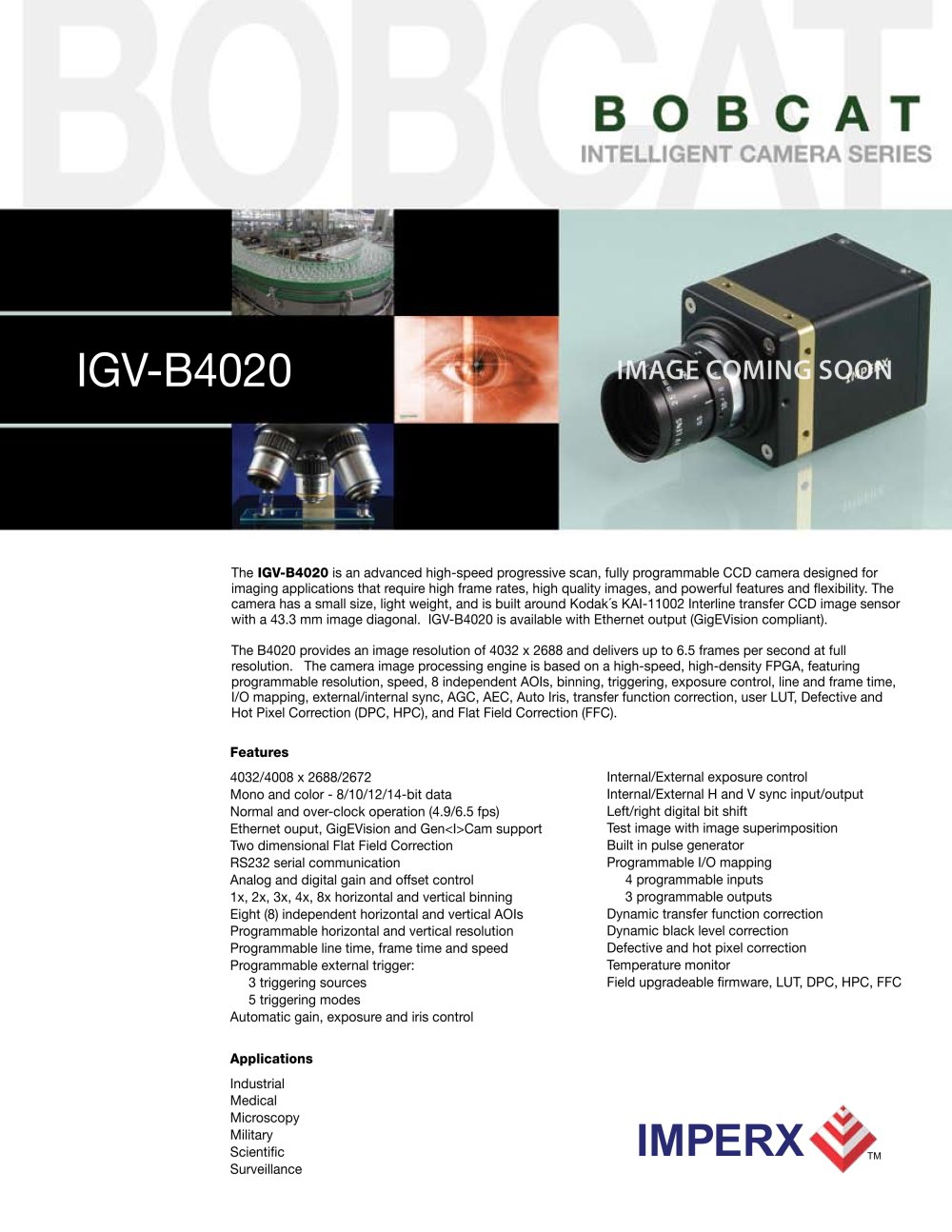

IMPERX TM Features 4032/4008 x 2688/2672 Mono and color - 8/10/12/14-bit data Normal and over-clock operation (4.9/6.5 fps) Ethernet ouput, GigEVision and GenCam support Two dimensional Flat Field Correction RS232 serial communication Analog and digital gain and offset control 1x, 2x, 3x, 4x, 8x horizontal and vertical binning Eight (8) independent horizontal and vertical AOIs Programmable horizontal and vertical resolution Programmable line time, frame time and speed Programmable external trigger: 3 triggering sources 5 triggering modes Automatic gain, exposure and iris control The IGV-B4020 is an advanced high-speed progressive scan, fully programmable CCD camera designed for imaging applications that require high frame rates, high quality images, and powerful features and flexibility. The camera has a small size, light weight, and is built around Kodak´s KAI-11002 Interline transfer CCD image sensor with a 43.3 mm image diagonal. IGV-B4020 is available with Ethernet output (GigEVision compliant). The B4020 provides an image resolution of 4032 x 2688 and delivers up to 6.5 frames per second at full resolution. The camera image processing engine is based on a high-speed, high-density FPGA, featuring programmable resolution, speed, 8 independent AOIs, binning, triggering, exposure control, line and frame time, I/O mapping, external/internal sync, AGC, AEC, Auto Iris, transfer function correction, user LUT, Defective and Hot Pixel Correction (DPC, HPC), and Flat Field Correction (FFC). Applications Industrial Medical Microscopy Military Scientific Surveillance Internal/External exposure control Internal/External H and V sync input/output Left/right digital bit shift Test image with image superimposition Built in pulse generator Programmable I/O mapping 4 programmable inputs 3 programmable outputs Dynamic transfer function correction Dynamic black level correction Defective and hot pixel correction Temperature monitor Field upgradeable firmware, LUT, DPC, HPC, FFC IGV-B4020 image coming soon

IMPERX TM Specifications for Bobcat IGV-B4020 Spectral Response Power Requirements 12V DC, (10V min, 15V max) 470 mA steady, 1.5 A inrush 5.6 W Mechanical Dimensions Accessories PS12V04: Power Supply (sold separately) PS12V05 Power Supply with Auto Iris (sold separately) For specific details and ordering information, consult the camera user’s manual or contact us at [email protected]. Copyright © 2009, Imperx, Inc. Product information subject to change without notice. Rev. 1.0, 04/30/10 Imperx Incorporated • 6421 Congress Avenue • Boca Raton, FL 33487 • USA Phone: +1-561-989-0006 • 1-866-849-1662...
