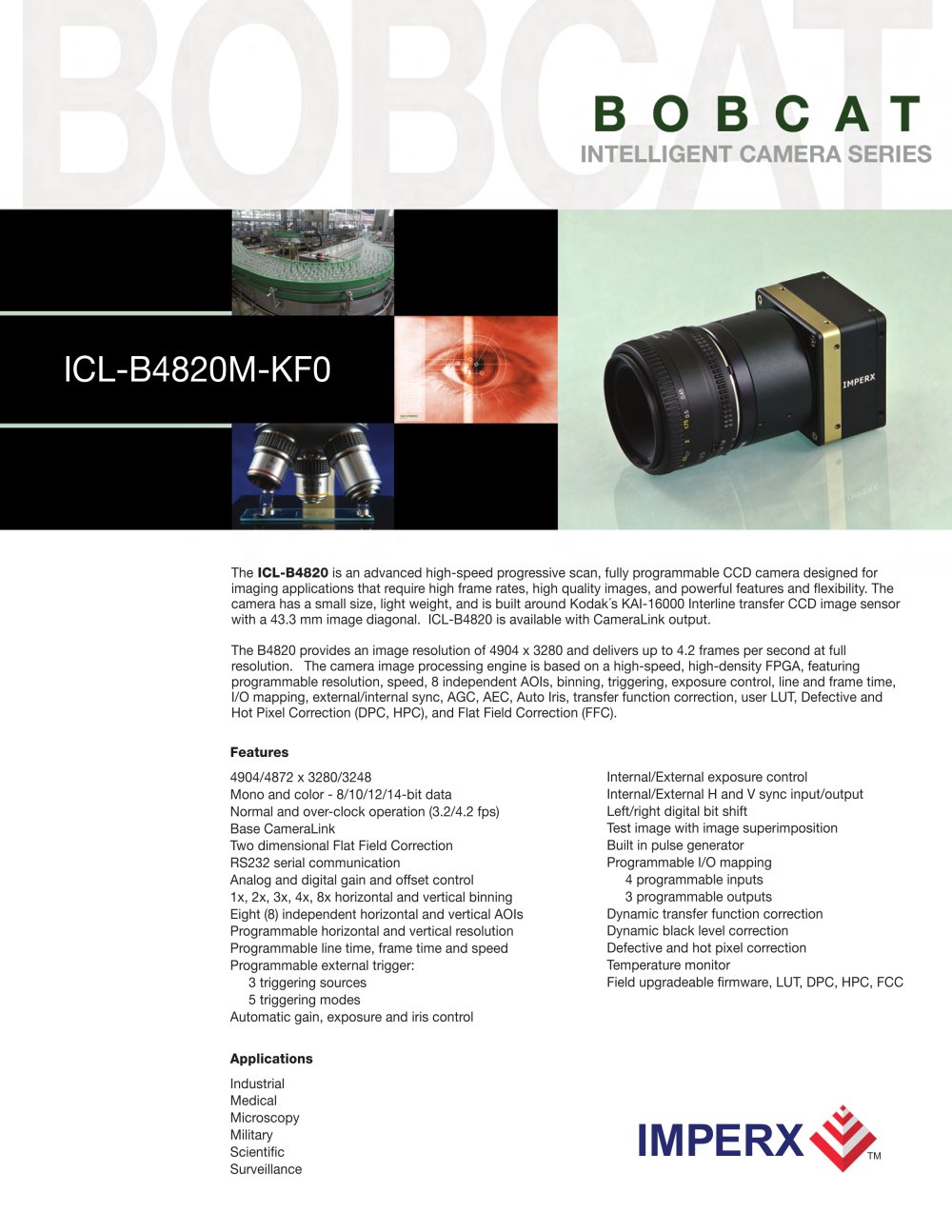

IMPERX TM Features 4904/4872 x 3280/3248 Mono and color - 8/10/12/14-bit data Normal and over-clock operation (3.2/4.2 fps) Base CameraLink Two dimensional Flat Field Correction RS232 serial communication Analog and digital gain and offset control 1x, 2x, 3x, 4x, 8x horizontal and vertical binning Eight (8) independent horizontal and vertical AOIs Programmable horizontal and vertical resolution Programmable line time, frame time and speed Programmable external trigger: 3 triggering sources 5 triggering modes Automatic gain, exposure and iris control The ICL-B4820 is an advanced high-speed progressive scan, fully programmable CCD camera designed for imaging applications that require high frame rates, high quality images, and powerful features and flexibility. The camera has a small size, light weight, and is built around Kodak´s KAI-16000 Interline transfer CCD image sensor with a 43.3 mm image diagonal. ICL-B4820 is available with CameraLink output. The B4820 provides an image resolution of 4904 x 3280 and delivers up to 4.2 frames per second at full resolution. The camera image processing engine is based on a high-speed, high-density FPGA, featuring programmable resolution, speed, 8 independent AOIs, binning, triggering, exposure control, line and frame time, I/O mapping, external/internal sync, AGC, AEC, Auto Iris, transfer function correction, user LUT, Defective and Hot Pixel Correction (DPC, HPC), and Flat Field Correction (FFC). Applications Industrial Medical Microscopy Military Scientific Surveillance Internal/External exposure control Internal/External H and V sync input/output Left/right digital bit shift Test image with image superimposition Built in pulse generator Programmable I/O mapping 4 programmable inputs 3 programmable outputs Dynamic transfer function correction Dynamic black level correction Defective and hot pixel correction Temperature monitor Field upgradeable firmware, LUT, DPC, HPC, FCC ICL-B4820M-KF0

IMPERX TM Specifications for Bobcat ICL-B4820M-KF0 Spectral Response Power Requirements 12V DC, (10V min, 15V max) 270 mA steady, 1.5 A inrush 3.3W Mechanical Dimensions Accessories PS12V04: Power Supply (sold separately) For specific details and ordering information, consult the camera user’s manual or contact us at [email protected]. Copyright © 2009, Imperx, Inc. Product information subject to change without notice. Rev. 1.0, 05/20/09 Imperx Incorporated • 6421 Congress Avenue • Boca Raton, FL 33487 • USA Phone: +1-561-989-0006 • 1-866-849-1662 • Fax: +1-561-989-0045 www.imperx.com • [email protected]...
