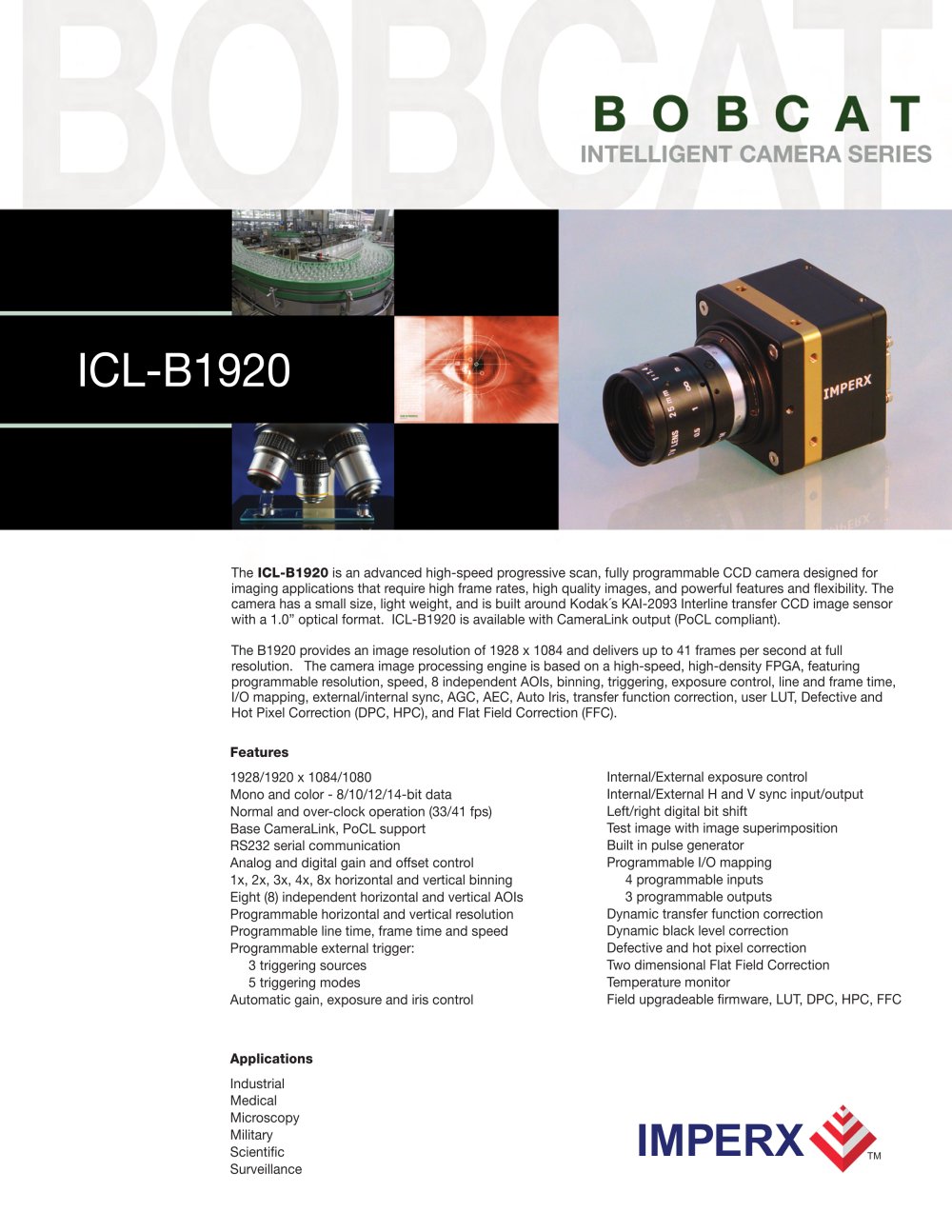

IMPERX TM Features 1928/1920 x 1084/1080 Mono and color - 8/10/12/14-bit data Normal and over-clock operation (33/41 fps) Base CameraLink, PoCL support RS232 serial communication Analog and digital gain and offset control 1x, 2x, 3x, 4x, 8x horizontal and vertical binning Eight (8) independent horizontal and vertical AOIs Programmable horizontal and vertical resolution Programmable line time, frame time and speed Programmable external trigger: 3 triggering sources 5 triggering modes Automatic gain, exposure and iris control The ICL-B1920 is an advanced high-speed progressive scan, fully programmable CCD camera designed for imaging applications that require high frame rates, high quality images, and powerful features and flexibility. The camera has a small size, light weight, and is built around Kodak´s KAI-2093 Interline transfer CCD image sensor with a 1.0” optical format. ICL-B1920 is available with CameraLink output (PoCL compliant). The B1920 provides an image resolution of 1928 x 1084 and delivers up to 41 frames per second at full resolution. The camera image processing engine is based on a high-speed, high-density FPGA, featuring programmable resolution, speed, 8 independent AOIs, binning, triggering, exposure control, line and frame time, I/O mapping, external/internal sync, AGC, AEC, Auto Iris, transfer function correction, user LUT, Defective and Hot Pixel Correction (DPC, HPC), and Flat Field Correction (FFC). Applications Industrial Medical Microscopy Military Scientific Surveillance Internal/External exposure control Internal/External H and V sync input/output Left/right digital bit shift Test image with image superimposition Built in pulse generator Programmable I/O mapping 4 programmable inputs 3 programmable outputs Dynamic transfer function correction Dynamic black level correction Defective and hot pixel correction Two dimensional Flat Field Correction Temperature monitor Field upgradeable firmware, LUT, DPC, HPC, FFC ICL-B1920

IMPERX TM Specifications for Bobcat ICL-B1920 Spectral Response Power Requirements 12V DC, (10V min, 15V max) 240 mA steady, 1.5 A inrush 2.90 W, PoCL Mechanical Dimensions Accessories PS12V04: Power Supply (sold separately) Imperx Incorporated • 6421 Congress Avenue • Boca Raton, FL 33487 • USA Phone: +1-561-989-0006 • 1-866-849-1662 • Fax: +1-561-989-0045 www.imperx.com • [email protected] Configuration Utility Power and I/O Interface Connector: Hirose HR 10A-10R-12PB(71) Maximum Resolution 1928 x 1084 Sensor Type 1.0” CCD KAI-2093 Pixel Size 7.40 mm Frame Rate 33/41 fps (normal/overclock) Max...
