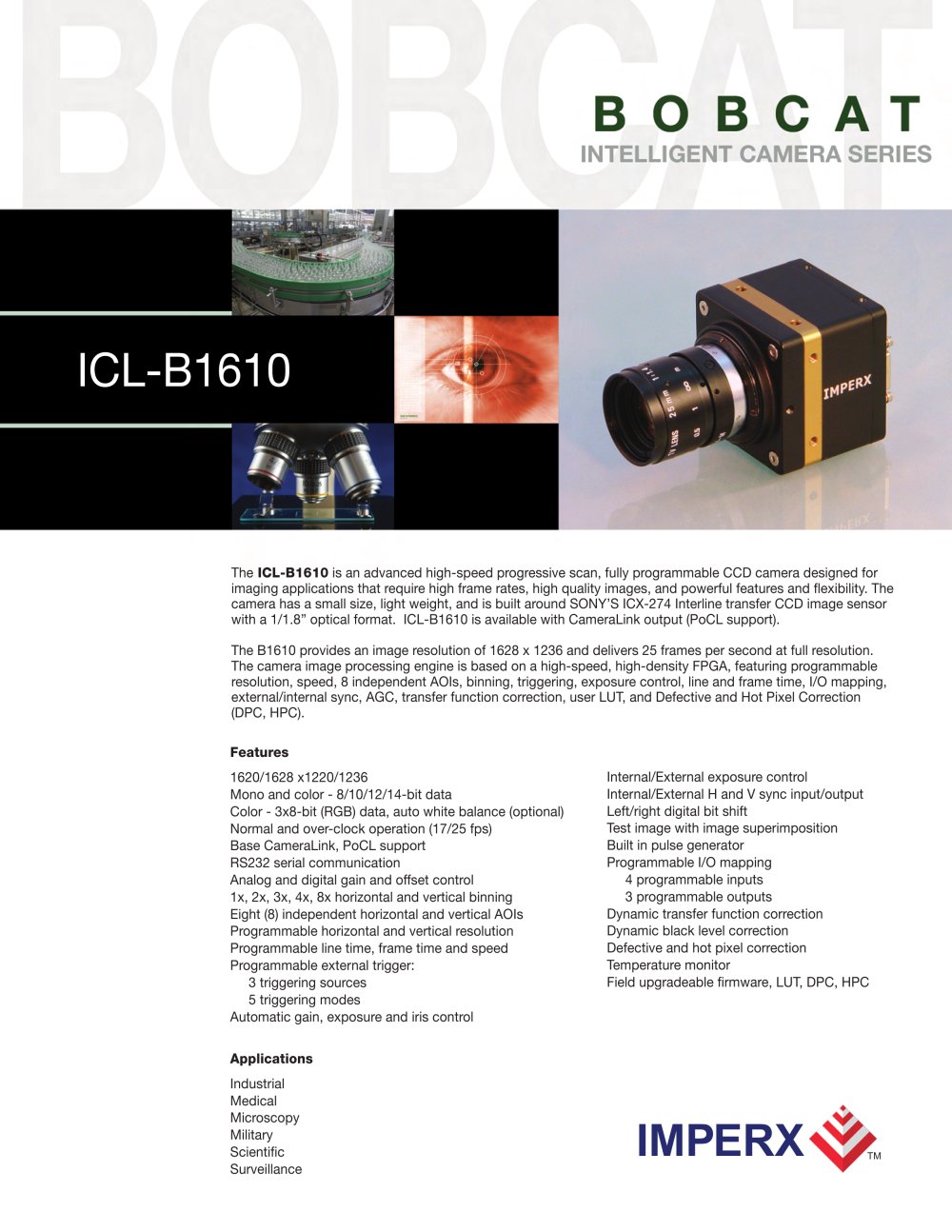

IMPERX TM Features 1620/1628 x1220/1236 Mono and color - 8/10/12/14-bit data Color - 3x8-bit (RGB) data, auto white balance (optional) Normal and over-clock operation (17/25 fps) Base CameraLink, PoCL support RS232 serial communication Analog and digital gain and offset control 1x, 2x, 3x, 4x, 8x horizontal and vertical binning Eight (8) independent horizontal and vertical AOIs Programmable horizontal and vertical resolution Programmable line time, frame time and speed Programmable external trigger: 3 triggering sources 5 triggering modes Automatic gain, exposure and iris control The ICL-B1610 is an advanced high-speed progressive scan, fully programmable CCD camera designed for imaging applications that require high frame rates, high quality images, and powerful features and flexibility. The camera has a small size, light weight, and is built around SONY’S ICX-274 Interline transfer CCD image sensor with a 1/1.8” optical format. ICL-B1610 is available with CameraLink output (PoCL support). The B1610 provides an image resolution of 1628 x 1236 and delivers 25 frames per second at full resolution. The camera image processing engine is based on a high-speed, high-density FPGA, featuring programmable resolution, speed, 8 independent AOIs, binning, triggering, exposure control, line and frame time, I/O mapping, external/internal sync, AGC, transfer function correction, user LUT, and Defective and Hot Pixel Correction (DPC, HPC). Internal/External exposure control Internal/External H and V sync input/output Left/right digital bit shift Test image with image superimposition Built in pulse generator Programmable I/O mapping 4 programmable inputs 3 programmable outputs Dynamic transfer function correction Dynamic black level correction Defective and hot pixel correction Temperature monitor Field upgradeable firmware, LUT, DPC, HPC ICL-B1610 Applications Industrial Medical Microscopy Military Scientific Surveillance

IMPERX TM Specifications for Bobcat ICL-B1610 Spectral Response Power Requirements 12V DC, (10V min, 15V max) 180 mA steady, 1.5 A inrush 2.1W, PoCL Mechanical Dimensions Accessories PS12V04: Power Supply (sold separately) For specific details and ordering information, consult the camera user’s manual or contact us at [email protected]. Copyright © 2009, Imperx, Inc. Product information subject to change without notice. Rev. 1.0, 05/20/09 Imperx Incorporated • 6421 Congress Avenue • Boca Raton, FL 33487 • USA Phone: +1-561-989-0006 • 1-866-849-1662 • Fax: +1-561-989-0045 www.imperx.com • [email protected]...
