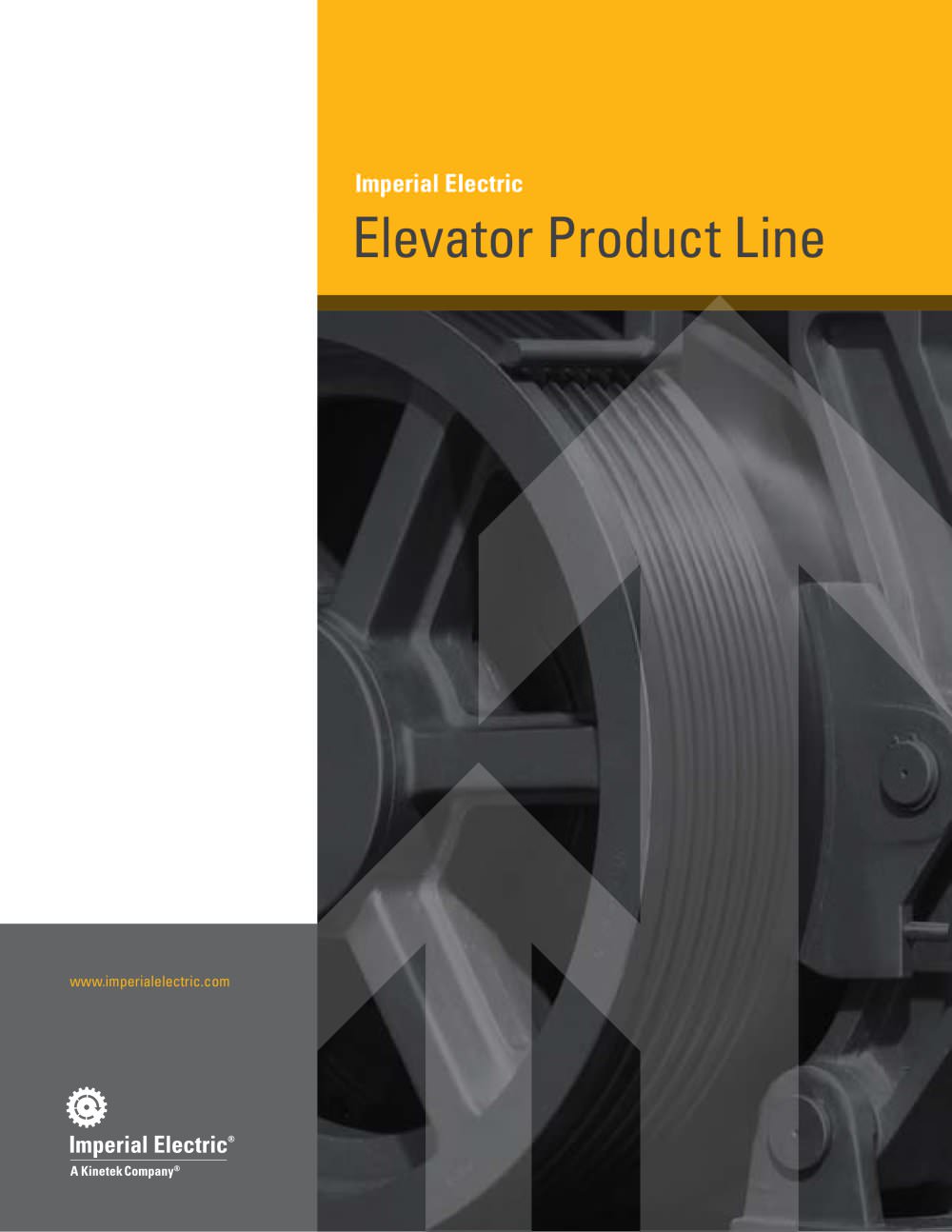

Imperial Electric Elevator Product Line
32Pages

Imperial Electric Elevator Product Line

Table of Contents Gearless Elevator Machines Gearless AC Machines Geared Elevator Machines AC Hoist Motors Flange Motors Motor Generator Sets Door Operator Motors The Imperial Electric Company is a manufacturer of Permanent Magnet Hydraulic Elevators AC Submersible Hydraulic Motors Motors, Gearmotors, AC and Machine And Motor Accessories Flexible Couplings and Adapters Elevator Machine Accessories DC Elevator Motors, Generator Sets, AC Induction Motors, Vacuum Motors Diagrams Dimensional Diagrams and Transaxle Drive Systems. Kinetek Global Manufacturing

Efficiency in Motion With over one hundred years of experience in electrodynamic devices, Imperial Electric can supply you with a complete line of high-performance motors and drive systems to keep your products in motion, and performing to specifications.

Gearless AC Machines Frame 400, 500, 800 Series Compact design, high efficiency and extreme reliability have confirmed the Imperial Electric Gearless AC Machines to be a favorite in the industry. Models available: Frame 400 Series, 500 Series, LS Series and 800 Series. Compact design, high efficiency and extreme reliability have confirmed the Imperial Electric Gearless AC Machines to be a favorite in the industry. Models available: Frame 400 Series, 500 Series, LS Series and 800 Series. Unlike traditional induction motors that lose efficiency at lower speeds, Imperial Electric gearless AC...

Frame 400 Series: 472, 475, 478 ADDITIONAL FEATURES MODEL 472 • 682 ft.-lbs. brake torque per shoe • 1,400 ft.-lbs. brake torque per shoe • 6,600 lbs. maximum sheave shaft load • 5–10mm undercut U grooves for single wrap • 11,025 lbs. maximum sheave shaft load • 8–10mm undercut U grooves single wrap • 1,012 lbs. • 734 ft.-lbs. brake torque per shoe • 11,000 lbs. maximum sheave shaft load Frame 470 has the capacity to lift 1,375 to 4,000 lbs. at 100 to 500 fpm with 2:1 roping. • 6–10mm undercut U grooves single wrap Frame 400 Series 2:1 duty table FPM All specifications at 50% counterweight....

Frame 500 Series: 522, 525 ADDITIONAL FEATURES MODEL 522 • 1,105 ft.-lbs. brake torque per shoe • 2,215 ft.-lbs. brake torque per shoe • 17,600 lbs. maximum sheave shaft load • 22,000 lbs. maximum sheave shaft load • 20 inch or 25 inch sheave • 7-1/2 inch V grooves single wrap • 7-1/2 inch or 6-5/8 inch V grooves single wrap Frame 500 Series 1:1 duty table Frame 520 has the capacity to lift 2,000 to 3,500 lbs. at speeds to 700 fpm with 1:1 roping or 2,200 to 6,500 lbs. at speeds to 700 fpm with 2:1 roping. All specifications at 50% counterweight and 25 inch sheave. Consult Imperial Electric...

Frame LS Series: 478-LS, 522-LS, 525-LS ADDITIONAL FEATURES MODEL 478-LS • 1,111 ft.-lbs. brake torque per shoe • 3,000 ft.-lbs. brake torque per shoe • 11,025 lbs. maximum sheave shaft load • 22,000 lbs. maximum sheave shaft load • 5-1/2 inch V grooves single wrap • 7–1/2 inch or 6-5/8 inch V grooves single wrap MODEL 522-LS • 3,275 lbs. • 1,868 ft lbs. brake torque per shoe • 17,600 lbs. maximum sheave shaft load Frame LS Series has the capacity to lift 1,000 to 3,500 lbs. at traditional geared speeds from 100 to 450 fpm with 1:1 roping. • 20 inch sheave • 7-1/2 inch V grooves single wrap...

Frame 800 Series: 805, 808, 808-HD ADDITIONAL FEATURES MODEL 805 • 40,000 lbs. maximum sheave shaft load • 12–5/8 inch on 26 inch sheave or 14 - 9/16 inch on 22.5 inch U grooves double wrap. V groove available consult Imperial Electric. • 2,400 ft.-lbs. brake torque per shoe • 40,000 lbs maximum sheave shaft load • 12–5/8 inch on 26 inch sheave or 14–9/16 inch on 22.5 inch U grooves double wrap. V grooves available consult Imperial Electric. • 60,000 lbs. maximum sheave shaft load • 12–5/8 inch on 26 inch sheave or 14–9/16 inch 22.5 inch U grooves double wrap. V groove available consult...

Gearless DC Machines Frame 590 Series: 591, 593, 596, 598 FEATURES • Self ventilated – blower not required • Gearless traction elevators • Single or double wrap • Split-frame construction available • Factory breakdown available • Gearless traction elevators • Capacity to 8,500 lbs. – 2:1 rope, 4,500 lbs. – 1:1 rope Quiet operation, heavy duty construction, and extreme reliability have confirmed the Imperial Electric Gearless DC Machines to be a favorite in the industry. Models available: 591, 593, 596, and 598. • Single or double wrap • Quiet operation • Rugged construction • Re-greasable...

(including VVVF) Industry recognized performance and durability for all popular AC machine designs. The Imperial Electric AC Hoist Motor is renowned for enduring dependability. Cast iron construction, hot rolled steel shaft, and re-greasable ball bearings contribute to a motor design that you can trust through long years of service. Rugged and dependable, Imperial Electric AC hoist motors enjoy a well deserved reputation for quality and durability. A range of high and low slip single speed motor designs for VVVF drive applications are offered in rpm ranges from 600, 720, 900, 1,200 and...

Flange Motors Direct replacement motors for most popular machines. Heavy duty, replacement motors for your existing machines. Imperial Electric’s line of AC and DC Flange Hoist Motors directly replace existing motors on virtually all popular machines. Imperial Electric motors are the definition of heavy duty construction, designed to provide reliable service year after year. Direct mounts for: • Long life expectancy • Heavy duty construction • Drop in replacement availability • Quiet operation • Northern TW151 through TW340 • Serge • Mounts for Flexible Couplings (see page 18) • Drip-proof...

Frames 284AT through 409AT FEATURES • Drip-proof enclosure • Quiet operation • 10 through 100 HP Rugged and dependable, Imperial Electric AC hoist motors enjoy a well deserved reputation for quality and durability. • Highly reliable • Proven performance • Drip-proof construction standard, TENV available • Dual ball bearing construction • Re-greasable bearings • Geared traction elevators • Class A temperature rise for elevator duty • Shunt wound standard • Compound wound available • Special wound available Motor Generator Sets FEATURES • Drip-proof enclosure • Drop in replacement...
