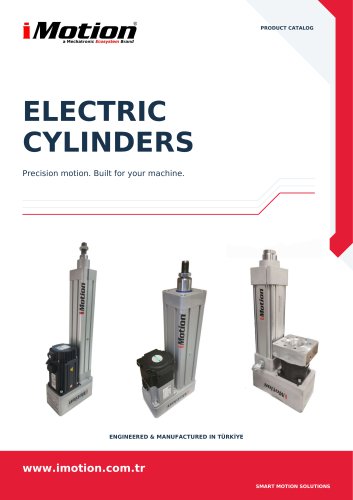

PRODUCT CATALOG ELECTRIC CYLINDERS Precision motion. Built for your machine. ENGINEERED & MANUFACTURED IN TÜRKİYE www.imotion.com.tr SMART MOTION SOLUTIONS

i Motion a Mechatronic Ecosystem Brand WHY IMOTION / INTELLIGENT MOTION Engineered and manufactured in Turkiye, iMotion combines mechanical engineering, application-driven design and precision manufacturing. One partner takes responsibility for your motion solution. Engineering for your application Custom stroke, mounting and rod interfaces for OEM machines and production facilities. Choose your servo motor Flexible integration supports a wide range of servo motor brands and control architectures. Precision and repeatability Control position, speed and motion profiles around the needs of your...

i Motion a Mechatronic Ecosystem Brand IMT / STANDARD INDUSTRIAL SERIES The standard platform for industrial motion. ISO 15552 compatible electric cylinders with precision ball screw motion and flexible motor integration. Seven frame sizes cover nominal working forces up to 30,000 N, depending on screw selection. CORE FEATURES ■ ISO 15552 industrial mounting standard ■ Precision ball screw drive ■ Anti-rotation protected piston rod ■ Inline or parallel motor mounting 30 kN Maximum nominal force in range IP54 IP65 protection available as an option CUSTOMIZATION APPLICATIONS Extended rod and special...

i Motion a Mechatronic Ecosystem Brand Maximum speeds are the current website-listed values and depend on motor speed and application conditions. Screw load ratings are not the permissible working force of the complete cylinder.

a Mechatronic Ecosystem Brand IMTK / COMPACT SERIES Compact, reliable electric motion for serial production machines. Simplified mechanics support straightforward integration and cost-efficient machine building. CORE FEATURES ■ High-efficiency ball screw drive ■ Repeatable positioning / multi-axis motion ■ Anti-rotation protected piston rod ■ Inline and parallel motor layouts IMTK standard maximum stroke 40: 600 mm / 63: 1,000 mm IMTK TECHNICAL SPECIFICATIONS APPLICATIONS & OPTIONS OEM and packaging machines ■ Assembly and transfer ■ Pick and place ■ Electronics, plastics and textile machinery...

i Motion a Mechatronic Ecosystem Brand Clean motion.Corrosion-resistant performance. For clean, humid and corrosion-sensitive production environments. Stainless components and a PTFE wiper with a Viton secondary seal help protect the rod and front sealing area. CORROSION-RESISTANT DESIGN CORE FEATURES ■ PTFE wiper + Viton secondary seal ■ Stainless steel rod and head screws ■ Ball screw drive / anti-rotation rod APPLICATION ENVIRONMENTS Food and beverage ■ Packaging ■ Pharmaceutical and cosmetic equipment ■ Medical devices ■ Electronics ■ Wash-down and humid processes ■ Cold storage ■ Corrosion-sensitive...

i Motion a Mechatronic Ecosystem Brand IMTXH / IMTXHT / IMTR High force. Precise control. Heavy-duty platforms for pressing, forming and force-controlled processes. Choose rolled ball screw, ground ball screw or roller screw technology to match load, duty cycle and service life. Ball screw / roller screw DRIVE OPTIONS Rolled ball screw Ground ball screw Roller screw CORE FEATURES ■ Reinforced heavy-duty mechanical structure ■ High rigidity for pressing and force control ■ Ball screw and roller screw drive options ■ Motor-independent servo integration TECHNICAL SPECIFICATIONS Maximum speed depends...

Precision motion. Built for your machine. LET'S MOVE YOUR NEXT PROJECT. ENGINEERED & MANUFACTURED IN TÜRKİYE
