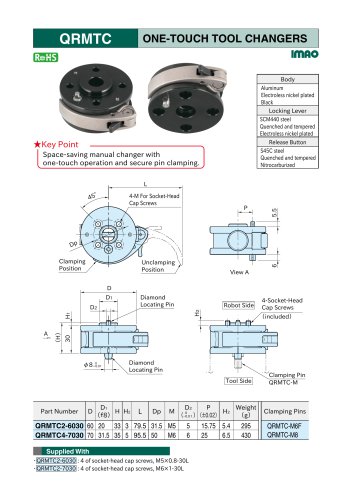

ONE-TOUCH TOOL CHANGERS Electroless nickel plated Black_ Locking Lever SCM440 steel Quenched and tempered Electroless nickel plated Release Button S45C steel Quenched and tempered Nitrocarburized ★ Key Point - Space-saving manual changer with one-touch operation and secure pin clamping. Part Number ■|QRMTC2-6030|: 4 of socket-head cap screws, M5X0.8-30L ■ IQRMTC2-70301: 4 of socket-head cap screws, M6X1-30L

■Can be mounted directly to ISO robot flange without adapter. ■ Dual-sided tapered clamping jaws provide strong clamping with minimal operating force. ■The lever features a safety lock that prevents accidental release. ■Manual tool changer ideal for collaborative robots. Technical Information ■Repeatability ±0.05mm Insert the clamping pin with the lever in the unclamping position. Open the lever to the unclamping position and remove the clamping pin. The pin remains locked while the lever is in the holding position. Close the lever to the clamping Press and hold the release position. The lever...

Part Number ■ Mounting Hole Dimensions Tool Changers SCM440 steel Quenched and tempered Electroless nickel plated ■Application Example
