Wire harness pull tester LH-500N
1 /3Pages

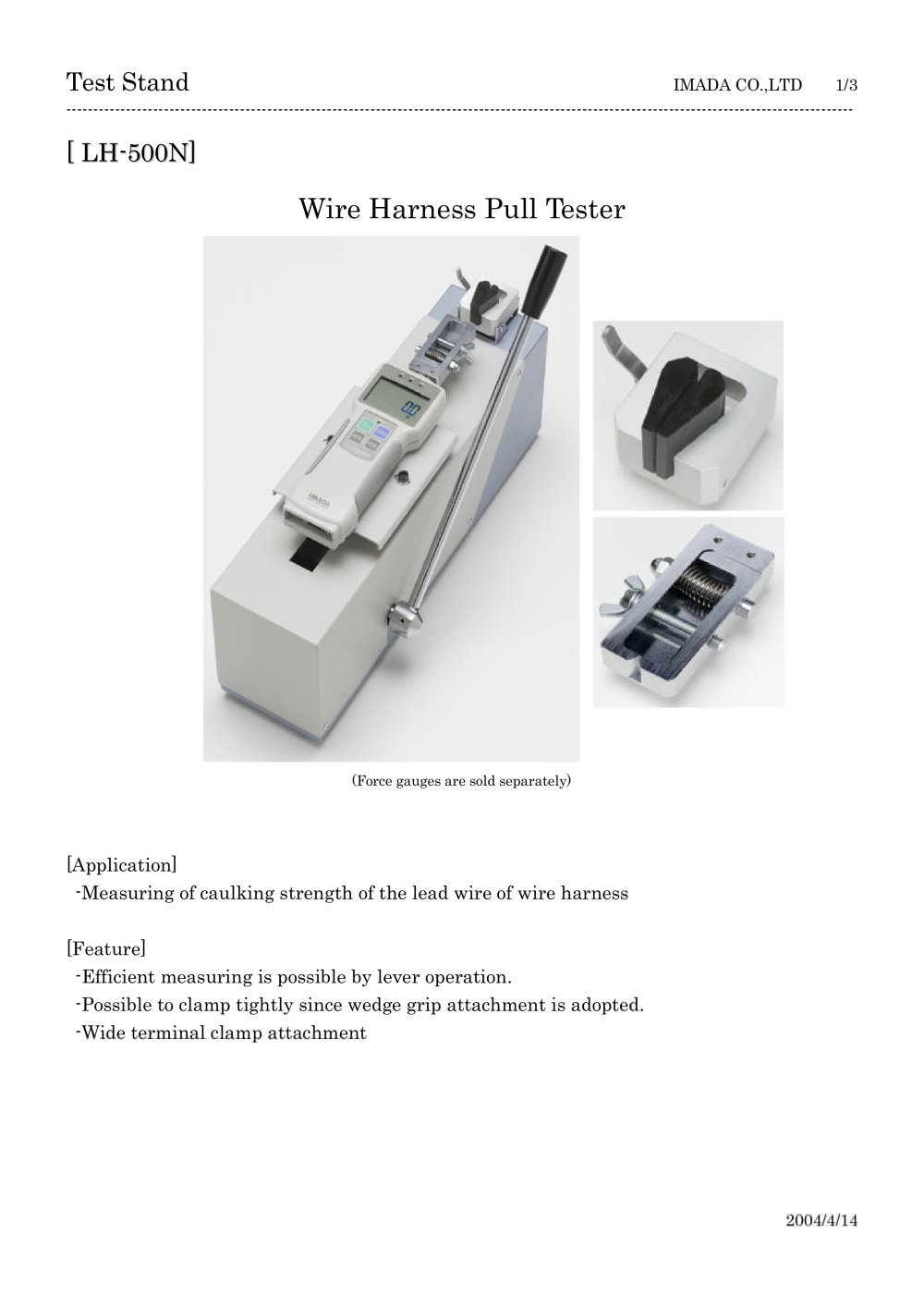

Wire harness pull tester LH-500N
1 /3Pages
Catalog excerpts
[LH-50 Specifications] Model LH-500N Capacity 500N Stroke 85mm Dimension See below dimension Weight Approx.10.5kg With force gauge Digital Z series, DPS series Mechanical PS and FB series [Wire clamp attachment specification] Model CW-500N Capacity 500N Clamp principle Wedge Opening width 5mm Dimension See next page Weight Approx.220g [Terminal clamp attachment specification] Model CH-500N Capacity 500N Opening width 6mm Dimension See next page Weight Approx.210g [Dimension LH-500N] > 2004/4/14 IMADA CO.,LTD 2/3 size="-1">
Open the catalog to page 2
[Fixing span to a table] [Dimension of wire clamp attachment] [Dimension of terminal clamp attachment] [Note] -Force gauge (sold separately) is required for actual measuring. Please order Imada products. -All information is subject to change without prior notice. > 2004/4/14 IMADA CO.,LTD 3/3 size="-1">
Open the catalog to page 3All IMADA catalogs and technical brochures
