Overview

This document excerpt from ILME provides detailed technical specifications, product descriptions, and installation guidelines for various electrical connector inserts, accessories, and enclosures. The products covered include multipole connectors, spring terminal connections, crimp contacts, coding pins, bridges for motor connections, and protective hoods.

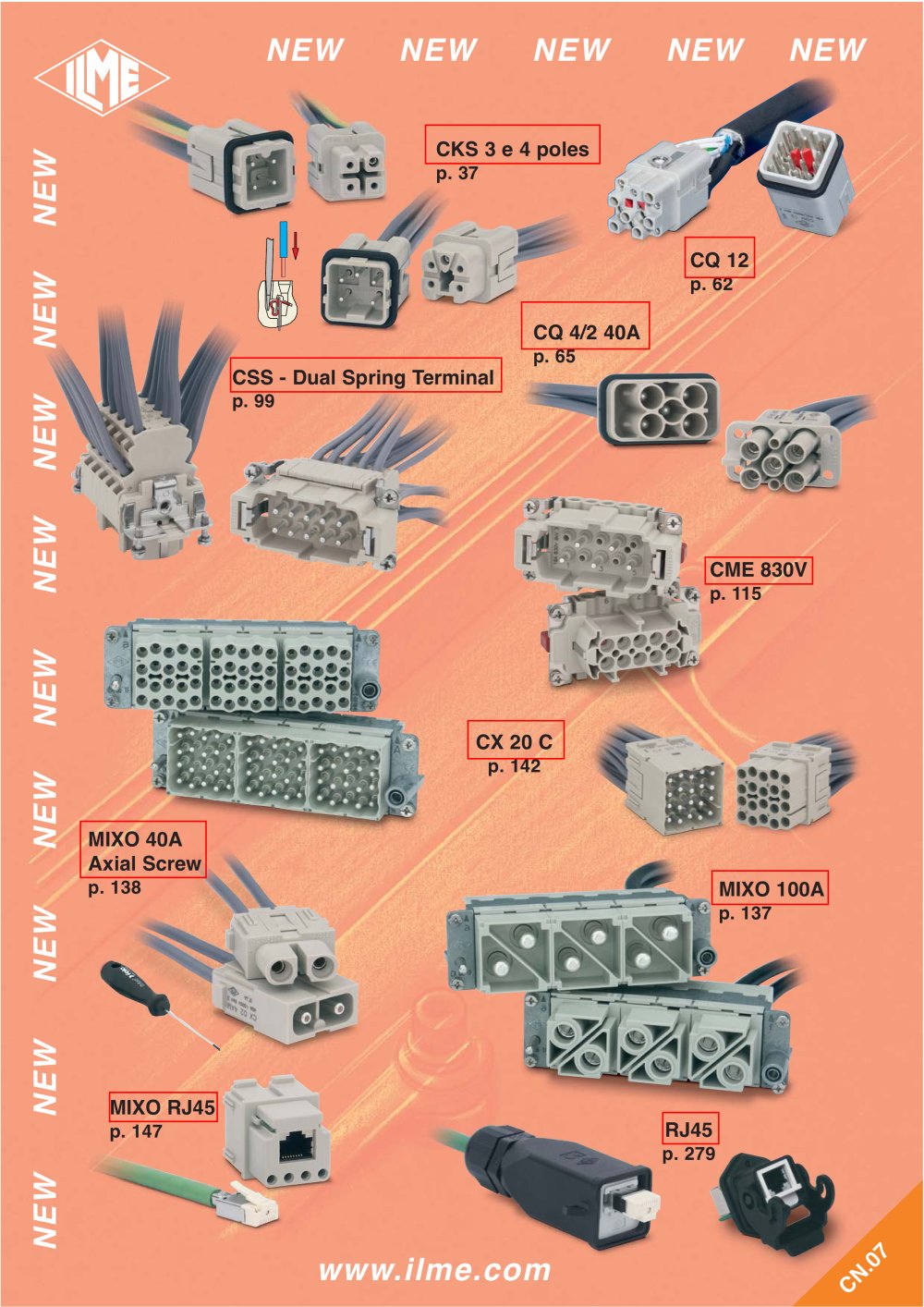

1. CKS 3 and 4 Poles Spring Terminal Connectors

• Rated for 10A, 400V, 4kV impulse voltage, compliant with EN 61984.
• Available in 3 poles + earth (m) and 4 poles + earth configurations.
• Female (CKSF) and male (CKSM) inserts with spring terminal connections.
• Wire size range: 0.14 to 2.5 mm² (AWG 26 to 14), usable section up to 1.5 mm² (AWG 16).
• Rear top wire entry for easier wiring.
• Certifications: UL and CSA (pending for some).
• Enclosure sizes: insulating (pages 153-154), metallic (pages 155-156), aggressive environments (page 157), EMC (page 158).

2. CQ 12 Poles Crimp Connection Inserts

• Rated for 10A, 400/690V, 6kV impulse voltage, compliant with EN 61984.
• Available as female (CQF 12) and male (CQM 12) inserts with crimp contacts.
• Contacts are silver or gold plated, suitable for wire sizes 0.14 to 2.5 mm² (AWG 26 to 14).
• Contacts must be ordered separately; crimping instructions and tools detailed on pages 296, 300, 304, 306, 308.
• Includes seals and screws ensuring IP66/IP67 protection.
• Coding pins (CR Q12) allow 16 different mating combinations to prevent incorrect coupling.
• Accessories include coding pins and bridges for delta/star motor connections.

3. Coding Pins and Accessories

• Coding pins (CR CPQ, CR CP, CR Q12) prevent incorrect mating between connectors of different series or functions.
• Multiple coding pins can be combined to create numerous unique mating configurations.
• Recommended to use coding pins even when not strictly required to reduce connector movement and contact damage, complying with DIN 43 652 standard limiting angular fluctuation to ±5°.

4. Bridges for Delta and Star Motor Connections

• Bridges with female 10A silver-plated contacts for delta (CR BDE) and star (CR BST) connections.
• Delta bridge: 2 contacts; star bridge: 3 contacts.
• Installation involves cutting and stripping wires, crimping contacts with CRPZ pliers and CRD matrix, applying heat-shrink tubes at 90-100°C, and inserting bridges as per wiring diagrams.
• Suitable for wire cross-sections 1.5 to 2.5 mm² (AWG 16-14).

5. Protective Hoods and Enclosures

• Inclined hoods with 2 levers available for side and top wire entry, compatible with enclosure size “104.27”.
• Central lever hoods also available with top or side entry, high construction.
• Hoods designed for various insert series including CD, CDD, CQE, CN, CCE, CNE, CSS, CMSE, CMCE, CX, and MIXO.
• CZ and MZ enclosures available in standard versions for sizes “49.16” and “66.16”, with single lever hoods and top entry options.
• Dimensions and part numbers provided for ordering; dimensions are indicative and subject to change.

6. General Notes and Recommendations

• Dimensions indicated throughout are non-binding and may change without notice.
• For maximum current load and detailed electrical characteristics, refer to load curve sections (pages 28 and 30).
• Stripping lengths and wire preparation details are on page 13.
• Use of coding pins is recommended to avoid damage and ensure correct mating.
• Products comply with relevant standards including EN 61984 and DIN 43 652.
• Certifications include UL and CSA, with some pending.

Summary

This technical excerpt provides comprehensive information on ILME’s multipole connectors and accessories, emphasizing electrical ratings, mechanical dimensions, wiring instructions, and protective solutions. It highlights the importance of correct coding and installation practices to ensure safety, reliability, and compliance with international standards.
