Needle Bearing Series


Catalog excerpts

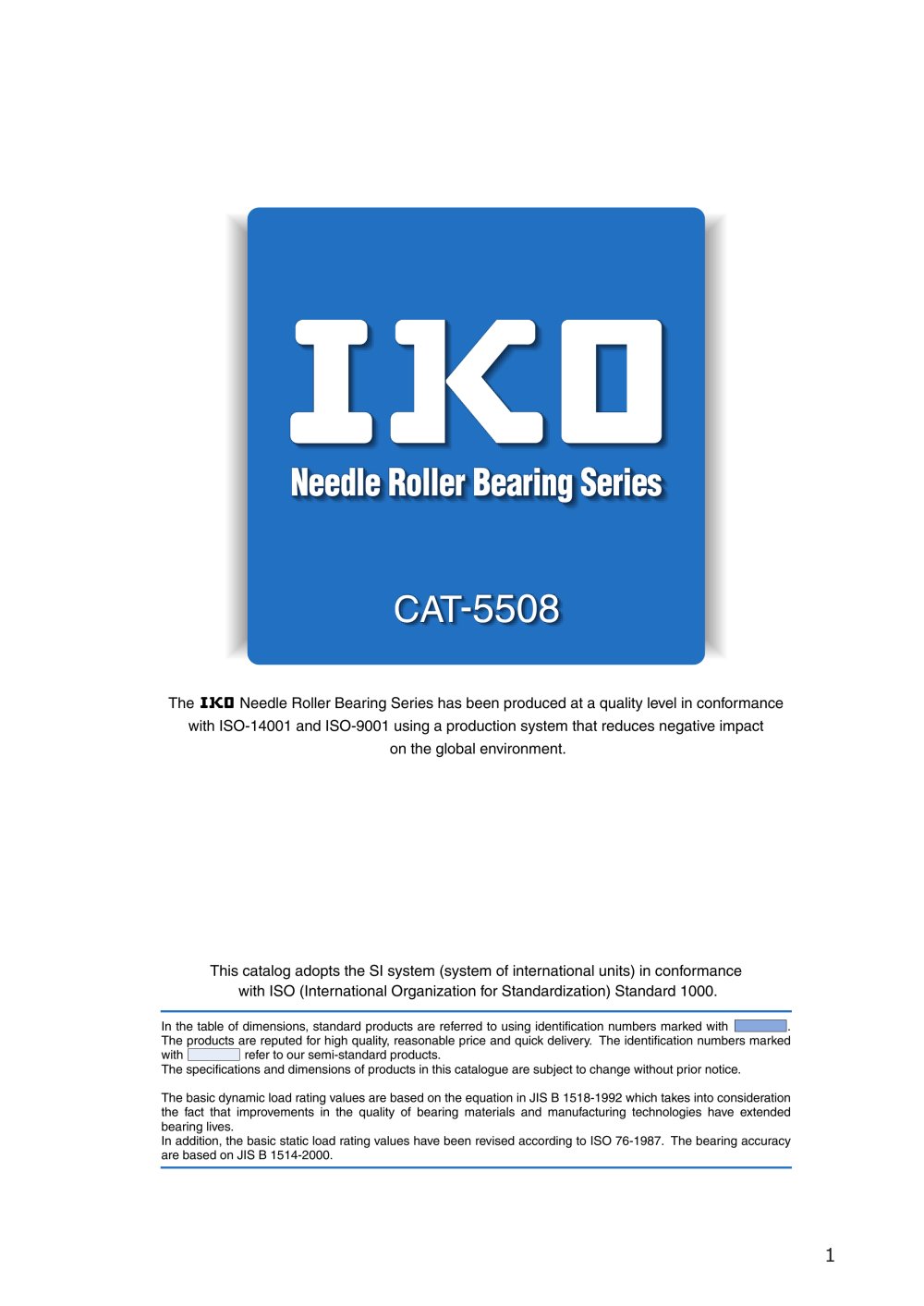

Needle Bearing Series - 1

The Needle Roller Bearing Series has been produced at a quality level in conformance with ISO-14001 and ISO-9001 using a production system that reduces negative impact on the global environment. This catalog adopts the SI system (system of international units) in conformance with ISO (International Organization for Standardization) Standard 1000. In the table of dimensions, standard products are referred to using identification numbers marked with . The products are reputed for high quality, reasonable price and quick delivery. The identification numbers marked with refer to our semi-standard products. The specifications and dimensions of products in this catalogue are subject to change without prior notice. The basic dynamic load rating values are based on the equation in JIS B 1518-1992 which takes into consideration the fact that improvements in the quality of bearing materials and manufacturing technologies have extended bearing lives. In addition, the basic static load rating values have been revised according to ISO 76-1987. The bearing accuracy are based on JIS B 1514-2000. 1

Open the catalog to page 1
Needle Bearing Series - 2

.. 3 M 1 M47 M61 TAETLAEBAEBHA KT KT…EGEKTV…EG NAETAFIETRIEBRI NAF NAGENAUETRUENAS NTBEASEAZKEWSEGS NAXENBXENATAENATB IRTEIRBELRTELRB CFENUCFECFSECR NASTENARTENURT CRBFECRBHECRBCECRBECRBSECRBT SBEGEESBB PBEPHSEPOSEPHSBEPOSBEPHSA LHSAELHS SNAESNMESNPT OSEDSEWREARENeedle Roller Description of Each Series & Table of Dimensions Shell Type Needle Roller Bearings Needle Roller Cages for general usage Needle Roller Cages for engine connecting rods Machined Type Needle Roller Bearings Needle Roller Bearings with separable cage Roller Bearings Thrust Bearings Combined Type Needle Roller Bearings...

Open the catalog to page 2
Needle Bearing Series - 3

A2 Nippon Thompson Co., Ltd. is a bearing manufacturer that launched the technical development of needle roller bearings for the first time in Japan and is proud of the high quality level and abundant varieties of its products. Needle roller bearings are bearings for rotary motion that incorporate needleshaped thin rollers instead of ordinary bearing balls or rollers. Compared with other rolling bearings, they are small-sized and lightweight but have a large load capacity. They are widely used with high reliability in the fields of automobiles, industrial machinery, OA equipment, etc. as...

Open the catalog to page 3
Needle Bearing Series - 4

.. Radial ball bearings Thrust ball bearings Radial roller bearings Thrust roller bearings Roller bearings Ball bearings Metals, bushings, others Deep groove ball bearings Angular contact ball bearings Self-aligning ball bearings Others Thrust ball bearings with flat back face Thrust ball bearings with aligning seat washer Double-direction angular contact thrust ball bearings Others Needle roller bearings Cylindrical roller bearings Tapered roller bearings Self-aligning roller bearings Others Thrust needle roller bearings Thrust cylindrical roller bearings Thrust tapered roller bearings...

Open the catalog to page 4
Needle Bearing Series - 5

.. Crossed Roller Bearings are special shape bearings that can simultaneously receive loads in all directions with a single bearing. Bearings other than rolling bearings, such as self-aligning Spherical Bushings that can support radial loads and axial loads and PILLOBALLs and L-Balls that are used for link mechanisms, are also available. Cylindrical Roller Cam Followers Cylindrical Roller Followers C-Lube Cam Followers A6 Classification of Bearings Combined Type Needle Roller Bearings Thrust Roller Bearings Shell Type Needle Roller Bearings Needle Roller Cages Machined Type Needle Roller...

Open the catalog to page 5
Needle Bearing Series - 6

.. Machined Type Needle Roller Bearings have an outer ring made by machining, heat treatment, and grinding. The outer ring has stable high rigidity and can be easily used even for light alloy housings. These bearings are available in various types and optimally selectable for different conditions such as heavy loads, high-speed rotation and low-speed rotation. They are most suitable for general-purpose applications. Radial Bearing Page D1 In Needle Roller Bearings with Separable Cage, the inner ring, outer ring and Needle Roller Cage are combined, and they can be separated easily. This type...

Open the catalog to page 6
Needle Bearing Series - 7

.. Cam Followers Cam Followers are bearings with a stud incorporating needle rollers in a thick walled outer ring. They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces. Various types of Cam Followers are available. They are widely used as follower bearings for cam mechanisms and for linear motions. Follower Bearing Page Roller Followers Roller Followers are bearings in which needle rollers are incorporated in a thick walled outer ring. These bearings are designed for outer ring rotation, and the outer rings run directly on mating track...

Open the catalog to page 7
Needle Bearing Series - 8

.. Seals for Needle Roller Bearings Seals for Needle Roller Bearings have a low sectional height and consist of a sheet metal ring and special synthetic rubber. As these seals are manufactured to the same sectional height as Needle Roller Bearings, grease leakage and the penetration of foreign particles can be effectively prevented by fitting them directly to the sides of combinable bearings. Component Part Page L1 Cir-clips for Needle Roller Bearings Cir-clips for Needle Roller Bearings have been specially designed for needle roller bearings on which, in many cases, generally available...

Open the catalog to page 8
Needle Bearing Series - 9

.. .. ` ` ` ` Bearing series Appearance Direction of motion Load direction and capacity Allowable rotational speed Sectional height Reference Friction page Thrust Bearings Combined Type Needle Roller Bearings Cam Followers Roller Followers Needle roller bearings Roller bearings With thrust ball bearing With thrust roller bearing With angular contact ball bearing With three-point contact ball bearing Caged type Full complement type Separable caged type Non-separable caged type Non-separable full complement type A14 Bearing series Appearance Direction of motion Load direction and capacity...

Open the catalog to page 9
Needle Bearing Series - 10

.. An example of procedure for bearing selection œ Identify the machine and place where the bearing is to be used. œ Confirm the requirements for bearings such as required bearing performance, and also confirm the operating conditions and special environment conditions. œ Select the bearing type suitable for the operating conditions by considering load direction and magnitude, rigidity, friction, allowable rotational speed, bearing space, etc. See page A5 œ Select the bearing dimensions by calculating bearing load, life, static safety factor, etc. 1 2 3 4 5 6 7 8 9 Bearings are available in...

Open the catalog to page 10
