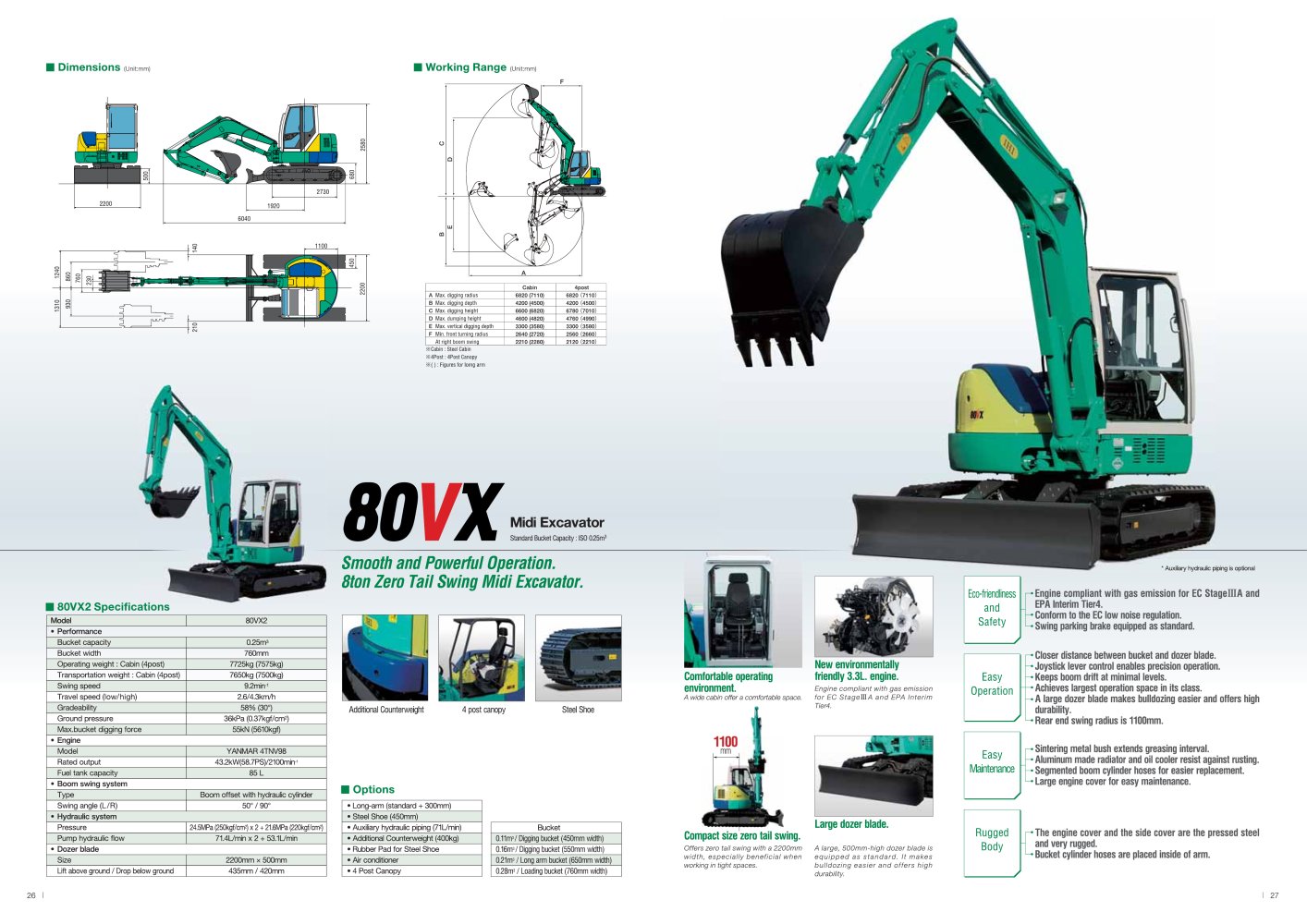

80VX Midi Excavator Standard Bucket Capacity : ISO 0.25m3 Auxliary hydrauic piprig is optional Smooth and Powerful Opration. 8ton Zro Tail Swing Midi Excavator. Eco-friendliness and Safety 驕Engine compliant with gas mission for EC StageUJA and EPA Intrim Tier4. 驕 Conform to the EC low noise rgulation. Swing parking brake equipped as standard. 镕Closer distance between bucket and dozer blade. Joystick lever control enables prթcision opration. Keeps boom drift at minimal levels. 镕Achieves largest opration space in its class. A large dozer blade makes bulldozing easier and offers high durability. 镕 Rear end swing radius is 1100mm. Sintering mթtal bush extends greasing interval. Aluminum made radiator and oil cooler resist against rusting. Օ Segmented boom cylinder hoses for easier replacement. Large engine cover for easy maintenance. 180VX2 Spթcifications Model 80VX2 Performance Bucket capacity 0.25m3 Bucket width 760mm Operating weight : Cabin (4post) 7725kg (7575kg) Transportation weight : Cabin (4post) 7650kg(7500kg) Swing speed 9.2mrr1 Travel speed (low/high) 2.6/4.3km/h Gradeability 58% (30°) Ground pressure 36kPa(057kgf/cm2) Max.bucket digging force 55kN (5610kgf) Օ Engine Model YANMAR 4TNV98 Rated output 43.2kW(58.7PS)/2100mirr1 Fuel tank capacity 85L Boom swing System Type Boom offset with hydraulic cylhder Swing angle (L/R) 50°/90° Օ Hydraulic System Pressure 24.5MPa (250kgf/cm2) x 2 + 21.6MPa (220kgf/cn*) Pump hydraulic flow 71.4L/min x 2 + 53.117min Dozerblade Size 2200mm x 500mm Lift above ground / Drop below ground 435mm / 420mm 4 r Comfortable operating environment. A wide cabin offer a comfortable space. New environmentally friendly 3.3L. engine. Engine compilant with gas թmission for EC StageTRA and EPA Intrim Tier4. Additional Counterweight 4 post canopy Steel Shoe Option Easy Maintenance » Long-arm (standard + 300mm) Large dozer blade. » Steel Shoe (450mm) » Auxiliary hydraulic piping (71L/min) Bucket The engine cover and the side cover are the pressed and very rugged. 镕 Bucket cylinder hoses are placed inside of arm. 0.11m3/ Digging bucket (450mm width) Compact size zro tail swing. Offers zro tail swing with a 2200mm width, especially b驩nficiai when working in tight spaces. » Additional Counterweight (400kg) A large, 500mm-high dozer blade is equipped as standard. It ma/ces bulldozing easier and offers high durability. Rubber Pad for Steel Shoe 0.16m»/ Digging bucket (550mm width) 镕 Air conditioner 0.21m3 / Long arm bucket (650mm width) » 4 Post Canopy 0.28m3 / Loading bucket (760mm width) 26 27
