Crawler Crane CCH3000

Product catalog summary

Overview
The document outlines the technical specifications and features of a new 300-ton crane model, highlighting its operator-oriented design for enhanced safety and efficiency.

Specifications

Performance: The crane has a swing speed of 1.4 rpm, travel speed of 1.0/0.5 km/hr, and a gradeability of 30% (16.7º).
Engine: Equipped with a Cummins Inc. QSM11 diesel engine, featuring a 10.8L displacement, 280kW output, and 1,898Nm peak torque. Fuel capacity is 450L.
Load Hoist System: Utilizes an axial piston hydraulic motor with two-stage planetary gear reduction.
Boom Hoist System: Features a three-stage planetary gear reduction and wet type multi-disc brake.
Max Lifting Capacity: 300 metric tons at a 5.0m radius with a max boom length of 90m.

General Dimensions
Dimensions are specified with the basic boom in millimeters.

Standard Equipment
Includes essential instruments like an engine tachometer, hydraulic pressure gauge, and air conditioner.

Wire Rope
Details specifications for various hoisting and suspension ropes, including diameter and breaking strength.

Boom and Jib Composition
Standard combinations for boom lengths (18m to 90m) and jib boom lengths (13m to 37m) are provided.

Options
Various optional features are available for customization, including attachments and safety equipment.

Working Range and Lifting Loads
Describes the working range under no load and specifies rated lifting loads based on surface conditions.

Design Features
The crane includes a power-efficient hydraulic control system and easy engine room access. It features anti-rolling wire ropes and a 1.5m Auxiliary Jib for increased capacity.

Operator Comfort and Safety
Designed with wide visibility, deluxe control stands, and strategically placed controls for ease of operation.

Stability and Ground Bearing
Enhanced stability with 1270mm wide crawler shoes designed to prevent dirt accumulation.

Additional Information
Specifications may change due to technical improvements. Distributed by Kishi-Tokai Bldg., Tokyo, Japan.

Catalog excerpts

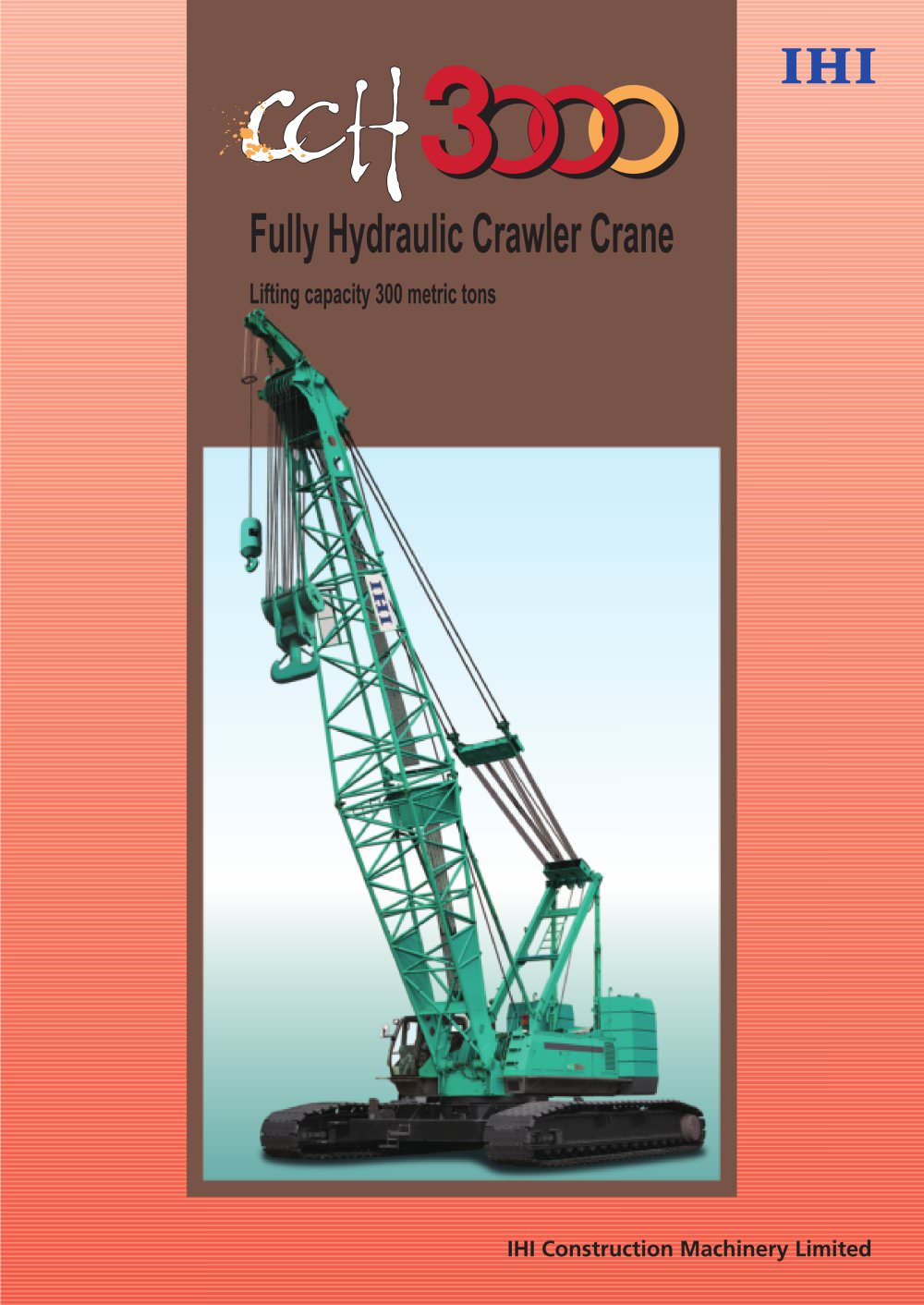

IHI Fully Hydraulic Crawler Crne Liftingcapacity300metrictons IHIConstructionMachineryLimited

Open the catalog to page 1

Crne General Dimensions (with basic boom) (Unit : mm) Spcifications Cr⩢ne spcifications Pertormanc* i/.rtxn tarai so«<s QndaaMv 30% (i&7^ Wm Cummira Inc. uodri □SM11 Type intorcoc** .droct i*x;Ton typa rjasol onona Tuf.,[JUA'KWtWC.t 10» RatodoulDut 2BO6W?J00Yrtn* e3?6P8^J00rDTd I.MeNm/MOftrtrf' Fuel Me cvndtv 12VX120AHX2DCS Lcod holst System (Main A Aux.) . \«: a ptelon tyfo Raounon rjoar T*o stago p鮴notary ^af 2-gnumd cylnoteai oYums on 2 mdMdual shaft MafVAuxttary drum h samo wKJtn. vrttn i oous typo Braka wbi tvpo nxiUdtoo Rafchel typa Boom hoiat Byatem Uotor Axtt piston tvpe fleoUSJon ojear...

Open the catalog to page 2

KVT_bigHead_WEB.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } .font5 { font:31.00pt "Arial", sans-serif; } .font6 { font:6.00pt "Arial Black", sans-serif; } .font7 { font:8.00pt "Arial Black", sans-serif; } .font8 { font:9.00pt "Arial Black", sans-serif; } .font9 { font:13.00pt "Arial Black", sans-serif; } .font10 { font:17.00pt "Arial Black", sans-serif;...

Open the catalog to page 3

Crne Working range (No loaded condition) ton boom * «uxtey ifc Ai,:. Ii.vy jib Mm boom (max«) 40 45 60 65 WortWo r ad ta (m) ~S 87m boom 64 m boom \ -Si 7%rr\ boom F5m boom 72m boom_ On boom_ 66m boom 63m boom \ 60m boom 57m boom 54m boom \ 61m boom \ 48m boom \ 45m boom 42m boom 39m boom \ 36m ℻oct1 s 33m boom 30m boom 27m Boom 24m boom 2im boom 18m boom fbwic) «towttto k>r aux. 4

Open the catalog to page 4

Crne HHMWli 1. Ready for disassembly 2. Removing the attachiment 3. Removing the carbody weights & counter weights 7. Slewing the upper machine 8. Jack up 9. Loading the trailer 10. Loading the base machine 11. Folding the jack f rame 12. Figure of transport 13. Figure of transport (rf⩩rence) 10

Open the catalog to page 10

Crne UPGRADEDOPERATORORIENTEDDESIGNENSURESSAFEANDEFFECTIVEOPERATIONOFTHENEW300-TONMODEL Highest rope speeds in ils class (120 meter/minute load hoist/lowering) 01.5mAuxiliaryJib(2partlines) The new 1.5m Auxiliary Jib can be added on to the CCH300<X This new auxiliary jib Power-efficientHydraulicControlSystem Two variable dplacement pumps and one gear purrp incorporated Into the engme provide the most effective power output. Hydraulic flow and pressure are automatically regulated to dehver Ngh flow and low pressure for llghter loadr and low flow and high pressure for heavier load. WideVisibilityandDeluxeControlStands...

Open the catalog to page 11

IHI Construction Machinery Limited rS^-4. Nishikfirrala Cta-Ku. : 1X8644 Fax: 81 3 5714 8840. U4 9b/7,JfiPfiN Spocffcatons are Eubjoct to charge wtrxx/ race du© totecftrfcfii ImprovemenTtB or rrxxlffc»Oon& DWtoutodov UGUTSSRvACOU Printed in Japan IK1300B0903LL10

Open the catalog to page 12
