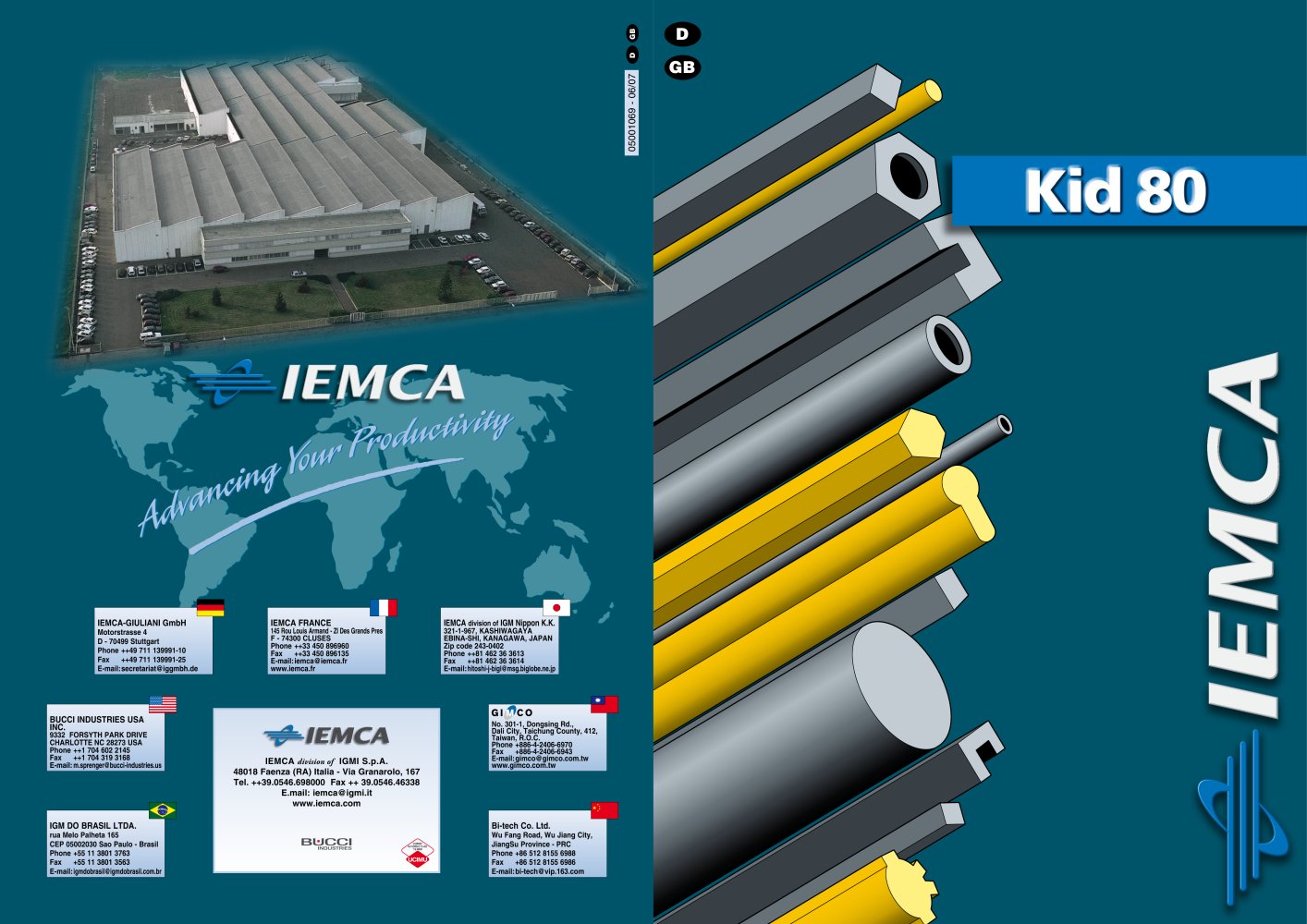

Overview: The document provides technical specifications and operational details for the KID 80 automatic bar feeder, designed for use with single-spindle lathes. It highlights the feeder's versatility, mechanical design, and suitability for small to medium batch production environments.

Specifications: The KID 80 can handle bar diameters ranging from 5 to 80 mm and lengths from 90 mm to 1615 mm, ensuring compatibility with the lathe spindle length. The feeder operates with a power supply voltage of 230/400 volts and has an installed power of 2 KW. It weighs 580 kg and can accommodate a maximum bar weight of 60 kg.

Features: The feeder is entirely mechanical, eliminating the need for compressed air connections. It is equipped with a bar diameter selection device with a digital display for easy adjustment. The system includes two asynchronous AC motors for driving the guide channel and bar loading device, and an inverter-driven motor for the bar pusher.

Operational Benefits: The KID 80 offers rapid changeover between bar diameters, enhancing efficiency in production environments with frequent work changeovers. The operator panel allows for simple programming, and the CNC control ensures flexibility and ease of use. The feeder can be loaded without halting production, and its design allows for easy maintenance.

Optional Features: The feeder offers optional axial or transversal displacement for easy lathe maintenance. A roller version is available for handling different bar shapes, and a patented bar drop control optimizes feeder operation.

Important Notes: The document notes that the data provided is not binding and that IEMCA reserves the right to make changes at any time. It emphasizes that bar length should not exceed the spindle length.
