BAR FEEDERS GENIUS 118

Product catalog summary

Technical Specifications:
The document provides detailed specifications for the Genius 118 bar feeder. Key parameters include a bar diameter range of 1-18 mm, a magazine capacity of 220 mm, and a bar change time of 30 seconds for 3200 mm bars. The feed speed is adjustable up to 500 mm/sec, with a return speed of 1000 mm/sec. The operating voltage is 230/400 volts, requiring a total power of 1.5 KW. The guide channel oil specification is ISO CKB 32, and the system requires compressed air at 6 bar when necessary. The weight varies between 650 Kg and 700 Kg depending on the model.

Innovations and Features:
The bar feeders are designed to renew the small diameter range with innovations such as reduced dimensions, CNC-controlled feed accuracy, and axial displacement. These features allow compatibility with all market-available lathes, ensuring high performance and ease of operation. The system integrates PLC and N/C on a single board for flexibility and ease of use.

Operational Ease:
The operator panel facilitates easy programming, and the removable control panel allows operation without leaving the lathe. The bar magazine can be located on either side, and the guide channel plates are easily adjustable for quick replacement. The bar pusher and remnant removal clamps are also designed for rapid replacement.

Versions and Ordering:
The bar feeder is available in two versions based on the bar pusher feed chain type: chain P= 6 mm for lathes with bar passage > Ø 15 mm, and chain P= 8 mm for lathes with bar passage < Ø 15 mm. Customers must specify the desired version when ordering.

Disclaimer:
The data provided in the catalogue is not binding, and IEMCA reserves the right to make changes at any time without prior notice.

Catalog excerpts

Motorstrasse 4 D - 70499 Stuttgart Phone ++49 711 139991-10 Fax ++49 711 139991-25 E-mail: [email protected] 145 Rou Louis Armand - ZI Des Grands Pres 321-1-967, KASHIWAGAYAEBINA-SHI, KANAGAWA, JAPAN Zip code 243-0402 Phone ++81 462 36 3613 Fax ++81 462 36 3614 E-mail: F - 74300 CLUSES Phone ++33 450 896960 Fax ++33 450 896135 E-mail: [email protected] www.iemca.fr [email protected] > No. 301-1, Dongsing Rd.,Dali City, Taichung County, 412, Taiwan, R.O.C. Phone +886-4-2406-6970 Fax +886-4-2406-6943 E-mail: [email protected] www.gimco.com.tw 9332 FORSYTH PARK DRIVE CHARLOTTE NC 28273 USA Phone ++1 704 602 2145 Fax ++1 704 319 3168 E-mail: [email protected] > rua Melo Palheta 165 CEP 05002030 Sao Paulo - Brasil Phone +55 11 3801 3763 Fax +55 11 3801 3563 E-mail:[email protected] Wu Fang Road, Wu Jiang City,JiangSu Province - PRCPhone +86 512 8155 6988 Fax +86 512 8155 6986 E-mail: [email protected] >

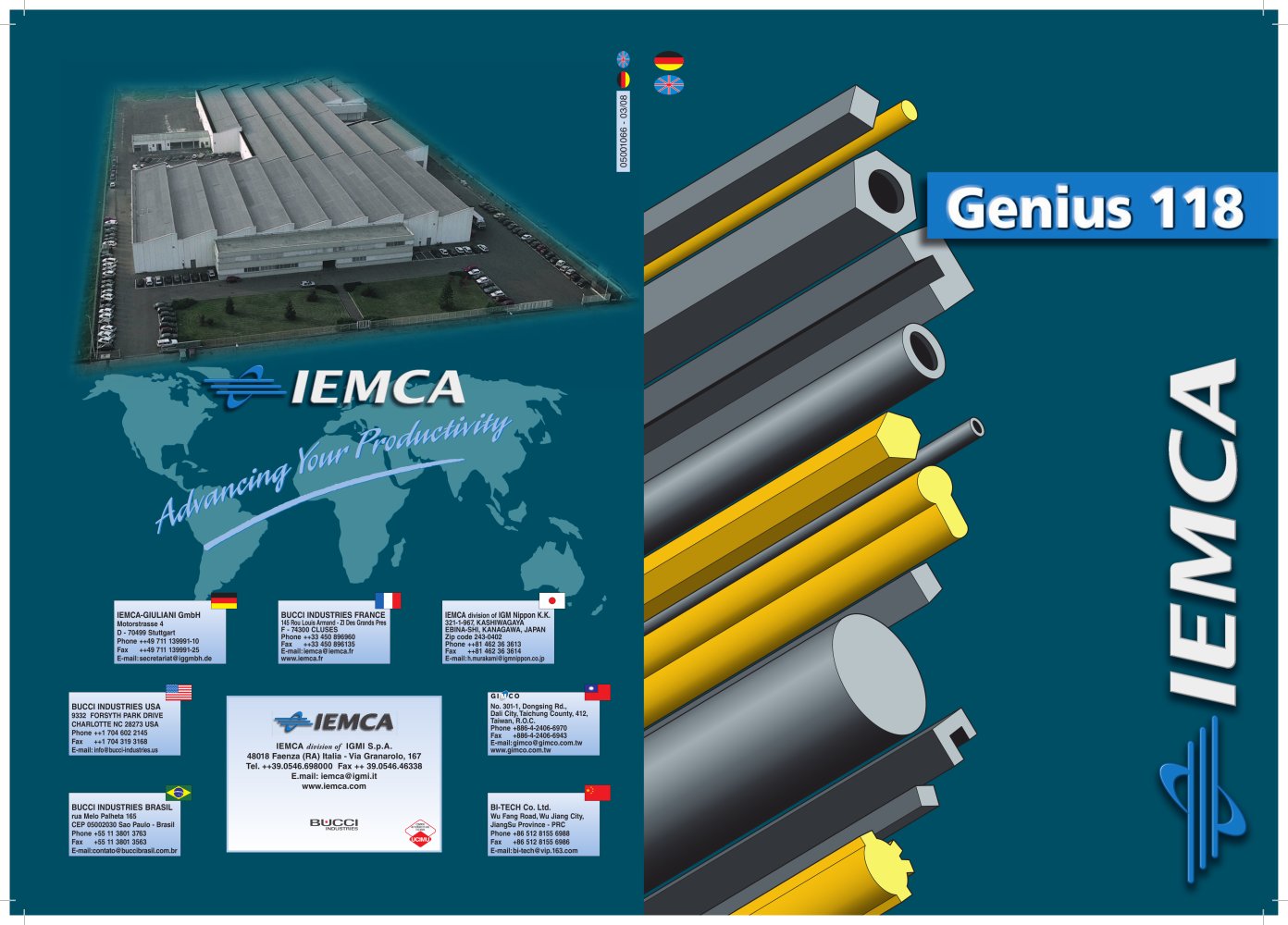

Open the catalog to page 1
