BAR FEEDERS BOSS 332-E

Product catalog summary

Overview: The document provides technical specifications and features of the Boss-E series automatic bar feeders by IEMCA, designed for various lathe models. It highlights the re-engineering of the Boss-E models to meet changing market demands while maintaining the original design's robustness and reliability.

Technical Specifications: The Boss-E series includes models for bar diameters ranging from 3 to 51 mm and bar lengths from 3200 to 4400 mm. The feeders are configurable for all lathe models available on the market. The document specifies the magazine capacity and the required compressed air pressure of 6 bar.

Design and Features: The Boss-E models focus on reducing production downtimes, offering greater operational flexibility, faster bar changeover operations, and simplified change-over procedures. The feeders maintain mechanical ruggedness, ensuring high performance and long-term value.

Accessories: The document lists available accessories for the Boss-E line, including toolboxes for space-efficient storage, genuine IEMCA collets for high performance, and bushes for strength and precision.

Innovations: The document describes new features such as lubricated guide channels, a self-centering bar clamping device, centralized magazine setup, and a front bush holding device for quick changeovers. The bar changeover time is less than 30 seconds for 3-meter bars.

Safety and Reliability: The feeders include a synchronizing unit for precise movement coordination and a telescopic nose for high safety standards in sliding headstock lathe applications.

Catalog excerpts

Graphic-design: Paolo Cannellini - Printed in Italy IEMCA > division of IGMI S.p.A.48018 Faenza (RA) Italia - Via Granarolo, 167Tel. ++39.0546.698000 Fax ++ 39.0546.46338E.mail: [email protected] > 9332 FORSYTH PARK DRIVECHARLOTTENC 28273 USA Phone ++1 704 602 2145 Fax ++1 704 319 3168 No. 301-1 DONGSING Rd. DALI CITY TAICHUNG COUNTY, 412, TAIWAN,R.O.C. Phone + 886-4-2406-6970Fax + 886-4-2406-6943 E-mail: [email protected] E-mail: [email protected] > rua Melo Palheta 165CEP 05002030 Sao Paulo - Brasil Phone +55 11 3801 3763 Fax +55 11 3801 3563 E-mail: [email protected] MOTORSTRASSE 4 D - 70499 STUTTGART Phone ++49 711 139991-10 Fax ++49 711 139991-25 E-mail: [email protected] 145 Rou Louis Armand - ZI Des Grands Pres > F - 74300 CLUSES Phone ++33 450 896960 Fax ++33 450 896135 E-mail: [email protected] www.iemca.fr > Wu Fang Road, Wu Jiang City, JiangSu Province - PRC Tel: + 86 512 8155 6988 Fax: + 86 512 8155 6986 E-mail: [email protected] E-mail: [email protected] >

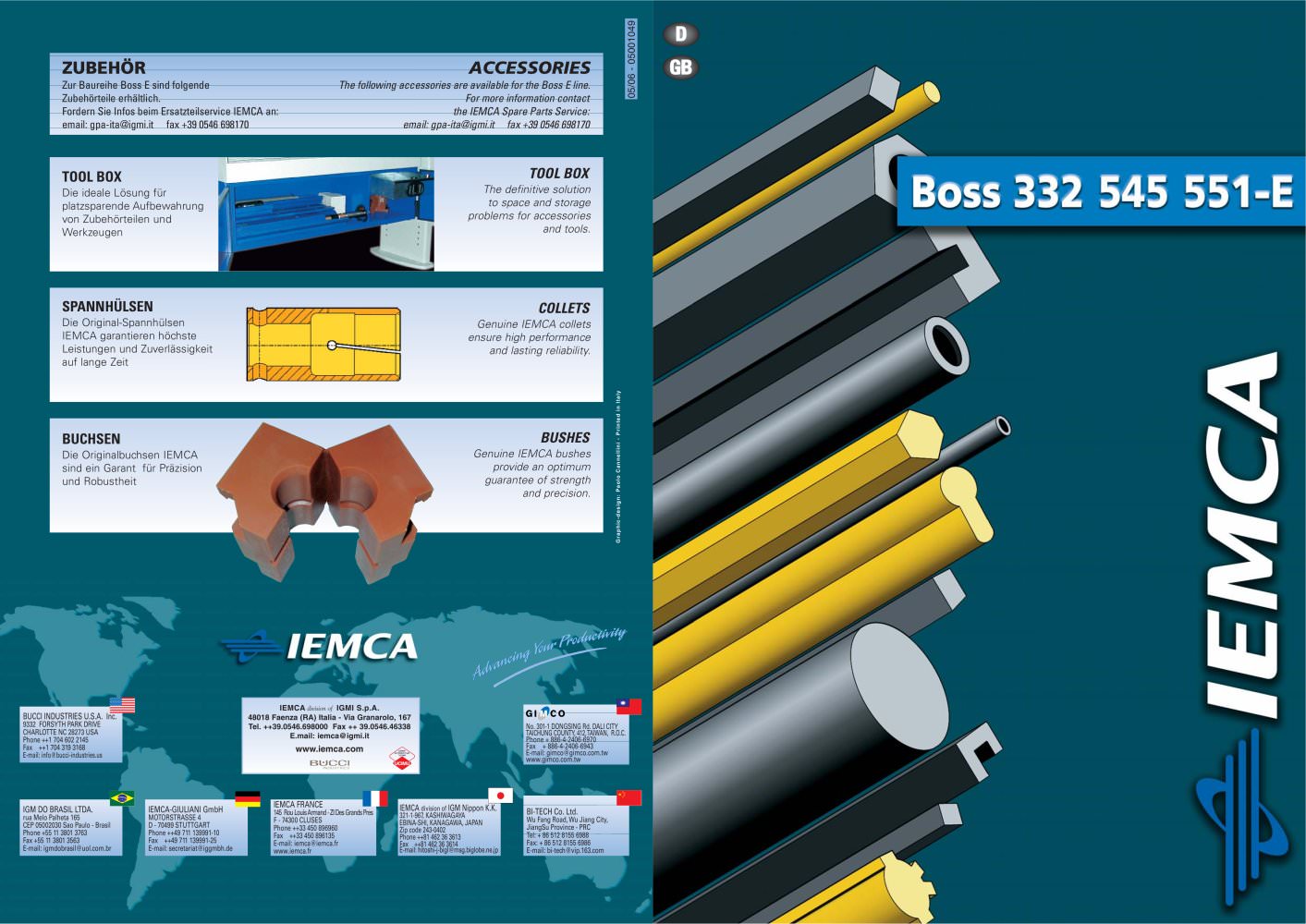

Open the catalog to page 1

Automatisches Lademagazin fr Stangen mit einem Durchmesser zwischen > 3 und 32 mm (Boss 332), ideal fr Langdreher zwischen > : In lged䶤mpfter Ausfhrung, ausgelegt entsprechend den Anforderungen der Stangenbearbeitung (Stangendurch- messer, Stangenprofil, Drehzahlen usw.) - Runder und vollkommen geschlossener Fhrungskanal. Es sind nun 3 Standardbefestigungenerh켤ltlich, z. B. mit Schnellwechselsystem und dem neuartigen "Plug-In" System, das den kompletten Austausch der Fhrungen in weni-ger als 2 Minuten gestattet. Es wird auerdem die konsequente Austauschbarkeit mit den fr쟼heren Fhrungsmodellen...

Open the catalog to page 2

BAR FEEDERS BOSS 332-E

BAR FEEDERS BOSS 332-E
