XFH
XFH
This document provides technical specifications and compliance information for the explosion-proof floodlight, model XFH-70, designed for use in hazardous environments.
Technical Specifications
- Certification: EC type examination certificate INERIS 03ATEX 0093, homologated type AD442005.
- Applicable Zones: Suitable for Zones 1 and 2 (Gas) and Zones 21 and 22 (Dust).
- Gas and Dust Group: II 2 GD.
- Marking: EEx d IIC T4 (T135°C).
- Protection Degree: IP65 as per EN 60529.
- Ambient Temperature Range: -20°C to +40°C.
- Material: Copper-free aluminium alloy, with optional steel or stainless steel on request.
- Finish: Painted in RAL5018 (Blue).
- Lamp Specifications: H3 halogen lamp, 24Vdc, 70W.
Product Versions
- Single floodlight version: XFH-70-1.
- Dual floodlight version: XFH-70-2.
Compliance and Standards
- European Directives: Complies with 94/9/EC (ATEX Directive, March 23, 1994).
- European Standards: EN 50014 (Explosive atmospheres), EN 50018 (Flameproof enclosures), EN 50281-1-1 (Combustible dust).
Additional Information
Continuous product development may lead to changes in specifications without prior notice. The floodlight is designed for marine environments, ensuring durability and safety in explosive atmospheres.
Catalog excerpts

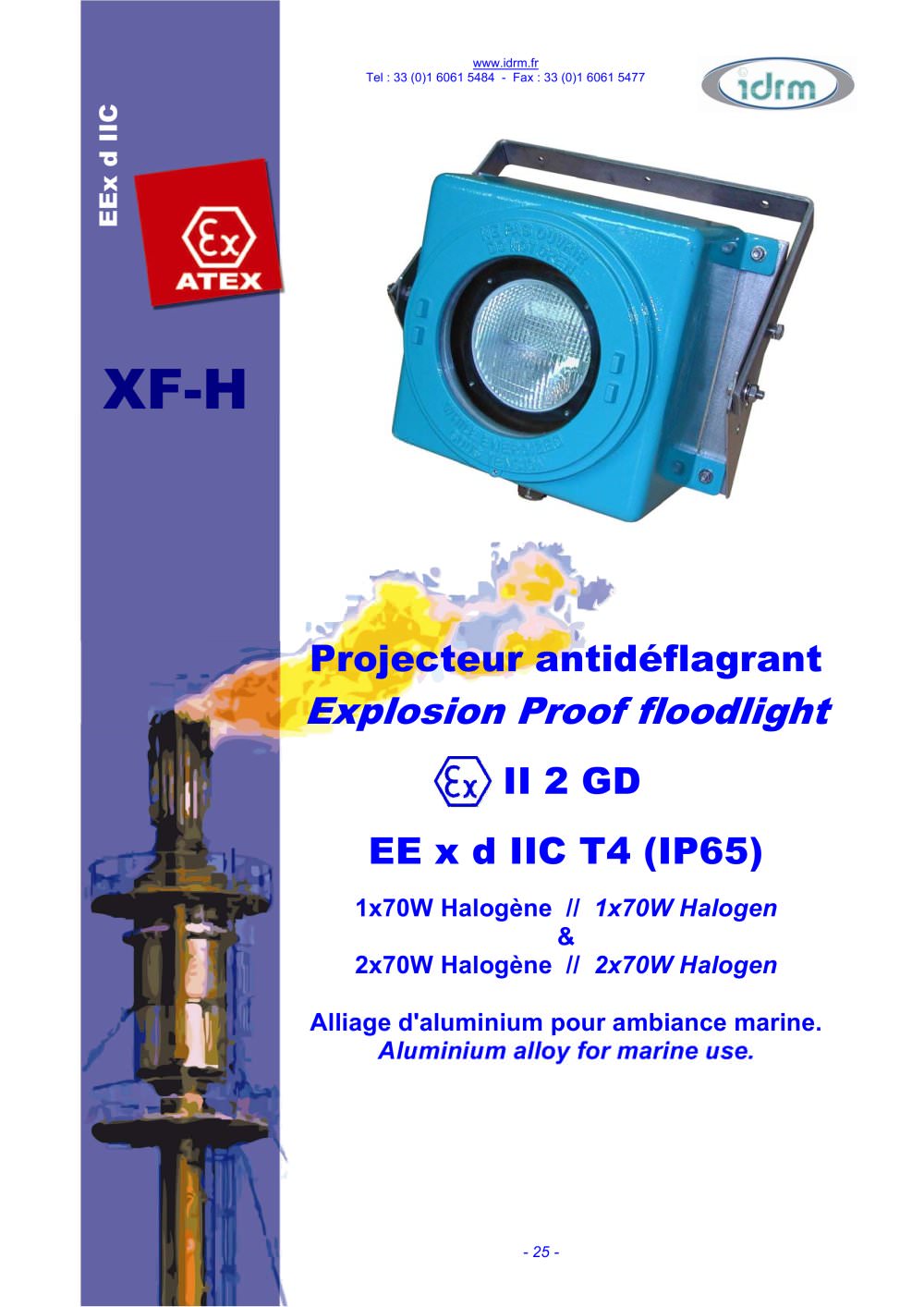

www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 25 - Projecteur antidéflagrant Explosion Proof floodlight II 2 GD EE x d IIC T4 (IP65) 1x70W Halogène // 1x70W Halogen & 2x70W Halogène // 2x70W Halogen Alliage d'aluminium pour ambiance marine. Aluminium alloy for marine use. EEx d IIC XF-H
Open the catalog to page 1
www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 26 - Soucieux d’améliorer nos produits, nous nous réservons le droit de réviser, sans préavis, les caractéristiques de nos produits // Continuous developments may result in specifications changes without notice PROJECTEUR ANTIDEFLAGRANT EXPLOSION-PROOF FLOODLIGHT TYPE : XFH-70 Version 1 projecteur = XFH-70-1 Version 2 projecteurs =XFH-70-2 CARACTERISTIQUES TECHNIQUES Attestation d’examen CE de type : INERIS 03ATEX 0093 Type homologué : AD442005 Zones : 1 et 2 (Gaz) – 21 et 22 (Poussières) Groupe de gaz et de poussières : II 2 GD...
