These enclosures are designed for use in explosive atmospheres, adhering to the II 2 GD / II 2(1) GD standards. They are available in aluminum alloy for marine environments and stainless steel upon request. The maximum size for these enclosures is 300 x 300 x 200 mm.
- Certification: EC type examination certificate INERIS 03ATEX 0093
- Approved Type: AD442…
- Applicable Zones: 1 and 2 (Gas), 21 and 22 (Dust)
- Gas and Dust Group: II 2 GD or II 2(1) GD
- Marking: EEx d IIC T5 or T6, EEx d [ia or ib] IIC T6
- Protection Degree: IP65 (EN 60529)
- Temperature Ratings: T5 = T100°C, T6 = T85°C
- Ambient Temperature Range: –20°C to +40°C
- Material: Copper-free aluminum alloy
- Maximum Electrical Supply: 10,000 V
- Materials: Steel, stainless steel
- Additional Components: Raising tube, cover with glass window
- Temperature Range for IS Interfaces: -20°C to +60°C
- Directive 94/9/EC (ATEX)
- EN 50014: Explosive atmospheres
- EN 50018: Flameproof enclosures
- EN 50281-1-1: Combustible dust
| Type | Dimensions (mm) | Mounting Plate (mm) | Weight (kg) | Max Dissipated Power (W) |
|---|---|---|---|---|
| PCX 1 | 120 x 98 x 170 | 80 x 80 | ~1.6 | T5: 38, T6: 20, T6: 7 |
| PCX 2 | 150 x 126 x 198 | 100 x 100 | ~2.6 | T5: 50, T6: 30, T6: 10 |
| PCX 3 | 174 x 150 x 220 | 120 x 120 | ~3.6 | T5: 60, T6: 40, T6: 11 |
| PCX 4 | 250 x 224 x 330 | 160 x 160 | ~9.5 | T5: 80, T6: 55, T6: 20 |
| PCX 5 | 300 x 274 x 380 | 210 x 210 | ~15 | T5: 120, T6: 80, T6: 22 |
Catalog excerpts

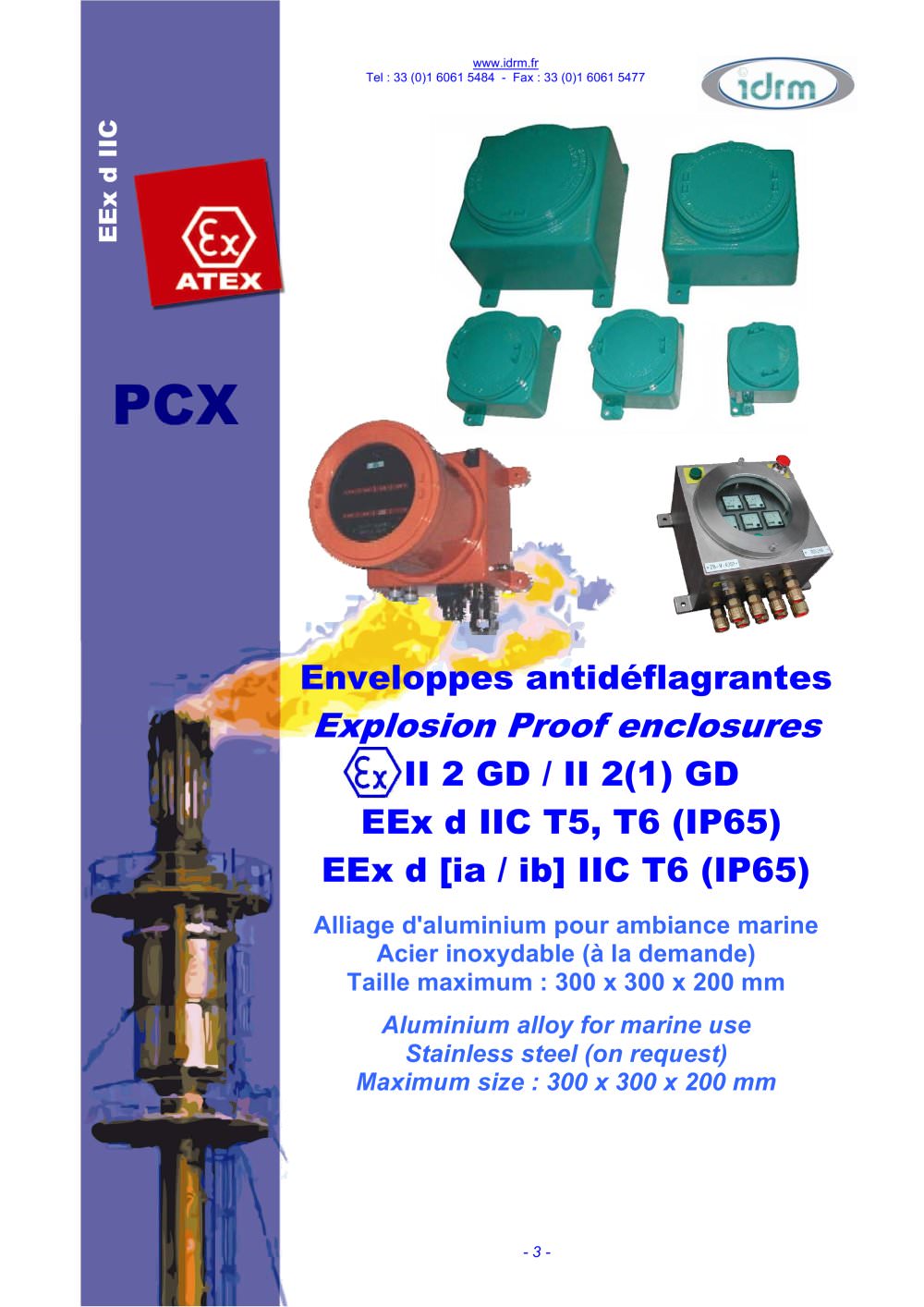

www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 3 - Enveloppes antidéflagrantes Explosion Proof enclosures II 2 GD / II 2(1) GD EEx d IIC T5, T6 (IP65) EEx d [ia / ib] IIC T6 (IP65) Alliage d'aluminium pour ambiance marine Acier inoxydable (à la demande) Taille maximum : 300 x 300 x 200 mm Aluminium alloy for marine use Stainless steel (on request) Maximum size : 300 x 300 x 200 mm EEx d IIC PCX
