LF
LF
- Type: LF-…
- Marking: EEx d IIC T3/T4
- Protection Degree: IP65 (EN 60529)
- Temperature Class: T3 or T4
- Ambient Temperature: -20°C to +40°C
- Material: Copper-free Aluminium Alloy
- Voltage: 110V or 240V
- Painting: RAL5018 (Blue)
- Guard: Galvanized Steel
- Incandescent Light: 100W, 200W, 300W
- Mercury Vapour Light: 250W
- H.P. Sodium Vapour Light: 150W, 250W
- Metal Halide Light: 250W
- EC-type Examination Certificate: CESI 03 ATEX 149
- Approved Types: LFV, LFW, LFWA, LFWE
- Zones: 1 and 2 (Gas), 21 and 22 (Dust)
- Gas and Dust Group: II 2 GD
- Directive 94/9/EC (ATEX)
- EN 50014: Explosive Atmospheres
- EN 50018: Flameproof Enclosures
- EN 50281-1-1: Combustible Dust
- Other power options available on request
- Stainless steel guard available on request
Catalog excerpts

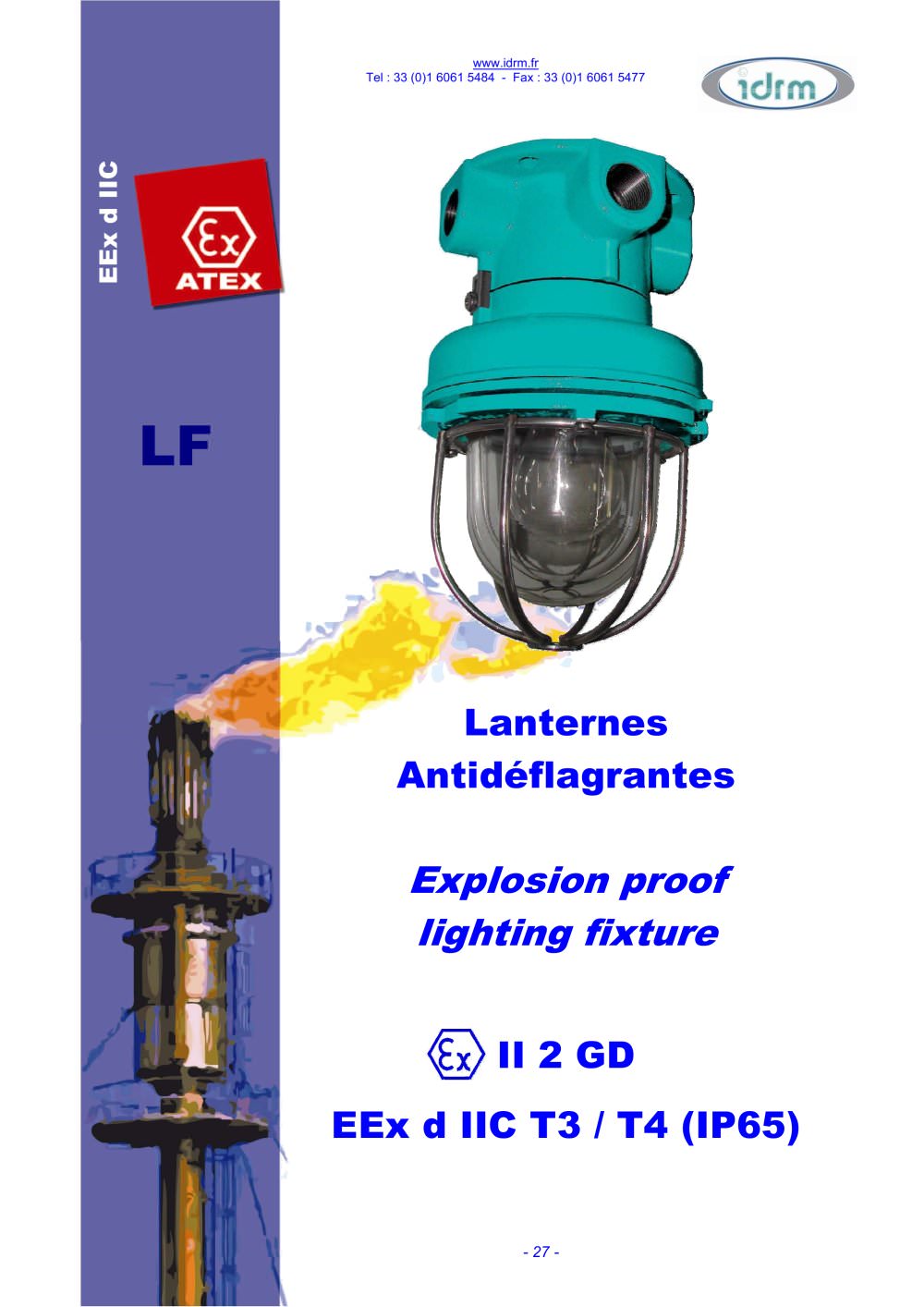

www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 27 - Lanternes Antidéflagrantes Explosion proof lighting fixture II 2 GD EEx d IIC T3 / T4 (IP65) EEx d IIC LF
Open the catalog to page 1
www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 28 - Soucieux d’améliorer nos produits, nous nous réservons le droit de réviser, sans préavis, les caractéristiques de nos produits // Continuous developments may result in specifications changes without notice Lanternes antidéflagrantes Explosion proof lighting fixtures EEx d IIC T3 / T4 (IP65) - TYPE : LF-… Tension Voltage Puissance Power Classe de temperature Temperature class Type Dimensions Poids Weight Type lampe D H P Lamp type Lampe Incandescente // Incandescent light LF-100 I 100 W T4 A Ø 150 250 / 2.5 kg LF-200 I 200 W...
