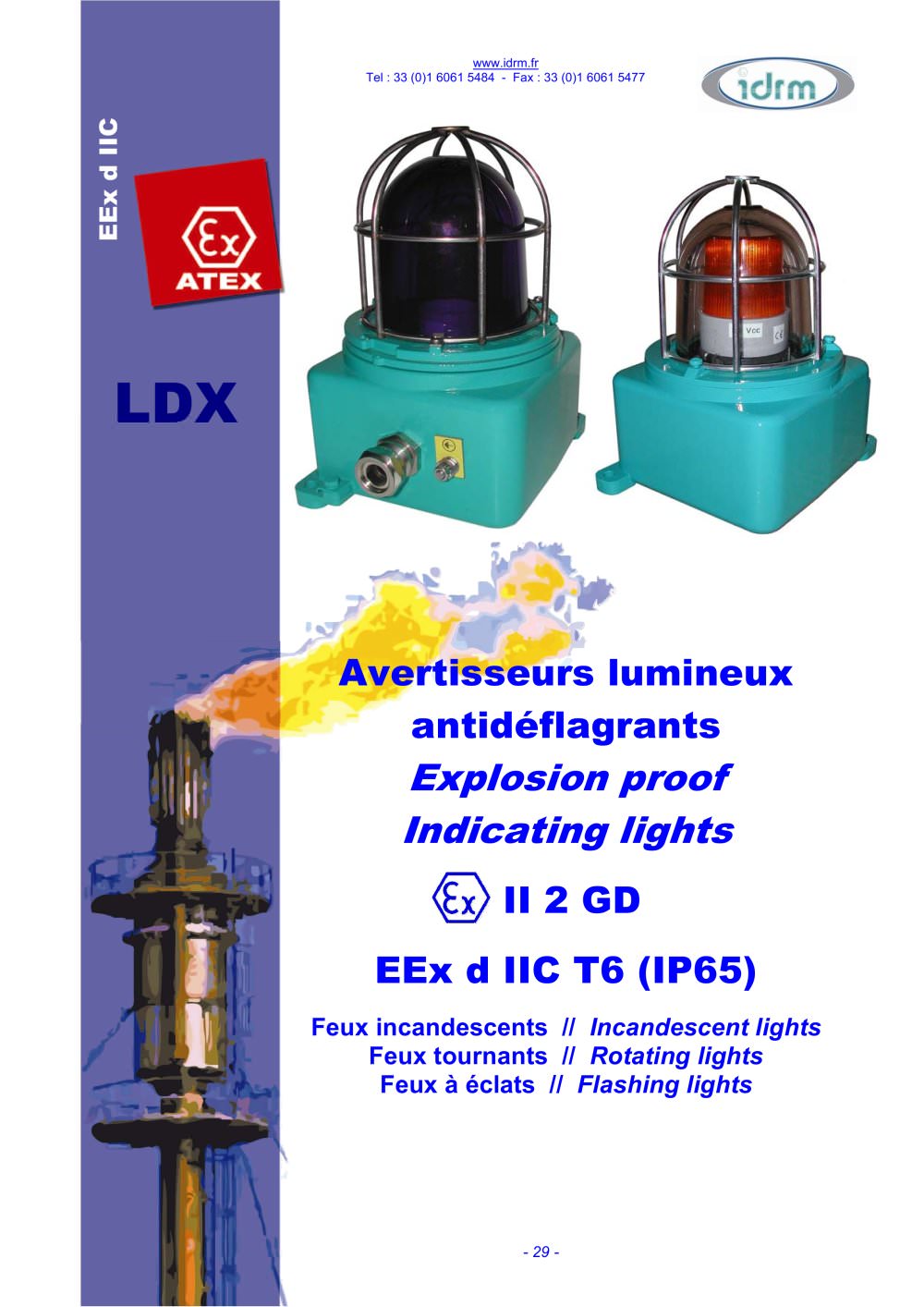

Explosion Proof Indicating Lights

Specifications:
These lights are designed for use in explosive atmospheres, marked as EEx d IIC T6 with a protection degree of IP65. They are suitable for zones 1 and 2 (gas) and zones 21 and 22 (dust). The ambient temperature range is from -20°C to +40°C. The lights are painted in RAL5018 blue and made from a copper-free aluminum alloy, with options for steel or stainless steel bodies.

Types of Lights:
- Incandescent Lights: Available in various voltages (12V, 24V, 48V, 130V, 240V) with E27 lamp type.
- Rotating Lights: Available in voltages from 24V to 230V with Ba15d or E14 lamp types.
- Flashing Lights (5 joules and 24 joules): Available in voltages from 12V to 230V using XENON technology.

Technical Characteristics:
- EC type examination certificate: INERIS 03ATEX 0093
- Type approved: AD442002 and AD442003
- Gas and dust group: II 2 GD
- Degree of protection: IP65 (EN 60529) T85°C
- Earth connection: M6 stainless steel
- Guard: Galvanized steel, with stainless steel option
- Cable entry: M20 unarmoured cable Ø from 3 to 15mm

European Union Directives:
- 94/9/EC (March 23, 1994) – ATEX

European Union Standards:
- EN 50014: Explosive atmospheres
- EN 50018: Flameproof enclosures
- EN 50281-1-1: Combustible dust
