BJX
BJX
These enclosures are designed for increased safety in explosive atmospheres, compliant with ATEX directives. They are available in two materials: aluminium (BJX0) and polyester (BJX1), each offering different dimensions and mounting options.
Specifications
- Certification: EC type examination certificate LCIE 03ATEX6069 X
- Approved Types: AD5310 (aluminium), AD5311 (polyester)
- Zones: Suitable for Zones 1 and 2 (Gas), 21 and 22 (Dust)
- Gas and Dust Group: II 2 GD
- Protection Degree: IP65 (EN 60529)
- Ambient Temperature: Standard -20°C to +40°C, Optional -30°C to +100°C with silicone washer
- Maximum Voltage: 750 Volts
- Maximum Intensity: 500 A
Materials and Dimensions
- Aluminium: RAL 7001 (Grey)
- Polyester: RAL 9005 (Black)
- Various dimensions available, detailed in the product chart
European Directives and Standards
- Directive 94/9/EC (ATEX)
- Standards: EN 50014, EN 50018, EN 50019, EN 50020, EN 50028, EN 50281-1-1
Additional Information
Continuous product development may lead to changes in specifications without notice. Products marked in blue are currently in stock.
Catalog excerpts

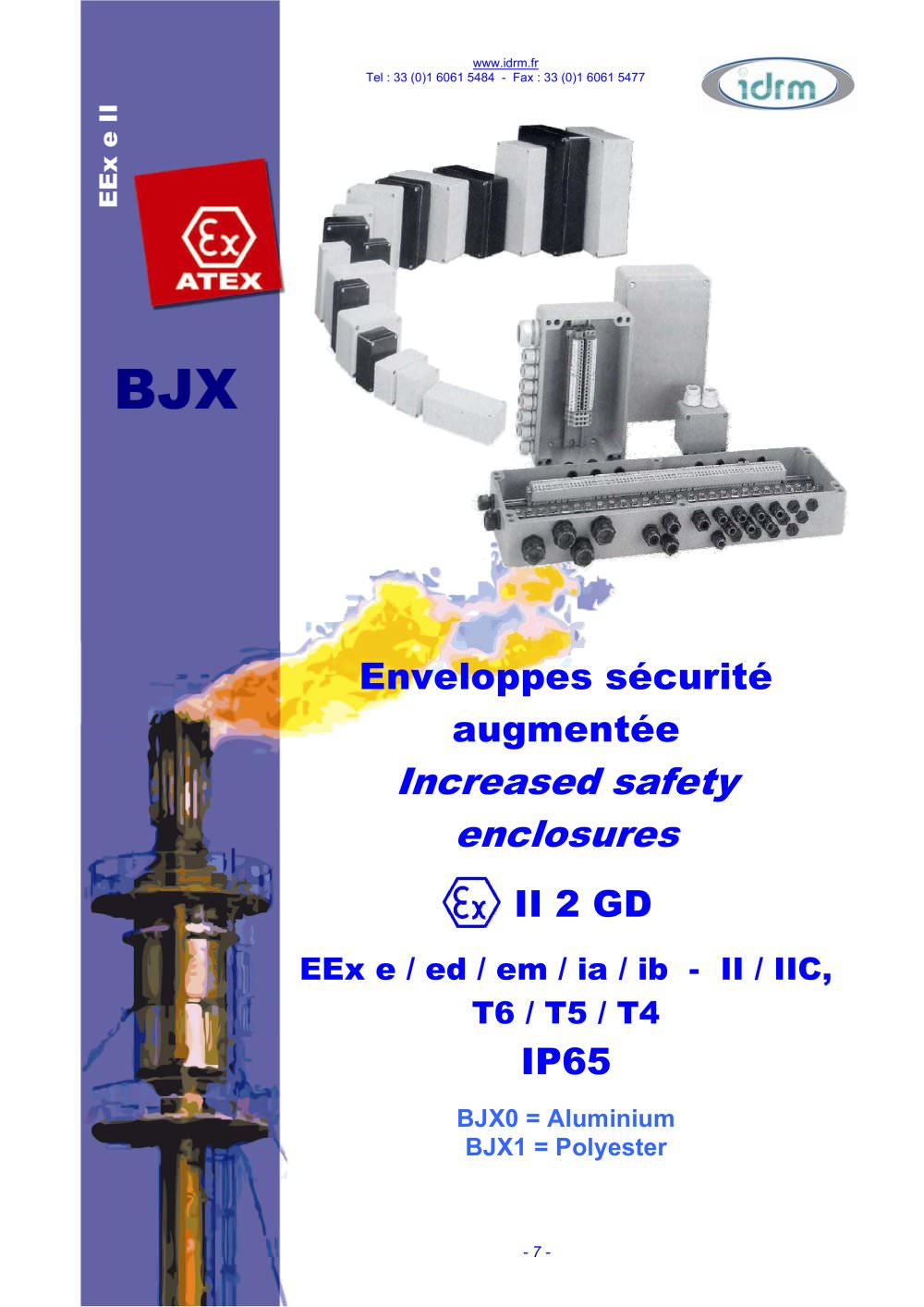

www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 7 - Enveloppes sécurité augmentée Increased safety enclosures II 2 GD EEx e / ed / em / ia / ib - II / IIC, T6 / T5 / T4 IP65 BJX0 = Aluminium BJX1 = Polyester EEx e II BJX
Open the catalog to page 1
www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 8 - Soucieux d’améliorer nos produits, nous nous réservons le droit de réviser, sans préavis, les caractéristiques de nos produits // Continuous developments may result in specifications changes without notice ENVELOPPES SECURITE AUGMENTEE INCREASED SAFETY ENCLOSURES EEx e / ed / em / ia / ib - II / IIC, T6 / T5 / T4 IP65 TYPE: BJX0 (aluminium) – BJX1 (polyester) Aluminium Polyester Type Dimensions (mm) Fixation Type Dimensions (mm) A x B x C A x B x C Fixation BJX0 01 58 x 64 x 36 46 x 36 BJX1 01 80 x 75 x 55 68 x 45 BJX0 02 98...
