BCV-113
BCV-113
- Certification: EC type examination certificate INERIS 02ATEX0048.
- Approved Type: BCV113.
- Applicable Zones: 1 and 2 for gas, 21 and 22 for dust.
- Gas and Dust Group: II 2 GD.
- Marking: Ex d IIC T6, Ex tD A21 IP66 T85°C.
- Protection Degree: IP66 as per EN 60529.
- Ambient Temperature Range: -20°C to +40°C.
- Material: Stainless steel 316L.
- Maximal Voltage: 240 Volts.
- Maximal Dissipated Power: 20 W.
- Threaded Entries: 2x 1/2"NPT, with a maximum of 4 cable entries available on request.
- Equipment: Includes camera support.
- 94/9/EC (ATEX) dated March 23, 1994.
- EN 60079-0: General requirements for gas.
- EN 60079-1: Flameproof enclosures "d".
- EN 61241-0: General requirements for dust.
- EN 61241-1: Protection by enclosures "tD".
Catalog excerpts

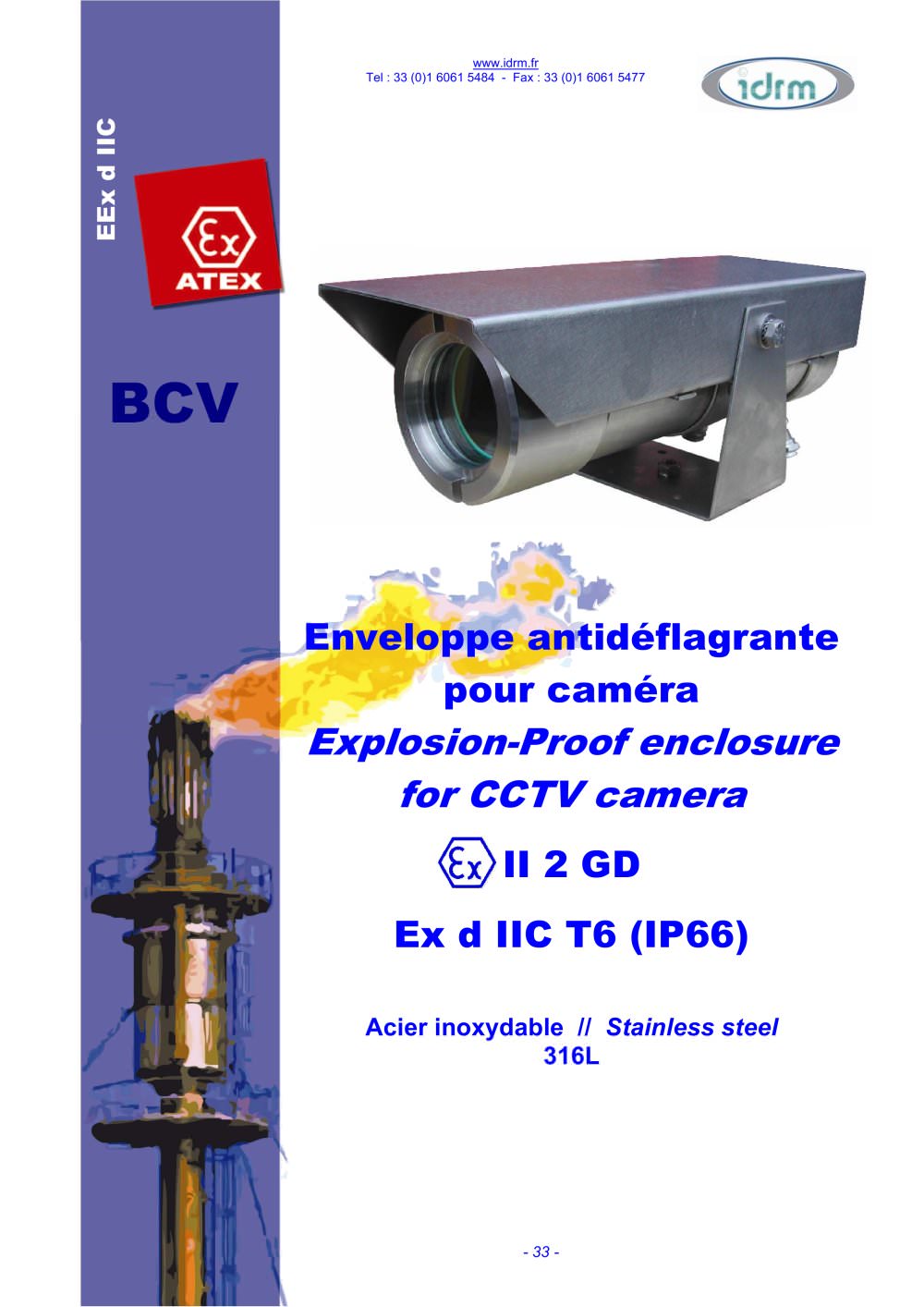

www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 33 - Enveloppe antidéflagrante pour caméra Explosion-Proof enclosure for CCTV camera II 2 GD Ex d IIC T6 (IP66) Acier inoxydable // Stainless steel 316L EEx d IIC BCV
Open the catalog to page 1
www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 34 - Soucieux d’améliorer nos produits, nous nous réservons le droit de réviser, sans préavis, les caractéristiques de nos produits // Continuous developments may result in specifications changes without notice ENVELOPPE ANTIDEFLAGRANTE POUR CAMERA EXPLOSION-PROOF ENCLOSURE FOR CCTV CAMERA Ex d IIC T6 (IP66) TYPE : BCV CARACTERISTIQUES TECHNIQUES Attestation d’examen CE de type : INERIS 02ATEX0048 Type homologué BCV113 Zones : 1 et 2 (Gaz) – 21 et 22 (Poussières) Groupe de gaz et de poussières : II 2 GD Marquage : Ex d IIC T6, Ex...
