AP
AP
- Certification: EC type examination certificate INERIS 03ATEX 0034.
- Type: AP . . - . . – 6, equipped with AR21 pressurization unit.
- Zones: Suitable for Zones 1 and 2 (Gas).
- Gas Group: II 2 G.
- Marking: EEx p II T4.
- Ambient Temperature: -20°C to +40°C, with heater option available.
- Material: Stainless steel 316L, painted steel available on request.
- Maximal Electrical Supply: 500 V.
- Equipment: Includes 100mm pedestal and eye bolts.
- Glass Window: Available on request, size varies by cabinet type.
- Maximal Dissipated Power: Refer to provided chart for specifics.
- Cabinet Sizes: Various configurations available, including single and double door options with different height and width specifications.
- Directive 94/9/EC (ATEX) for equipment intended for use in potentially explosive atmospheres.
- Standards: EN 50014 for explosive atmospheres and EN 50016 for pressurized apparatus.
- Continuous product development may lead to specification changes without notice.
- Maximum size for glass windows varies based on cabinet door width.
Catalog excerpts

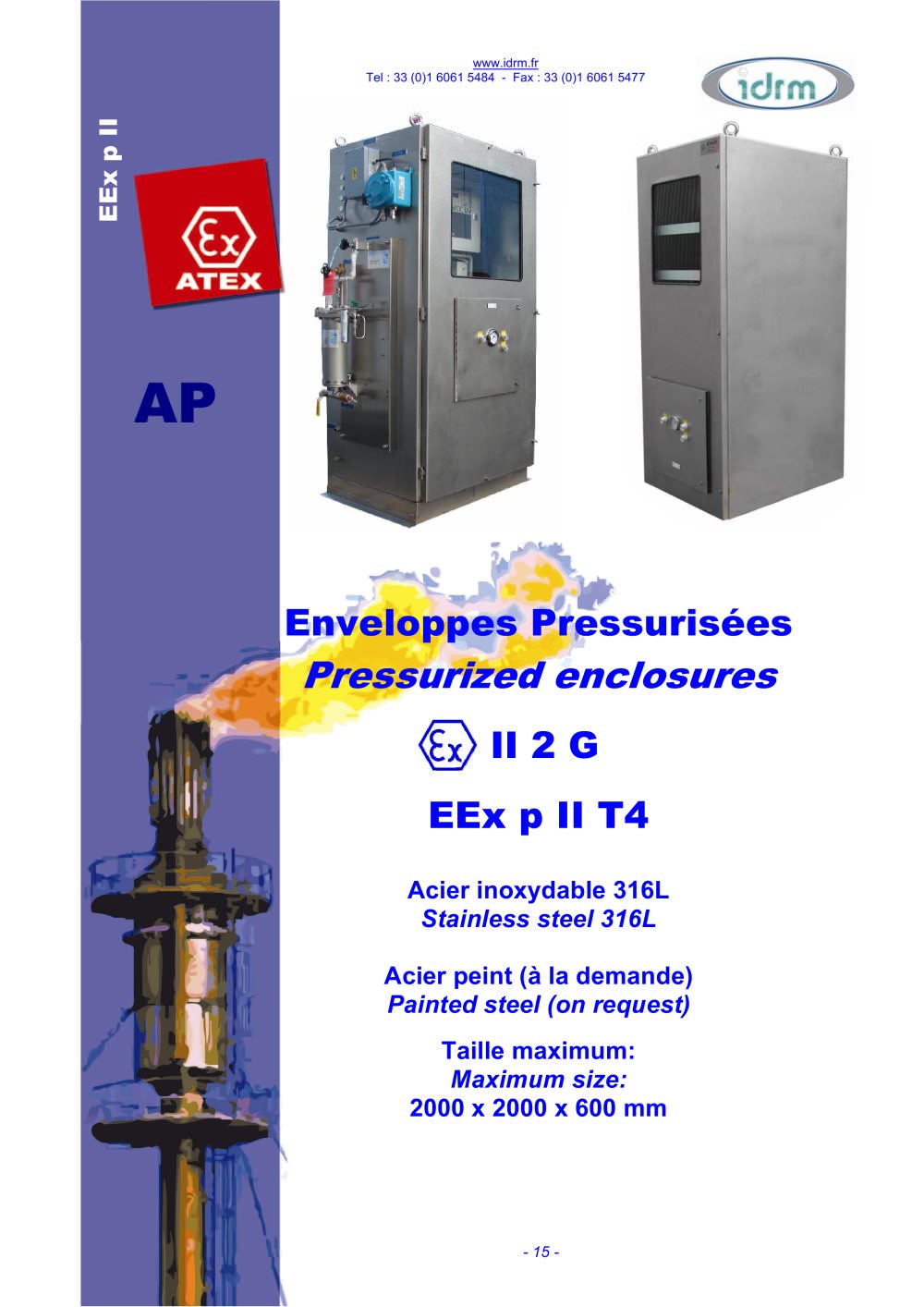

www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 15 - Enveloppes Pressurisées Pressurized enclosures II 2 G EEx p II T4 Acier inoxydable 316L Stainless steel 316L Acier peint (à la demande) Painted steel (on request) Taille maximum: Maximum size: 2000 x 2000 x 600 mm EEx p II AP
Open the catalog to page 1
www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 16 - Soucieux d’améliorer nos produits, nous nous réservons le droit de réviser, sans préavis, les caractéristiques de nos produits // Continuous developments may result in specifications changes without notice ENVELOPPES PRESSURISEES PRESSURIZED ENCLOSURES EEx p II T4 TYPE : AP . . - . . - 6 Armoire 1 porte (prof: 600) Armoire 2 portes (prof: 600) Cabinet 1 door (depth: 600) Cabinet 2 doors (depth: 600) Type Hauteur Largeur Watts Type Hauteur Largeur Watts Height Width maximum Height Width maximum AP-16-6-6 1600 600 243 AP-16-12-6...
