AD432
AD432
This document provides technical specifications and details for the AD432 flame detector, designed for use in hazardous environments. The device is housed in explosion-proof enclosures suitable for gas and dust zones.
Specifications
- Explosion-proof enclosures: Ex d IIC T5, T6 (IP65)
- Material: Aluminium alloy for marine use, with options for stainless steel or bronze on request
- Maximum dissipated power: 7 Watts for AD432 001 and 12 Watts for AD432 002
- Ambient temperature range: -20°C to +40°C
- Protection degree: IP65, with specific temperature ratings for T5 and T6
- Electrical supply: Up to 1000 V
Technical Characteristics
- EC type examination certificate: INERIS 03ATEX 0158X
- Zones: 1 and 2 for gas, 21 and 22 for dust
- Marking: Ex d IIC T5 or T6, Ex tD A21 IP66 T85°C or T100°C
- Painting: RAL5018 (Blue)
Optional Features
- Materials: Steel, stainless steel, bronze
- Equipment options: Push button, pilot light, pneumatic crossing, rotating axis, cable gland
- Sight glass options: Glass or quartz
- Special enclosure for sparking plugs 10kV (AD432002)
European Directives and Standards
- 94/9/EC (ATEX directive)
- EN 60079-0 and EN 60079-1 for gas
- EN 61241-0 and EN 61241-1 for dust
Catalog excerpts

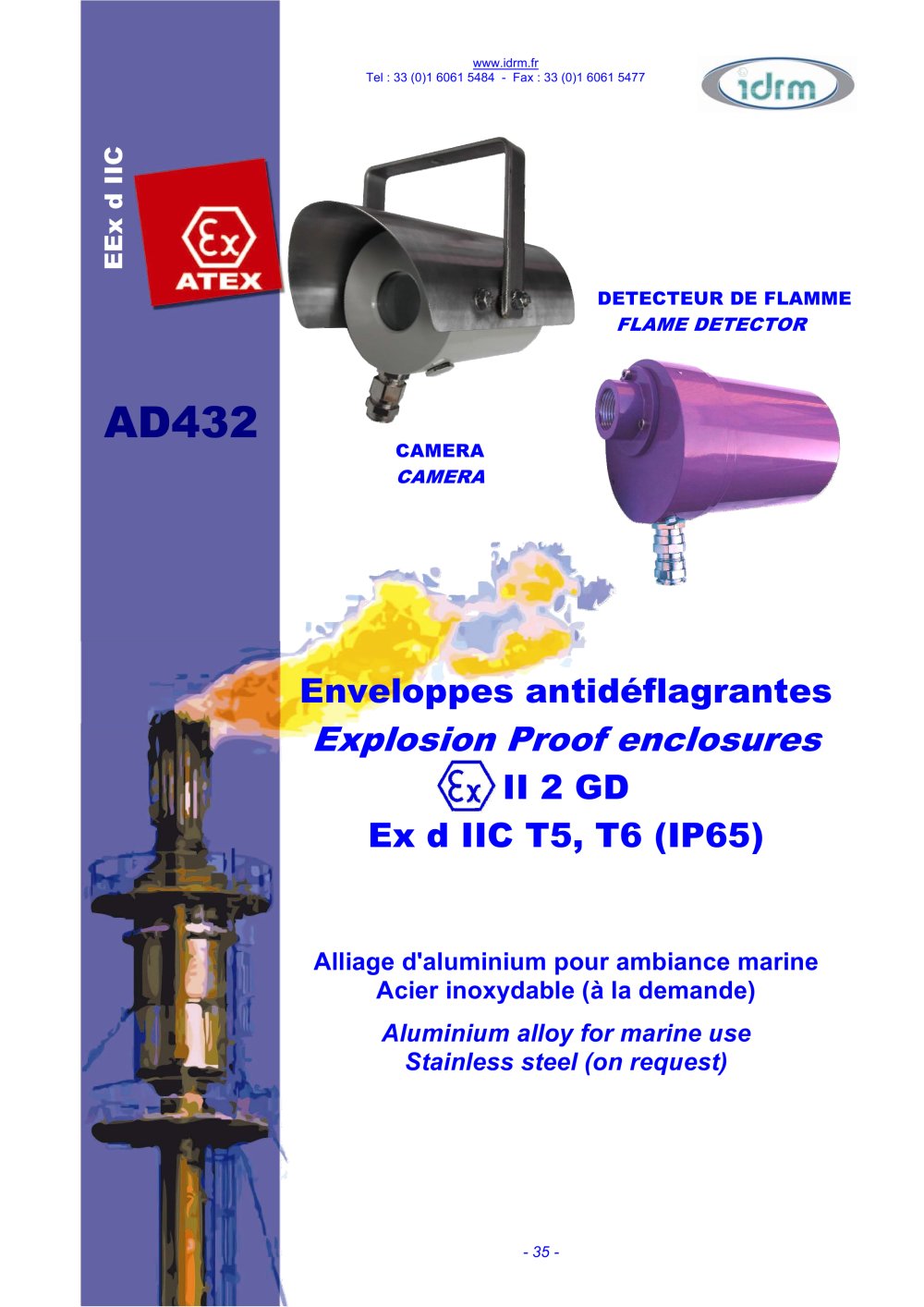

www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 35 - DETECTEUR DE FLAMME FLAME DETECTOR CAMERA CAMERA Enveloppes antidéflagrantes Explosion Proof enclosures II 2 GD Ex d IIC T5, T6 (IP65) Alliage d'aluminium pour ambiance marine Acier inoxydable (à la demande) Aluminium alloy for marine use Stainless steel (on request) EEx d IIC AD432
Open the catalog to page 1
www.idrm.fr Tel : 33 (0)1 6061 5484 - Fax : 33 (0)1 6061 5477 - 36 - Soucieux d’améliorer nos produits, nous nous réservons le droit de réviser, sans préavis, les caractéristiques de nos produits // Continuous developments may result in specifications changes without notice ENVELOPPES ANTIDEFLAGRANTES EXPLOSION-PROOF ENCLOSURES Ex d IIC T5, T6 (IP65) TYPE : AD432 001 & 002 TYPE Dimensions Puissances dissipées max. Maximum dissipated power A B C D E F T6 T5 AD432 001 ~ 140 Ø 105 ~ 120 Ø 78 Ø 86 M88x2 7 Watts 10 Watts AD432 002 ~ 187 Ø 125 ~ 167 Ø 95 Ø 103 M105x2 12 Watts 18 Watts CARACTERISTIQUES...
